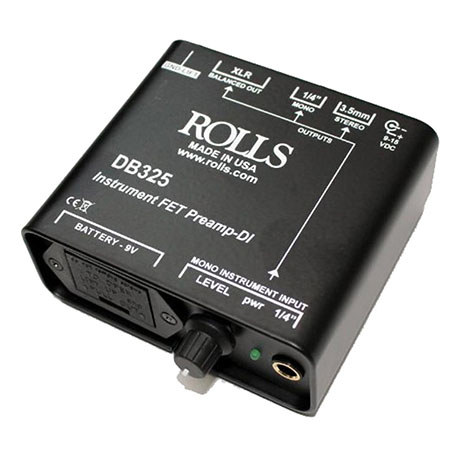

Rolls DB325 Insrument FET Preamp DI
See all Rolls items

Rolls DB325 Insrument FET Preamp DI, 4 Meg Ohms Input Impedance, 20-20kHz Frequency Response

SKU: ROLDB325
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Rolls DB425 4-Channel Passive Direct Interface, Black
$349.00
$269.00
undefined undefined: Picture 1 regular
Rolls HR187 Stereo Professional Audio Bluetooth Direct Box
$239.00
$169.00
undefined undefined: Picture 1 regular
Rolls DB14B A/V Presenter Direct Box/Signal Separator
$89.00
$69.00
undefined undefined: Picture 1 regular
Rolls DB24 Stereo Direct Interface with Dual Channel
$139.00
$99.00
undefined undefined: Picture 1 regular
Rolls HR341 Signal Processor for Vocals and Acoustic Guitars
$275.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Rolls DB325 Specifications

  • Input Impedance

    4 Meg Ohms

  • Frequency Response

    20 - 20kHz +/- 3 dB

  • Output Impedance

    1K (XLR 600 Ohms)

  • Max Output Level

    +8 dBm (XLR -12 dBm)

  • Max Input Level

    -13dB

  • Gain

    20 dB, (XLR 0 dB)

  • Signal To Noise

    106 dB

  • THD

    < .570%

  • Connectors

    1; XLR Female 1; 1/8" (3.5mm) TRS 2 ea; 1/4" TS

  • Dimensions (W x H x D)

    4 x 1.63 x 3.5" / 10.16 x 4.14 x 8.89cm

  • Weight

    1.1 lbs / 0.49 kg

About Rolls DB325

The Rolls DB325 is an instrument active (powered) direct box. It is designed to take a guitar, bass or keyboard and plug it directly into a computer, laptop or tablet. It can also be used to boost the signal of an instrument to be plugged in to just about anything. It is a cleanly designed simple, high end all class, a way to get your instrument into different devices. It works great with piezo pickups. It will also work to add more gain to you guitar tube amp.

Rolls DB325 Features

  • Mono 1/4" Input with level control
  • 3.5mm (Stereo) and 1/4" (MONO) outputs
  • XLR Balanced output
  • 9V Battery or Included AC adapter operation
  • Class A Design no feedback

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Mono 1/4" Input
  • 3.5mm (Stereo) and 1/4" (MONO) outputs
  • XLR Balanced output
  • 9V Battery or Included AC adapter operation
  • Class A Design no feedback
