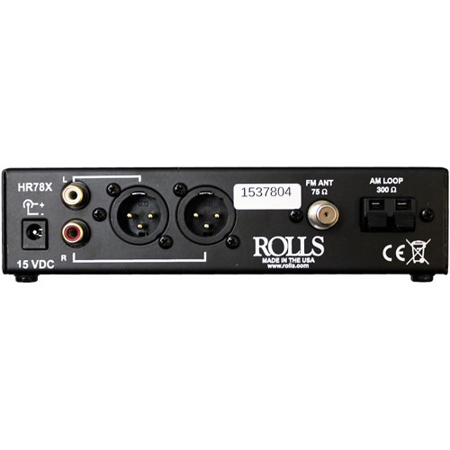

Rolls HR78X AM/FM Digital Tuner with XLR Output
See all Rolls items

Rolls HR78X AM/FM Digital Tuner with XLR Output

SKU: ROLHR78X

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Rolls HR78X Specifications

  • FM: Intermediate Frequency

    10.7MHz +/- 0.3

  • FM: Tuning Range

    87.5 - 108MHz

  • FM: 30dB Quieting Sensitivity

    28dB

  • FM: IF Rejection 87.9MHz

    50 - 56dB

  • FM: Image Rejection 105.9MHz

    20 - 26dB

  • FM: 3dB Limiting Sensitivity

    28 - 35dB

  • FM: THD 1mV Input

    0.5 - 2 %

  • FM: Auto Tuning Sensitivity 97.9MHz

    25 - 30dB

  • AM Suppression

    26 - 32dB

  • AM: Intermediate Frequency

    450kHz +/- 5

  • AM: Tuning Range

    US: 520 - 1710kHz

  • AM: International

    531 - 1602kHz

  • AM: 20dB Quieting Sensitivity

    58dB

  • AM: IF Rejection 603kHz

    25 - 32dB

  • AM: Image Rejection 1404kHz

    32 - 38dB

  • AM: Auto Tuning Sensitivity 999kHz

    28 - 35dB

  • AM: Max Output

    At 1kHz 0.5V +/- 0.05V

  • Current Drain

    190MA nominal FM 15V DC

  • Supply Voltage

    12-15 VDC (Rolls Model PS27s)

  • Dimensions (W x D x H)

    190 x 185 x 42.5mm / 7.48 x 7.28 x 1.67"

  • Weight

    3lbs / 1.36kg

  • UPC Code

    675889078107

About Rolls HR78X

The ROLLS HR78x is a PLL synthesized digital AM/FM tuner in a feature-packed half-rack chassis. The unit is ideal for replacing analog tuners and where a small digital tuner is desired. The unit ships with FM and AM antennas and the 1/8" output has sufficient levels to drive a pair of headphones. Up to two HR78x units may be rack mounted in a single standard 1U rack space, the Rolls URT5 (Universal Rack Tray) or the RMS270 Rack Module System.

Rolls HR78X Features

  • Retains presets when power is off
  • 20 presets, 10 FM and 10 AM
  • Large LCD digital display
  • Output Level control
  • Auto search up and down
  • US or International AM frequency centers
  • XLR and 1/8" (3.5mm) Outputs
  • FM stereo or mono operation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Retains presets when power is off
  • 20 presets, 10 FM and 10 AM
  • Large LCD digital display
  • Output Level control
  • Auto search up and down
  • US or International AM frequency centers

What's in the box:

  • Rolls HR78X AM/FM Digital Tuner with XLR Output
  • 75Ohm FM Antenna
  • 300Ohm AM Loop Antenna
  • Rolls 90 Day Parts and Labor Warranty
