Rolls MX124 Specifications

  • Input Impedance

    600 Ohms

  • Output Impedance

    XLR 600 Ohms, 1/4" and 1/8" 10 Ohms

  • THD + Noise

    0.02%

  • S/N Ratio

    84 dB

  • Frequency Response

    25 Hz - 16 kHz (+0 / -3 dB)

  • Max Output Level

    + 14 dB

  • Max Input Level

    -14 dB

  • Max Gain

    +55 dB

  • Low Cut

    -3 dB @ 100 Hz

  • Current Draw

    30 mA

  • Phantom Power

    +18 VDC

  • Connectors

    4 Female XLR, 2 Male XLR, 1 1/4" TRS, 1: 1/8" (3.5mm) DC Power Jack (5.5 X 2.1 mm tip negative)

  • Dimensions (W x D x H)

    6.3" x 3.7" x 2.3" / 16 x 9.39 x 5.84 cm

  • Weight

    1.5 lbs / 0.68 kg

  • UPC Code

    675889012408

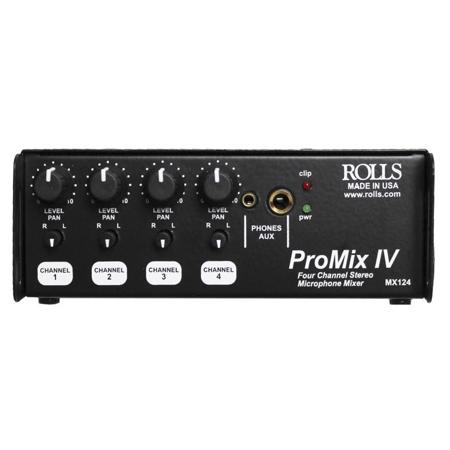

About Rolls MX124

The Rolls MX5124 Pro-MixIV mixes 4 microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power and Low Cut switches, a Level control and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator and Power switch. The unit is also powered by two 9-Volt alkaline batteries.

Rolls MX124 Features

  • Mixes four microphones to stereo XLR outputs
  • Output level controls for mic or line-level output
  • Transformer isolated outputs
  • Phantom Power and Low-Cut switches for each Mic input
  • Battery and AC powered
  • 1/4" and 1/8" TRS stereo Phone/Aux Outputs
