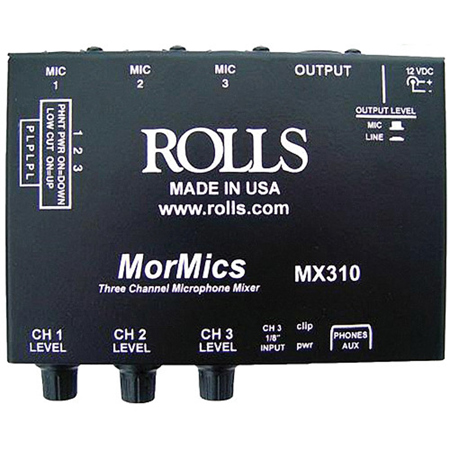

Rolls MX310 MorMics 3 Channel Mic Mixer/Combiner
Rolls MX310: Picture 1 thumbnail
Rolls MX310: Picture 2 thumbnail
Rolls MX310: Picture 3 thumbnail
See all Rolls items
25% Off

Rolls MX310 MorMics 3 Channel Mic Mixer/Combiner

SKU: ROLMX310 MFR: MX310
Be the first to review this item1 question, 3 answers
$119.00
$159.00
Save: $40 (25%)
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this low-noise Rolls mixer, perfect for clear audio.
  • Enjoy versatile connectivity with 3 XLR mic inputs on this compact audio mixer.
  • Optimize your sound with precise EQ control, ensuring balanced audio for any recording.
  • Use the USB interface for seamless integration, making recording a breeze with this mixer.
  • Durable build guarantees long-lasting performance, ideal for both studio and live sound.
  • Phantom power enabled for condenser mics, expanding your recording possibilities on this mixer.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : What do the Low Cut Switches do? When the line/mic switch is in (line) what does do?SCOTT M : Line level inputs are generally stronger signals. Microphone input signals..not so much. Setting the switch to 'Line' will cause the input to be amplified less, or not at all, as opposed to a microphone input...which needs more boost at the input point to sound as loud as a line level signal.SCOTT M : Low-cut switches greatly reduce or eliminate the low-frequency portion of the input. This may be used to eliminate rumble-like noise from mics.ANDREW R : Low cut filters are used to reduce (cut) low frequency hum or rumble that may be heard during recording. "Line" refers to "line level" input and is used when connecting devices that produce line level audio output.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Rolls MX310 Specifications

  • Connectors

    3 x XLR Mic Inputs
    1 x XLR Mic/Line Output
    1 x 3.5mm Input
    1 x 3.5mm Output

  • Controls

    3 x Level Controls
    6 x Phantom/Low Cut Switches
    1 x Mic/Line Output Selector

  • Indicators

    1 x Green Power LED
    1 x Red Clip LED

  • Bandwidth

    20Hz - 20kHz

  • Input Impedance

    600 Ohms

  • Output Impedance

    600 Ohms

  • Total Harmonic Distortion (THD)

    0.05% Typical

  • Voltage Gain

    50dB Line, 10dB Mic

  • Power Supply Voltage

    16VDC Max (12VDC Power Supply Included)

  • Dimensions (W x D x H)

    5.25 x 3.75 x 1.5" / 133 x 95 x 38 mm

  • Weight

    1 lb / 0.45 kg

  • UPC Code

    675889031003

About Rolls MX310

An essential tool for audio professionals, the Rolls MX310 MorMics 3 Channel Mic Mixer/Combiner is engineered to deliver high-quality, clear, and consistent sound. This durable, all-metal chassis mixer is designed to withstand the rigors of both studio and live performance environments, ensuring reliable operation for years to come.

The MX310 boasts three mono channels, each with its own switchable phantom power, allowing for the use of condenser microphones with ease. Additionally, each channel is equipped with an individually switchable low cut filter, providing precise control over the audio mix and eliminating unwanted low-frequency noise for a cleaner sound.

For real-time audio monitoring, the MX310 features a convenient 3.5mm (1/8") headphone output jack. This professional-grade mixer also offers the versatility to adapt to various audio setups, thanks to its switchable output XLR that can toggle between mic or line level output, ensuring compatibility with a wide range of equipment.

Designed for seamless integration into any audio system, the MX310 includes bottom mounts for secure, permanent installations. The unit is complemented by an included 12 VDC external power supply, guaranteeing a steady and uninterrupted audio experience.

Whether you're mixing for live performances, recording in a studio, or setting up a broadcast, the Rolls MX310 MorMics 3 Channel Mic Mixer/Combiner is a versatile and professional choice that promises to enhance your audio mixing capabilities.

Rolls MX310 Features

  • Compact and durable metal chassis
  • There are 3 XLR mono mic inputs, each with its own level control, switchable phantom power and a low cut filter
  • The mic/line switchable XLR output provides excellent connection versatility
  • The 3.5mm stereo aux input allows you to connect a CD player, MP3 player, AM/FM tuner and more, while the 3.5mm stereo output provides convenient monitoring via headphones, compact speakers, etc
  • The mixer has bottom mounts for permanent installations and the required 12VDC power supply is included for operation

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Achieve pristine sound quality with this low-noise Rolls mixer, perfect for clear audio.
  • Enjoy versatile connectivity with 3 XLR mic inputs on this compact audio mixer.
  • Optimize your sound with precise EQ control, ensuring balanced audio for any recording.
  • Use the USB interface for seamless integration, making recording a breeze with this mixer.
  • Durable build guarantees long-lasting performance, ideal for both studio and live sound.
  • Phantom power enabled for condenser mics, expanding your recording possibilities on this mixer.

What's in the box:

  • Rolls MX310 MorMics 3 Channel Mic Mixer/Combiner
  • Installation Mounts
  • Power Supply (PS27)
  • Rolls 1 Year Parts and Labor Limited Warranty
