Rolls MX54S Specifications

  • Input Impedance

    600 Ohms

  • Output Impedance

    XLR 600 Ohms

  • THD + Noise

    0.02%

  • S/N Ratio

    84 dB

  • Frequency Response

    25 Hz - 16 kHz (+0 / -3 dB)

  • Max Output Level

    + 14 dB

  • Max Input Level

    -14 dB

  • Max Gain

    +60 dB

  • Low Cut

    -3 dB at 100 Hz

  • Current Draw

    20 mA

  • Phantom Power

    +18 VDC

  • Connectors

    3 Female XLR, 2 Male XLR, 1 1/4" TRS, DC Power Jack

  • Dimensions

    5.3" x 3.7" x 2" / 13.46 x 9.39 x 5.08 cm

  • Weight

    1 lb / 0.45 kg

10 Accessories for Rolls MX54S 3 Channel Battery Powered Stereo Microphone Mixer with Level, Pan Controls and Headphone Output

  • All Accessories (10)
  • Cables & Adapters (6)
  • Headphones (2)
  • Gaffer Tape (2)
Pro Co Sound Ameriquad 20' XLR (M) to XLR (F) Lo-Z Microphone Cable
Pro Co Sound Ameriquad 20' XLR (M) to XLR (F) Lo-Z Microphone Cable
$36.88
Hosa Technology Hosa 10ft Stereo Mini Male to Mini Male 3.5mm TRS Cable
Hosa Technology Hosa 10ft Stereo Mini Male to Mini Male 3.5mm TRS Cable
$13.95
Hosa 15' Stereo Mini Male to Stereo Mini Male 3.5mm TRS Cable #CMM115
Hosa 15' Stereo Mini Male to Stereo Mini Male 3.5mm TRS Cable #CMM115
$14.95
Hosa 3' Stereo Mini Male to Stereo Mini Male 3.5mm TRS Cable #CMM103
Hosa 3' Stereo Mini Male to Stereo Mini Male 3.5mm TRS Cable #CMM103
$9.95
Hosa Technology Hosa Stereo Mini Male to Stereo Mini Female Audio Cable, 10'
Hosa Technology Hosa Stereo Mini Male to Stereo Mini Female Audio Cable, 10'
$13.95
Hosa Technology Hosa 3ft Stereo 3.5mm - Two 1/4in Phone Males Y-Cable
Hosa Technology Hosa 3ft Stereo 3.5mm - Two 1/4in Phone Males Y-Cable
$13.95
AKG AKG K 240 MKII Studio Headphones with Speaker
AKG AKG K 240 MKII Studio Headphones with Speaker
$199.00
Behringer HPS3000 Closed-Back Over-Ear High-Performance Studio Headphones
Behringer HPS3000 Closed-Back Over-Ear High-Performance Studio Headphones
$14.90
Pro Tapes Gaffer Tape 30 Yards x 2" Black
Pro Tapes Gaffer Tape 30 Yards x 2" Black
$17.65
Adorama Pro-Gaff Gaffer Tape 2" x 55 Yards Black Single
Adorama Pro-Gaff Gaffer Tape 2" x 55 Yards Black Single
$20.99

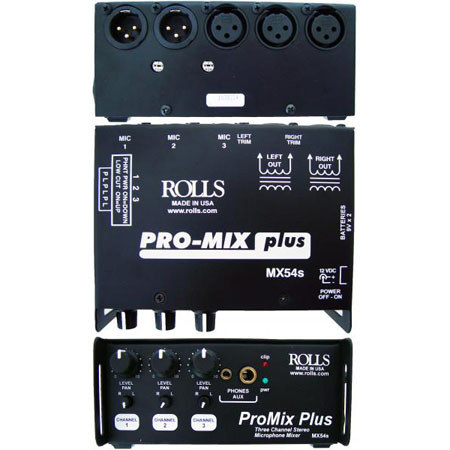

About Rolls MX54S

The Rolls MX54S Pro-Mix Plus mixes three microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power and Low Cut switches, a Level control and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator and Power switch. The unit is also powered by two 9-Volt alkaline batteries.

Rolls MX54S Features

  • Mixes three microphones to stereo XLR outputs
  • Output level controls for mic or line-level output
  • Transformer isolated outputs
  • Phantom Power and Low-Cut switches for each Mic input
  • Battery and AC powered
  • Handy shoulder strap mounts
