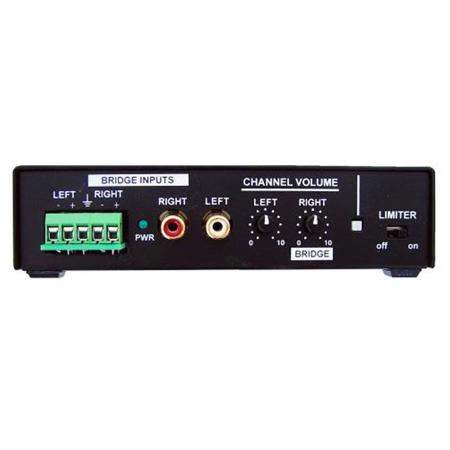

Rolls PA202 20W Class-D Mini Stereo Amplifier
Rolls PA202: Picture 1 thumbnail
Rolls PA202: Picture 2 thumbnail
Rolls PA202: Picture 3 thumbnail
See all Rolls items
26% Off

Rolls PA202 20W Class-D Mini Stereo Amplifier

SKU: ROLPA202 MFR: PA202
Be the first to review this itemAsk a Question
$199.00
$269.00
Save: $70 (26%)
OR
$34/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience high output power with this Rolls stereo amplifier, perfect for small venues.
  • Enjoy a clean, crisp audio experience thanks to the >100 dB signal-to-noise ratio.
  • This mini power amplifier ensures reliable performance with thermal protection features.
  • Achieve optimal sound with low total harmonic distortion (0.05% typical) for clear audio.
  • Its compact form factor makes this 20W amplifier ideal for home or studio use; easy setup.
  • Versatile input/output flexibility with screw terminals & RCA inputs for seamless integration.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Rolls PA202 Specifications

  • Input Connectors

    Screw Term & Dual RCA

  • Outputs Connectors

    Screw Terminals

  • Max Gain

    34 dB/Channel

  • Bandwidth

    20 - 25KHz

  • Voltage Gain

    32 dB

  • Input Sensitivity

    28 mV

  • Line Input Impedance

    47K Ohms

  • Power Output

    20 watts X 2 @ 4 Ohms, 40 watts bridge @ 8 Ohms

  • Maximum Supply Voltage

    30 VDC

  • THD

    0.05% typical

  • EIN

    3 mV

  • Efficiency

    85%

  • Cooling

    Connection Cooling (No Fans)

  • Standby and Idle Current Draw

    0.005/.01 Amps

  • Signal to Noise

    >100 dB

  • Dimensions (W x D x H)

    6 x 3.5 x 1.5" / 152 x 89 x 38 mm

  • Weight

    1 lb / 0.45 kg

  • UPC Code

    675889020205

About Rolls PA202

The Rolls PA202 is a compact class D amplifier. It has 20 watts per channel stereo @ 4 Ohms and 40 watts when in bridge/mono mode @ 8 Ohms. The class D low heat design gives the PA202 the ability to be mounted in very tight applications.

It will work great in ceilings by projectors, or anywhere small and heat free amplification is required. The PA202 is in an all metal chassis. Bottom mounts are provided for permanent installations. The PA202 has an included 24 VDC IEC laptop type external power supply.

Rolls PA202 Features

  • Small size with mounting tabs
  • Balanced and Unbalanced Inputs
  • Pheonix type input and output
  • Low cost, helps win your bid
  • Optical Limiter for maximum clean power output
  • Bridge switch for 40W mono operation

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience high output power with this Rolls stereo amplifier, perfect for small venues.
  • Enjoy a clean, crisp audio experience thanks to the >100 dB signal-to-noise ratio.
  • This mini power amplifier ensures reliable performance with thermal protection features.
  • Achieve optimal sound with low total harmonic distortion (0.05% typical) for clear audio.
  • Its compact form factor makes this 20W amplifier ideal for home or studio use; easy setup.
  • Versatile input/output flexibility with screw terminals & RCA inputs for seamless integration.

What's in the box:

  • Rolls PA202 20W Class-D Mini Stereo Amplifier
  • 24 VDC IEC Laptop Type External Power Supply
  • Rolls 1 Year Parts and Labor Limited Warranty
