Rolls RM68 Rack Mountable Zone Wolf 2 Mixer

SKU: ROLRM68

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Rolls RM68 Specifications

  • Input Impedance

    Mic: 600 ohms (XLR)
    Source: 22 k ohms (RCA)
    Bus: 22 k ohms (1/4")

  • Output Impedance

    51 ohms

  • Maximum Input Level

    Mic: -14 dBV (Balanced)
    Source: +24 dB

  • Maximum Output Level

    +17 dBV

  • Input Connectors

    3 x 3-Pin XLR Female
    6 x RCA Stereo Pairs
    2 x 1/4" Bus

  • Output Connectors

    2 x Pairs of 1/4" Right and Left Outputs, Unbalanced

  • Controls Front Panel

    1 x On/Off Switch
    2 x Zone Level Control Knobs
    2 x Treble Knobs
    2 x Bass Knobs
    6 x Volume Level Sliders
    6 x Zone Selector Switches

  • Controls Rear Panel

    Talkover On/Off Switch

  • Phantom Power

    +12VDC

  • Maximum Input Gain

    Mic: 60 dB
    Source: 26 dB

  • Tone Control

    12 dB Boost/Cut, 250Hz Center

  • Signal to Noise Ratio

    106 dB

  • Total Harmonic Distortion (THD)

    Less than 0.003%

  • Common Mode Rejection Ratio

    52 dB (Mic)

  • Dimensions (W x H x D)

    19 x 1.75 x 6" / 483 x 45 x 152 mm

  • Weight

    5 lbs / 2.3 kg

  • UPC Code

    675889006803

About Rolls RM68

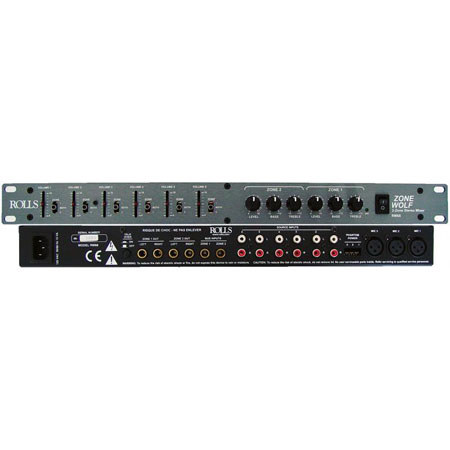

The Rolls RM68 Zone Wolf 2 Mixer is a rack-mountable 3-microphone, 6-stereo source mixer with outputs for two zones. Mixed signals may be sent to either zone or both. The RM68 features individual volume controls for each input channel and for each zone. The zones also have individual bass and treble controls.

The mic inputs supply phantom power so condenser microphones may be used. An automatic talk-over feature on mic 1 allows announcements to be heard clearly. With its intuitive interface, solid construction and variety of input options the RM68 is ideal for use in restaurants, hotels, schools, factories, or houses of worship.

Rolls RM68 Features

  • Send up to 3 mic signals mixed with 6 stereo source signals to 2 output zones
  • 3 XLR mic inputs
  • 6 stereo RCA inputs
  • Individual volume controls and zone selector switches for each channel
  • Individual volume, bass and treble controls for each zone
  • Automatic talkover on mic one
  • 1/4" (6.3mm) TRS outputs
  • Rack-mountable, steel construction
  • Phantom power to allow use of condenser microphones

Key Features

  • 3 XLR mic inputs
  • 6 stereo RCA inputs
  • Automatic talkover on mic one
  • 1/4" (6.3mm) TRS outputs
  • Rack-mountable, steel construction
