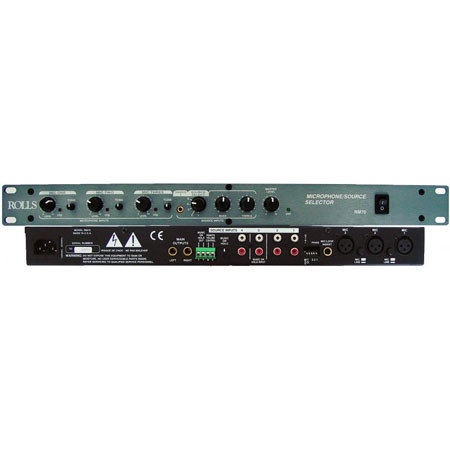

Rolls RM70 Rack Mountable Microphone/Source Selector Mixer

The Rolls RM70 is a single rack space mixer designed for the install/contractor market. It is ideal for small clubs, restaurants, churches, or schools. The unit mixes three balanced microphones with five stereo sources to mono or stereo balanced outputs. The XLR Microphone Inputs have Mic/Line level switches, a send/return Insert jack and individually switchable +12 VDC phantom power.

Priority talkover is available on one microphone for paging. A Music-On-Hold function has been included for connection to an telephone system. Each Microphone input has a level and tone control and each Source input has Bass and Treble controls. A Master Output Level control adjusts the level of all mixed signals. A Remote Volume output jack is provided for connection to a 100K ohm linear taper potentiometer and used as an external master level control.
