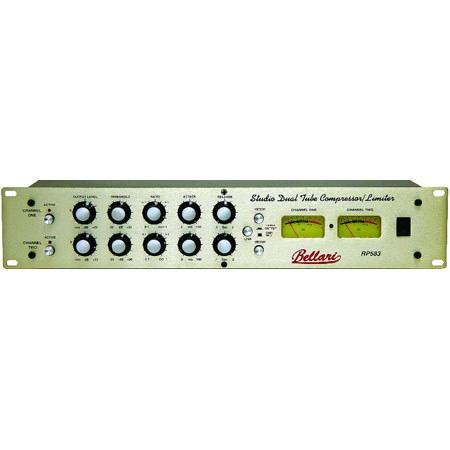

Rolls RP583 Bellari Studio Tube Compressor/Limiter

SKU: ROLRP583

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Rolls RP583 Specifications

  • Frequency Response

    20 Hz - 40 kHz

  • Input Impedance

    10KW balanced
    1MW unbalanced

  • THD + Noise

    <0.1% typical

  • S/N Ratio

    90 dB

  • Indicators

    2: Active LEDs
    2: Analog Meters

  • Input/Output jacks

    XLR balanced
    1/4" unbalanced

  • Side Chain:

    1/4" unbalanced

  • Power

    120VAC (230VAC) 15VA

  • Dimensions

    3.5" x 6" x 19" / 89 x 162 x 482 mm

  • Weight

    7.5 lbs /3.4 Kg

  • UPC Code

    675889058307

About Rolls RP583

The Rolls RP583 is a clean, delightfully warm sounding compressor/limiter designed for a variety of uses. It can lightly compress a vocal track, or an overall program mix, or it can act as a ceiling for the audio allowing only a designated level of signal pass. All this is accomplished via optical isolated gain reduction and tube circuits to maintain a pristine fullbodied sound.

The RP583 has all the necessary features like analog metering, variable threshold, ratio, attack and release times and a stereo link switch which combines the channels and makes Channel Two the master. With the recent explosion of the digital recording world, tube based preamps and signal processors have become popular to overcome the inherent harshness and brittle sound created by the recording medium.

Tube based compressors have the added benefit of a natural, even harmonic compression which adds a smooth and warm characteristic to the sound. The Bellari RP583 provides all the compression parameters necessary for complete control over the dynamic process and it does it all with new and innovative tube circuit technology.

Rolls RP583 Features

  • All tube gain circuitry with proper high-voltage plate voltages
  • Solid state input and output buffering only
  • 1/4" and XLR inputs and outputs
  • Calibrated, accurate meters
  • Smooth, lively tube sound
  • Side Chain for direct access to detector circuits

Key Features

  • 1/4" and XLR inputs and outputs
  • All tube gain circuitry with proper high-voltage plate voltages
  • Calibrated, accurate meters
  • Side Chain for direct access to detector circuits
  • Smooth, lively tube sound
  • Solid state input and output buffering only
