Roland V-1HD+ STR Encoder Bundle with V-1HD+ HD Video Switcher and UVC-01 USB Video Capture

SKU: ROLV1HDPSTR MFR: V-1HD+ STR
Earn VIP Reward Points

Key Features

  • Create engaging live streams with the Roland V-1HD+ STR Encoder Bundle today.
  • Enjoy low latency video switching for seamless broadcasts using this Roland encoder.
  • Easily capture and stream high-quality video via USB with the included UVC-01 capture.
  • Enhance your production with advanced video effects and transitions on the V-1HD+.
  • Get reliable performance for live events, webinars, and more with this Roland bundle.
  • This bundle supports multiple formats for flexible video and audio streaming needs.
See More Product Details
Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ARIEL P : To produce video events and streaming like church and school graduation.DE M : live streaming

Reviews about this item

Review Summary

2022-05-18T09:05:46

Rated 5 out of 5

Very Impressed and user Friendly

Very Compact and user friendly. A lot of features for the price. I highly recommend this product

ACCOUNTS P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Roland V-1HD+ Specifications

V-1HD+ Video Switcher: Video

V-1HD+ Video Switcher: Video

Jump to...
  • Video Processing

    4:2:2 (Y/Pb/Pr), 8-bit

  • Input Connectors

    Input 1-3: HDMI type A x 3
    Input 4: HDMI type A

  • Output Connectors

    Output 1-2: HDMI type A x 2

  • Input Formats

    Input 1-3
    720/59.94p, 720/60p
    720/50p
    1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p
    1080/50i, 1080/50p, 1080/25p
    1080/23.98p, 1080/24p

    Input 4
    480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i,
    1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p
    576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p
    1080/23.98p, 1080/24p

  • Input Formats (Contd.)

    VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
    WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
    FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
    UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)

    Still Image:
    Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
    PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color

  • Output Formats

    Output 1-2:
    720/59.94p
    720/50p
    1080/59.94i
    1080/50i
    1080/59.94p
    1080/50p

  • Video Effects

    Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
    Composition: PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key)
    Other: Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern Output

V-1HD+ Video Switcher: Audio

Jump to...
  • Audio Processing

    Sample rate: 24 bits/48 kHz

  • Audio Formats

    Linear PCM, 24 bits/48 kHz, 2 ch

  • Input Connectors

    Input 1-4: HDMI Type A x 4
    Audio In 1-2: XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max
    Line In: RCA phono type
    MIC/AUX IN: Stereo miniature phone type (PLUG-IN power)

  • Output Connectors

    Output 1-3: HDMI Type A x 2
    Audio Out L, R: 1/4-inch TRS phone type
    Phones: Stereo miniature phone type

  • Nominal Input Level

    Audio In 1-2: -60 to +4 dBu (Maximum Input level: +24 dBu)
    Line In: -10 dBu (Maximum Input level: +10 dBu)
    MIC/AUX IN: -51 to -10 dBu (Maximum Input level: +10 dBu)

  • Input Impedance

    Audio In 1-2: 10 k ohms
    Line In: 15 k ohms
    MIC/AUX IN: 10 k ohms

  • Nominal Output Level

    Audio Out L, R: +4 dBu (Maximum Output level: +24 dBu)
    Phones: 72 mW + 72 mW (32 ohms load)

  • Output Impedance

    Audio Out L, R: 600 ohms
    Phones: 10 ohms

  • Audio Effects

    Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone Output

V-1HD+ Video Switcher: Others

Jump to...
  • Other Connectors

    USB Memory: USB A type (for USB flash drive)
    Remote: USB B type (for Remote control)
    RS-232: DB-9 type (male, for Remote control)
    TALLY: DB-9 type (female, for TALLY Output)

  • Other Functions

    Preset memory (8 types)
    Panel lock function
    EDID emulator
    Auto switching
    Auto Input detect

  • Power Supply

    AC adapter

  • Current Draw

    2.1 A

  • Power Consumption

    25.2 W

  • Operation Temperature

    32 to 104 Degrees F (0 to 40 Degrees C)

  • Dimensions (W x D x H)

    12.05 x 4.81 x 2.56" (316 x 121 x 65mm)

  • Weight

    3.08 lbs (1.4kg) (excluding AC adapter)

UVC-01 USB Video Capture: Video

Jump to...
  • Input Connectors

    HDMI IN connector: HDMI type A

  • Output Connectors

    USB Stream port: USB 3.0 B type

  • Input Formats

    480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)

  • USB Video Output Format

    YUY2 (Uncompressed)

  • USB Video Output Resolution

    1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240

UVC-01 USB Video Capture: Audio

Jump to...
  • Audio Formats

    HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo
    USB Stream port: Linear PCM, 48 kHz, 16 bits, stereo

  • Input Connectors

    HDMI IN connector: HDMI type A
    AUX IN jack: Stereo miniature phone type

  • Output Connectors

    USB Stream port: USB 3.0 B type

  • Nominal Input Level

    AUX IN jack: -10 dBu (Maximum input level: +8 dBu)

  • Input Impedance

    AUX IN jack: 10 k ohms

UVC-01 USB Video Capture: Others

Jump to...
  • Power Supply

    Supplied from the computer via USB

  • Current Draw

    500 mA

  • Operation Temperature

    32 to 104 Degrees F (0 to 40 Degrees C)

  • Dimensions (W x D x H)

    3.56 x 1.05 x 0.93" (90 x 37 x 23mm)

  • Weight

    4 oz (96g) (excluding AC adapter)

  • UPC Code

    761294224410

Related Articles & Videos

Best Video Switchers for Any Producer

Best Video Switchers for Any Producer

Video switchers make it easy to cycle through various HDMI sources, including multiple cameras, computers, tablets, Blu-Ray players, and more. Most switchers also come with picture-in-picture and split functions, among other effects, to step up the production value of any br...

Read more

About Roland V-1HD+

FEATURED REVIEWS

Very Impressed and user Friendly

By ACCOUNTS P.

Very Compact and user friendly. A lot of features for the price. I highly recommend this product

V-1HD+

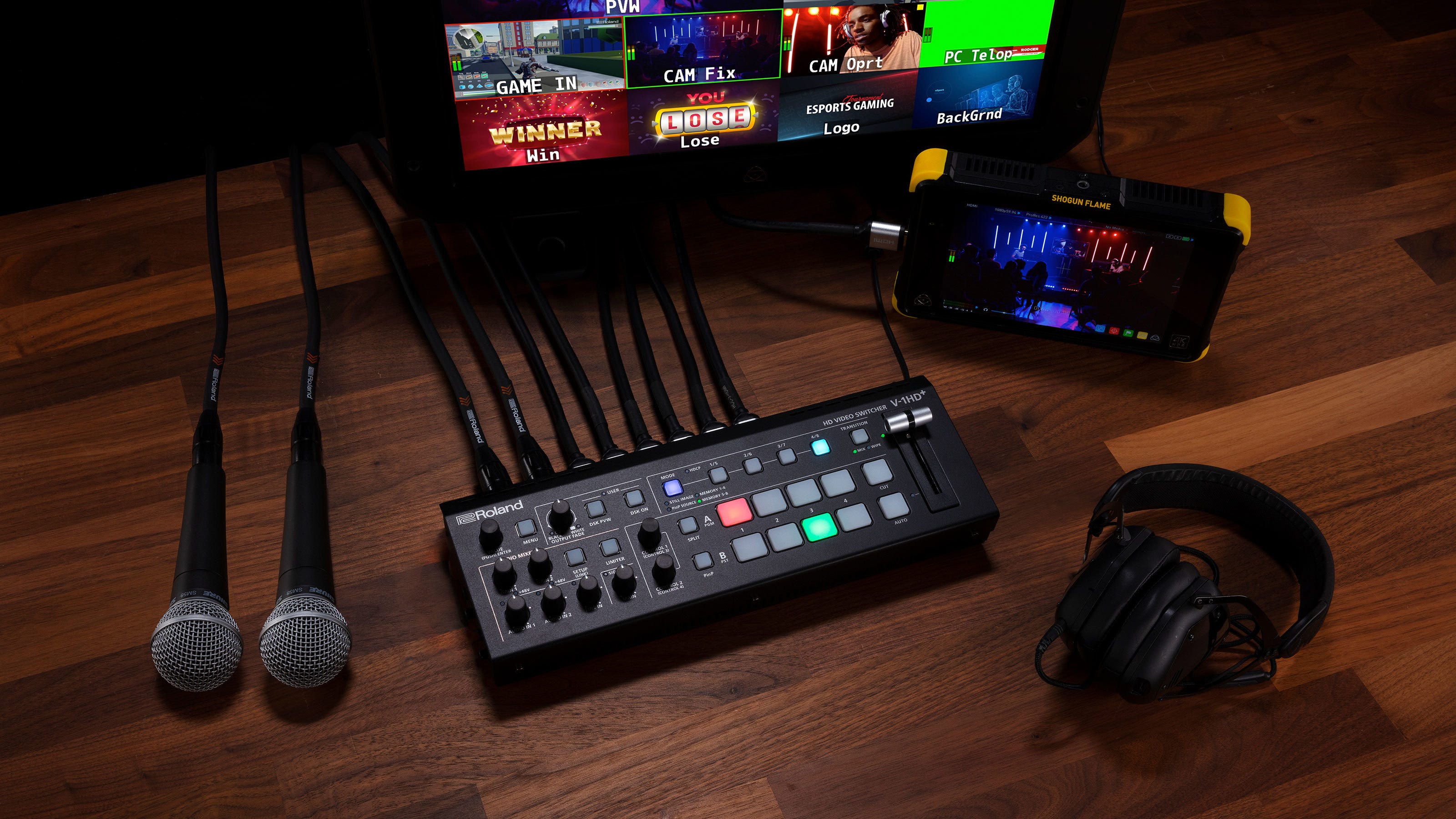

V-1HD+ Video Switcher. Switch, Mix, & Stream Like a Pro.

The V-1HD+ is the ultimate compact A/V switching solution for serious visual storytellers. Elevate your creative production process with versatile I/O, a familiar user interface, deep control, and essential monitoring tools that help keep your content looking great and sounding perfect. The V-1HD+ delivers the superior performance you want and the production-critical reliability you demand—plus the Roland support and training resources you deserve.

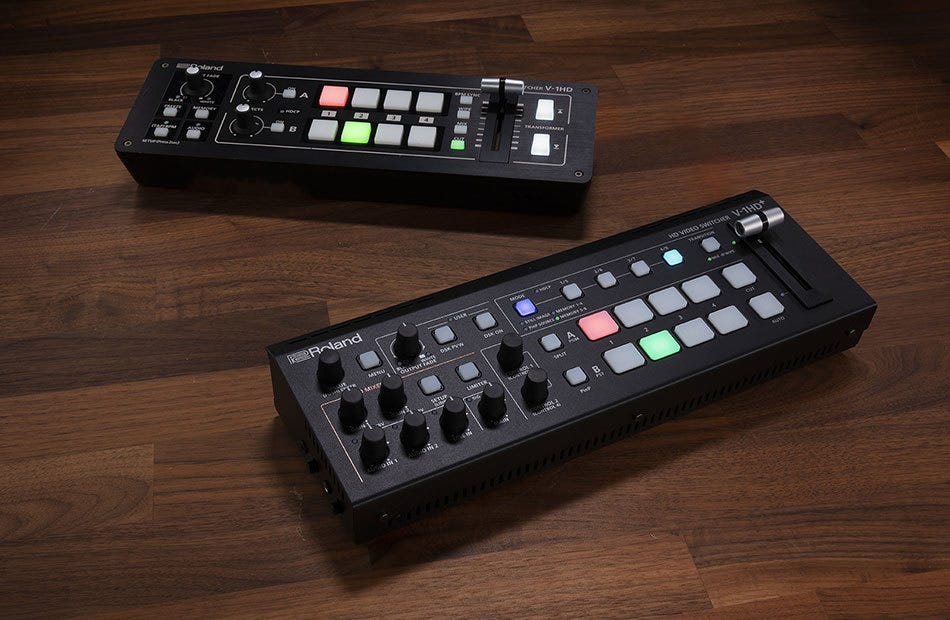

A Legacy Of Success.

Since its release in 2015, the Roland V-1HD has been the most popular high-definition, four-channel HDMI video switcher available. The V-1HD+ extends this legacy with a deeper feature set for advanced applications—while still maintaining the simple operation, pro performance, and rugged reliability that’s made the V-1HD a favorite of users around the world.

A Legacy Of Success.

No-Compromise Video I/O.

Video professionals shouldn't be forced into making technical compromises. With its full-featured video I/O, the V-1HD+ is inspired by your need to do more.

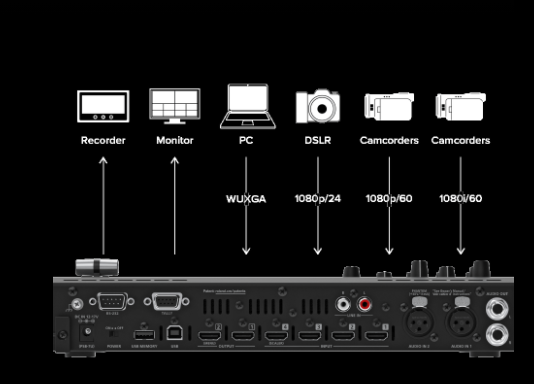

Four Video Inputs & Onboard Scaling.

Four HDMI inputs with frame rate conversion let you mix a variety of sources, including cameras, presentation computers, tablets, and video game consoles. And when you have a troublesome source that won’t display correctly, simply plug it into Input 4 and let the built-in video scaler sync and calibrate the image automatically.

Two Video Outputs.

Two independent HDMI outputs can be assigned to display one of three different video busses, providing the versatility you need for pro production. For example, you can use one as your main program output for a recorder or livestream, and the second output to turn any HD video monitor into an “up-next” input preview display or expanded multiviewer with 10 windows.

Four Video Inputs & Onboard Scaling.

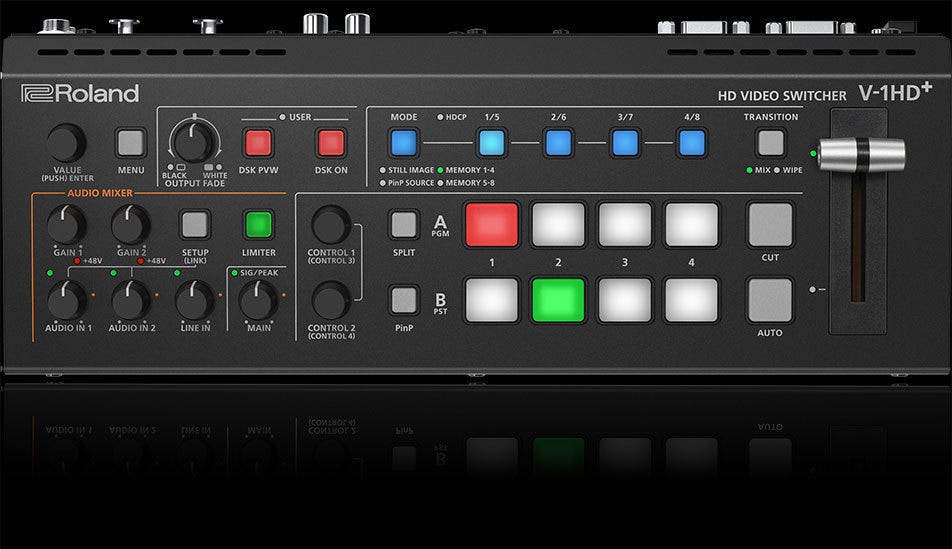

Pro Operation Made Easy.

Your passion for a simplified interface led our designers to add quick-action buttons for the most commonly used operations. With one-touch access to the system menu, downstream key on/off, transition type, picture-in-picture, effects on/off, and more, V-1HD+ production workflow is smooth and hassle-free.

The V-1HD+ also includes PGM and PST busses and a transition/fade bar, which are the most-recognized video switching controls in the industry—and the quickest for beginners and volunteers to learn. And with tactile audio volume knobs, signal/peak lights, and unity gain markers, it’s simple and intuitive to adjust sound levels on the fly.

V-1HD

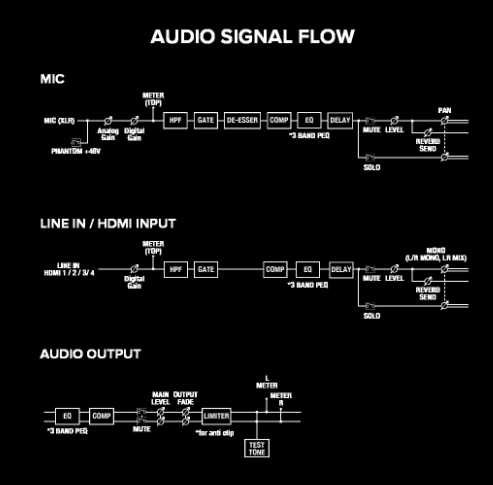

14-Channel Audio Mixing With Effects.

The V-1HD+ allows a single operator to do more than switch cameras—they can mix professional sound too. The integrated 14-channel digital audio mixer blends HDMI audio with mic and line sources, and also offers a variety of onboard effects to sweeten mixes.

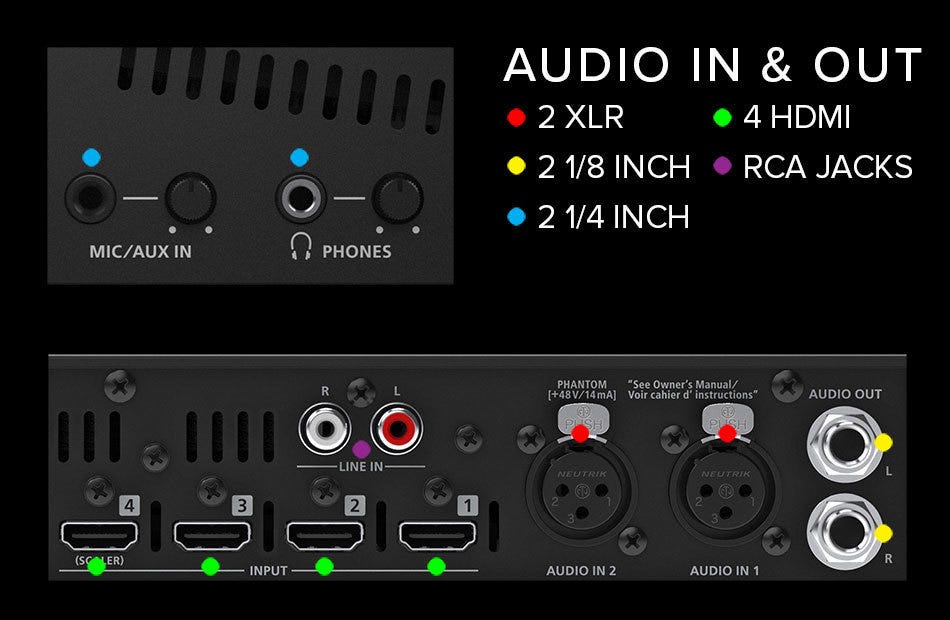

Audio Inputs.

With two XLR mic inputs and selectable phantom power, the V-1HD+ lets you bring pro-grade microphones into your productions, including condenser broadcast mics. There’s also an 1/8-inch input for a lavalier mic or stereo audio source like a smartphone, plus another stereo input on RCA jacks. Embedded stereo audio from the four HDMI inputs can be included in your mix as well.

Audio Outputs.

With the V-1HD+, there’s no need for a dedicated small audio console. Distribute analog sound to a PA system via two balanced ¼-inch TRS outputs, and use embedded digital audio in the HDMI outputs to feed recorders and livestream broadcasts.

Audio Inputs.

Audio Effects.

Leave the outboard gear in the recording studio—each audio input on the V-1HD+ has its own three-band equalizer, high-pass filter, compressor, and noise gate, plus a sync delay to align audio with video if needed. The XLR and 1/8-inch inputs also include de-essers to clean up vocal sounds in real time. And with the limiter, three-band equalizer and compressor on the main outputs, you can deliver broadcast-quality sound every time.

Audio Effects.

Production-Critical Signal Monitoring.

Without proper signal monitoring, you’re running blind. The V-1HD+ incorporates several real-time monitoring tools that make it easy to keep your productions looking and sounding their best.

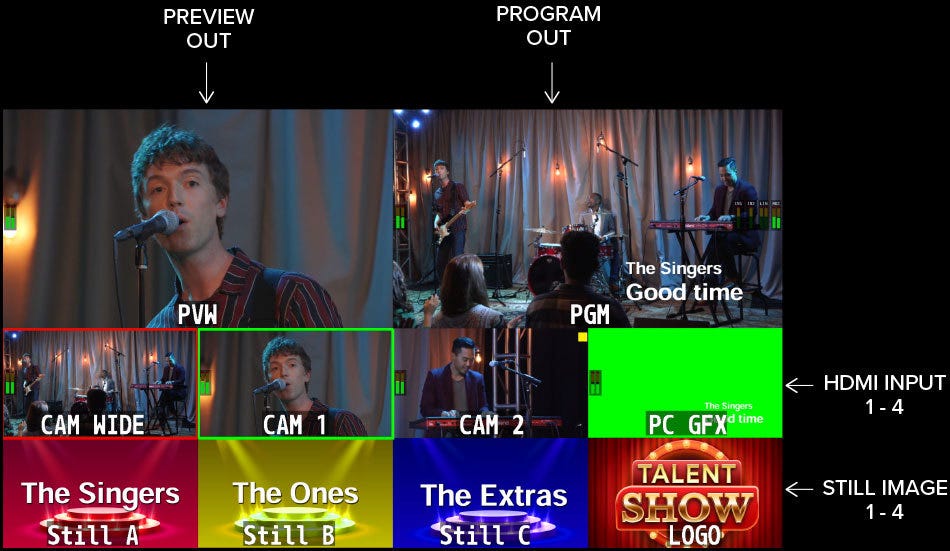

Multiviewer Display.

Multiviewer Display.

A 10-window multiviewer display can be applied to one or both HDMI outputs, helping you manage productions in real time. Cue up camera shots, preview presentations, and choose stored still images before taking them live to the program feed. Camcorder recording status can be monitored as well.

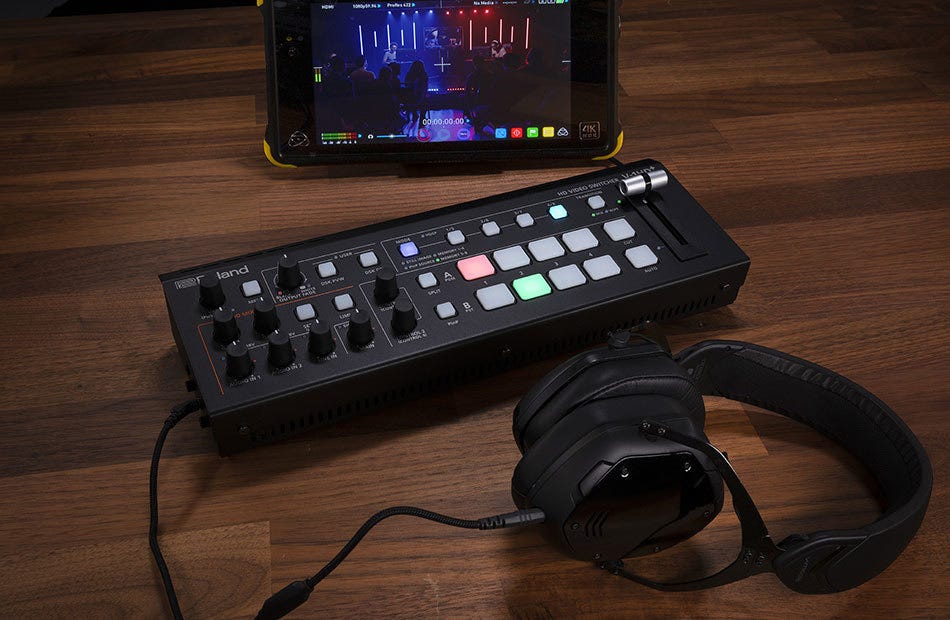

Audio Monitoring.

Audio Monitoring.

Even if your video looks perfect, poor sound will ruin the entire production. With the V-1HD+, you can always keep track of your audio quality. Each analog input has its own signal/peak indicator, and headphones can be plugged in to monitor the overall audio feed. When using the multiviewer display, signal level meters are shown for all inputs and the main outputs.

Effects, Keying, & Stills.

The powerful effects engine in the V-1HD+ keeps audiences engaged with visually appealing content while opening new revenue streams for customer graphics creation.

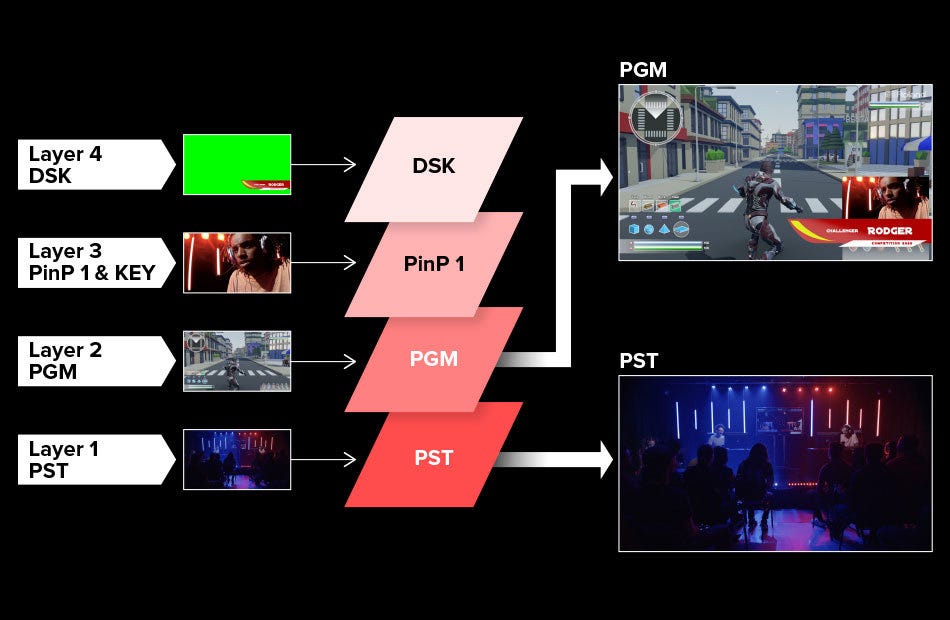

Four-Layer Effects Engine.

Savvy visual storytellers understand the power of layered graphics and visual effects. With four composition layers at your command, it’s simple to add lower-third titles, logos, social media comments, and more to inform your audience and keep them involved.

Keying.

The DSK (downstream keyer) layer lets you independently composite a picture-in-picture (PinP) window on a video feed, which is especially useful for live and online hybrid events. For example, when displaying onscreen graphics for a live presentation, you can also overlay a camera shot of the stage speaker that’s only viewable by the online audience.

Still Images.

When using the V-1HD+, you’ll never have to leave your audience with a blank screen when the presentation stops, the meeting goes on break, or the camera power goes down. Simply call up one of four still images you’ve stored in the V-1HD+, or capture stills from a connected input source. And with the versatile effects engine, these images can be used as DSK lower thirds or full-screen backgrounds.

Four-Layer Effects Engine

Camera Tally.

A camera tally light visually directs talent to look toward the active camera, and also lets everyone know when the camera is live and “on-air.” The analog tally output on the V-1HD+ can be wired to most broadcast camera systems—refer to the V-1HD+ Reference Manual for wiring specifications.

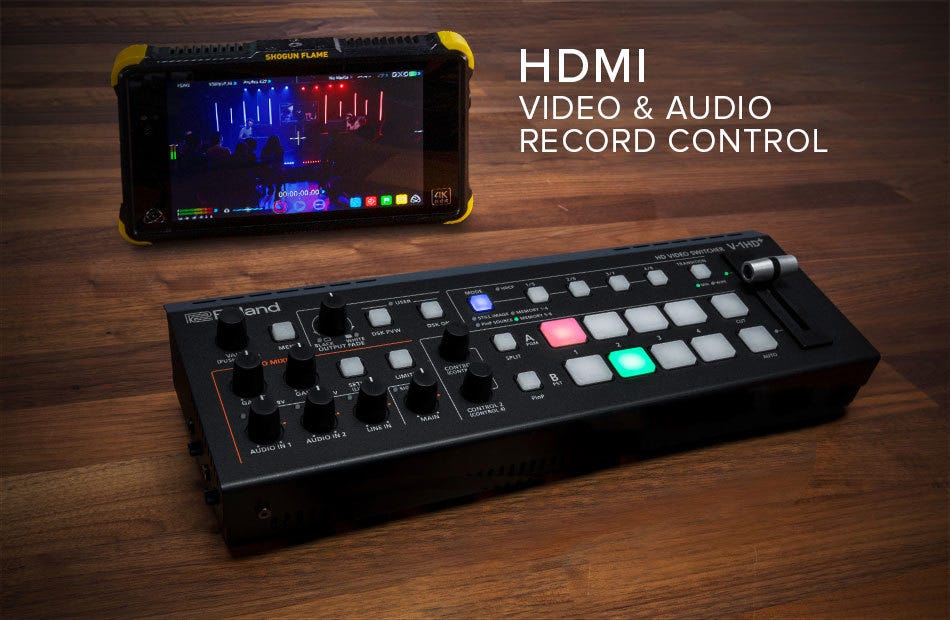

Recording Control.

Many technical elements contribute to a successful recording—but forgetting to hit the record button means the difference between getting paid for the job or not. Via HDMI, you can trigger Atomos recorders to start and stop recording, bringing remote-control convenience to your busy workflow.

Legacy Support.

Budgets don't always allow you to upgrade every component in your video system at the same time. The V-1HD+ can interface with legacy systems and components via its RS-232 port, allowing you to keep working while saving up for that new piece of gear.

Camera Tally

Features.

  • Professional HD switching solution for live events, liveStreaming, or both at once
  • Standalone video switcher and 14-channel audio mixer for single operators Compact and portable for fast set up
  • Familiar interface that's quick to learn and easy to use
  • Technology-assisted automatic video switching
  • Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
  • Pro audio I/O with legendary Roland sound quality
  • Eight memory presets to recall visual layouts on cue

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Create engaging live streams with the Roland V-1HD+ STR Encoder Bundle today.
  • Enjoy low latency video switching for seamless broadcasts using this Roland encoder.
  • Easily capture and stream high-quality video via USB with the included UVC-01 capture.
  • Enhance your production with advanced video effects and transitions on the V-1HD+.
  • Get reliable performance for live events, webinars, and more with this Roland bundle.
  • This bundle supports multiple formats for flexible video and audio streaming needs.

What's in the box:

  • V-1HD+ HD Video Switcher
  • UVC-01 USB Video Capture
  • AC Adapter
  • Power Cord
  • USB 3.0 Cable
  • Startup Guide
  • Roland 1 Year Limited Warranty
