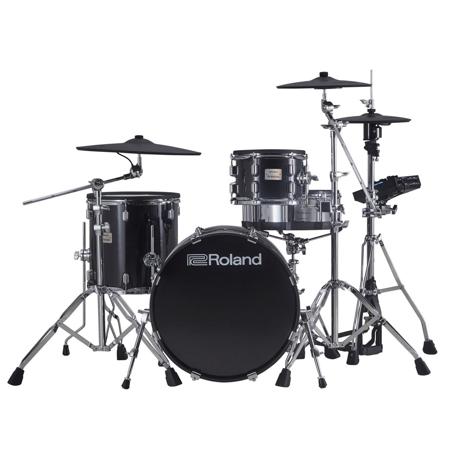

Roland VAD503 V-Drums Acoustic Design Kit, Bundle with 20" Drum Pad

SKU: ROLVAD503VD MFR: VAD503 VD
Earn VIP Reward Points

Key Features

  • Experience unmatched realism with the Roland VAD503's acoustic design and responsive mesh heads.
  • Dive into a world of sound with 728 instruments on the TD-27 drum sound module for diverse musical styles.
  • Capture every nuance with the PD-140DS digital snare, offering high-resolution positional sensing.
  • Enjoy quiet practice sessions with the V-Drums' mesh heads, perfect for home or apartment use.
  • Customize your kit with deep editing tools, including EQ, compression, and multi-effects for each pad.
  • Seamlessly integrate with your DAW via USB for recording and playback with low latency performance.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Roland VAD503 Specifications

TD-27: Drum Sound Module

TD-27: Drum Sound Module

Jump to...
  • Drum kits

    100 (Preset: 55)

  • Instruments

    728

  • User Sample Import

    Number of User Sample: Maximum 500 (includes factory preloaded user samples)
    Sound Length (total): 24 minutes in mono, 12 minutes in stereo
    File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

  • Effect Types

    Pad Compressor: each pad
    Pad Equalizer: each pad
    Overhead Mic Simulator
    Room/Reverb
    Multi-Effects: 3 systems, 30 types
    Master Compressor
    Master Equalizer

  • Bluetooth

    Supported standards: Bluetooth Ver 4.2
    Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
    Codec: SBC (Support to the content protection of the SCMS-T method)

  • Song Player (SD Card)

    File format: WAV (44.1 kHz, 16/24 bits), MP3

  • Recorder

    Recording Method: Realtime
    Maximum length: 60 min (temporary recording: 3 min)
    File format: WAV (44.1 kHz, 16 bits)

  • Display

    Graphic LCD 256 x 80 dots

  • External Memory

    SD Card (SDHC supported)

  • Connectors

    Trigger Input connectors 1: DB-25 type (Kick, Snare, Tom1, Tom2, Tom3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control)
    Trigger In jack x 4: 1/4-inch TRS phone type (CRASH 2, AUX1, AUX2, AUX3)
    Digital Trigger In port x 3: USB A type
    Master Out jacks (L/MONO, R): 1/4-inch phone type
    Direct Out jack x 2 (MONO): 1/4-inch phone type

  • Connectors (Contd.)

    Phones jack x 1: Stereo 1/4-inch phone type
    MIX IN jack x 1: Stereo 1/4-inch phone type
    MIDI (IN, OUT/THRU) connectors
    USB Computer port x 1: USB B type
    Foot SW jack x 1: 1/4-inch TRS phone type
    DC IN jack

  • USB Computer

    Speed: Hi-speed USB
    Driver mode: Generic, Vender
    Protocol: USB MIDI, USB Audio

  • USB Audio

    Sampling Rate (original): 44.1 kHz
    Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
    Record: 28 channels
    Playback: 4 channels

  • Power Supply

    AC adapter (DC 9 V)

  • Current Draw

    770 mA

  • Dimensions (W x D x H)

    9.375 x 8.06 x 3.125" (238 x 204 x 79mm)

  • Weight

    Excluding AC adapter: 2.43 lbs (1.1kg)

PD-140DS: Snare

Jump to...
  • Pad size

    14" (35.5cm)

  • Shell depth

    4.3" (10.9cm)

  • Tension rods

    8

  • Head

    3-ply mesh head (Floating mid-layer structure)

  • Available playing methods (Triggers)

    Head shot (High resolution positional detection, Wide dynamic range)
    Rim shot (Depth detection, Wide dynamic range)
    Cross stick (Automatic switching)
    Brush sweep

  • Sensor system

    Multi element sensor system
    Head sensor
    Position sensors x 3
    Rim sensor
    Cross stick sensors x 3
    Built-in sensing processor

  • Supported covering size (W x L)

    3.8 x 41.7" (98 x 1060mm)
    Thickness: 1mm or less

  • Connector

    Digital Trigger Out plug
    (compatible with Roland drum sound module equipped with Digital Trigger In port)

  • Power supply

    Supplied from Digital Trigger In port (DC 5 V)

  • Current Draw

    90 mA

  • Dimensions (W x D x H)

    15 x 15 x 6.31" (380 x 380 x 160mm)

  • Weight

    10.8 lbs (4.9kg)

PDA100-MS: Tom1

Jump to...
  • Shell (Dia. x D)

    10 x 7" (25.4 x 17.7cm)
    Wood shell

  • Finish

    Midnight sparkle (Wrap)

  • Head

    Top: 2-ply mesh head
    Bottom: 2-ply mesh head

  • Triggers

    2 (Head, Rim)

  • Connector

    Output jack

  • Allowable diameter of mounting rod

    9-13 mm (3/8?9/16 inches)

  • Usable pipe size

    Not compatible

  • Dimensions (W x D x H)

    11.6 x 13 x 8.31" (295 x 330 x 210mm)

  • Weight

    6.43 lbs (2.9kg)

PDA140F-MS: Tom3

Jump to...
  • Shell (Dia. x D)

    14 x 14" (35.5 x 35.5cm)
    Wood shell

  • Finish

    Midnight sparkle (Wrap)

  • Head

    Top: 3-ply mesh head (floating mid-layer structure)
    Bottom: 2-ply mesh head

  • Triggers

    2 (Head, Rim)

  • Connector

    Output jack

  • Dimensions (w x D x H)

    Excluding legs: 16.3 x 16.9 x 15.18" (415 x 430 x 385mm)

  • Weight

    Including legs: 14.12 lbs (6.4kg)
    Excluding legs: 11.68 lbs (5.3kg)

VH-10: Hi-Hat

Jump to...
  • Size

    12" (30.4cm)

  • Triggers

    2 (Bow, Edge)

  • Connectors

    Trigger Output jack
    Control Output jack

  • Acceptable rod diameters

    1/4-5/16" (6.0-7.0mm) (Rod bushes: Max. 1/2" (11.7mm))

  • Dimensions (W x D x H)

    12.3 x 12.3 x 4.06" (314 x 314 x 103mm)

  • Weight

    2.68 lbs (1.2kg)

CY-14C-T: Crash1

Jump to...
  • Size

    14" (35.5cm)

  • Triggers

    2 (Bow/Edge)

  • Connectors

    Bow/Edge Output jack

  • Dimensions (W x D x H)

    14.06 x 14.06 x 1.9" (356 x 356 x 48mm)

  • Weight

    2.25 lbs (1.0kg)

CY-18DR: Ride

Jump to...
  • Size

    18" (45.7cm)

  • Available playing methods (triggers)

    Bow shot (high resolution position detection, wide dynamic range)
    Bell shot (wide dynamic range)
    Edge shot (wide dynamic range)
    Choke (choke edge, bow touch)

  • Sensor system

    Multi element sensor system
    Bow sensor x 3
    Bell sensor
    Edge sensor
    Touch sensor
    Built-in sensing processor

  • Connectors

    Digital Trigger Out port
    (compatible with Roland drum sound module equipped with Digital Trigger In port)

  • Power supply

    Supplied from Digital Trigger In port (DC 5 V)

  • Current draw

    90 mA

  • Dimensions (W x D x H)

    18.5 x 18.5 x 2.18" (470 x 470 x 55mm)

  • Weight

    4.68 lbs (2.1kg)

KD-200-MS: Kick

Jump to...
  • Shell (Dia. x D)

    20 x 16" (50.8 x 40.6cm)
    Wood Shell

  • Finish

    Midnight Sparkle (Wrap)

  • Trigger

    1 (Head)

  • Acceptable pedal

    Single pedal, Twin pedal

  • Connectors

    Trigger Output jack

  • Dimensions (W x D x H)

    24.9 x 20 x 20.8" (633 x 507 x 528mm)

  • Weight

    24.06 lbs (10.9kg)

DCS-10: Drum combination stand

Jump to...
  • Weight

    11.5 lbs (5.2kg)

DBS-10: Drum boom stand

Jump to...
  • Weight

    9.75 lbs (4.4kg)

APC-10: All purpose clamp

Jump to...
  • Usable pipe size

    5/8 - 1-1/8" (15.9-28.6mm)

  • Weight

    1.18 lbs (530g)

  • UPC Code

    761294514818

9 Accessories for Roland VAD503 V-Drums Acoustic Design Kit, Bundle with 20" Drum Pad

  • All Accessories (9)
  • Pedals (3)
  • Headphones (1)
  • Drum Acessories (1)
  • Bags & Cases (2)
  • Amplifiers (1)
  • Stands (1)

About Roland VAD503

An exemplary fusion of style and substance, the Roland VAD503 V-Drums Acoustic Design Kit is the quintessential choice for drummers seeking the resonant aesthetics of an acoustic drum set combined with the cutting-edge technology of electronic percussion. This sophisticated 'one-up, one-down' kit boasts full-size wooden shells that deliver a visually stunning stage presence and an authentic acoustic feel that will captivate both the audience and the musician.

Crafted for durability and professional performance, the VAD503 features wooden shells with full depth and diameter, meticulously finished and supported by double-braced chrome stands. The result is a drum set that not only looks like its acoustic counterparts but also provides the stability and reliability required by serious percussionists.

The heart of the VAD503's innovative prowess lies in Roland's advanced digital sensor technology and the dynamic TD-27 drum module. These components work in harmony to ensure that every nuance of your playing, from the subtlest ghost note to the most powerful roll, is captured and conveyed with extraordinary detail.

Experience an immersive acoustic drumming sensation with the VAD503's high-quality layout, which includes a 14" stainless steel snare, a 10" rack tom, a 14" floor tom, and a commanding 20" kick pad, all constructed with full-depth wood shells. This design not only enhances the visual appeal but also provides a genuine tactile response that mirrors the experience of playing traditional acoustic drums.

The kit's cymbal set, comprising a 12" V-Hi-Hat, a 14" crash with a thin profile and textured finish, and an 18" ride, offers superior playability and a natural appearance that will impress on any stage.

Roland's state-of-the-art digital pad technology elevates the V-Drums experience, particularly with the 14" digital snare and 18" digital ride cymbal. These pads connect to the TD-27 module via USB, allowing for a seamless integration that produces the most natural expression of your drumming skills. The multi-sensor system and rapid processing capture your every technique with precision, from rim shots on the snare to the subtle muting of the ride cymbal.

The natural feel of the VAD503 is further enhanced by Roland's legendary multi-ply, tension-adjustable mesh heads, which offer a customizable stick rebound to suit your individual playing style. The specially designed kick drum pad creates a realistic air movement and resistance, akin to an acoustic kick drum, providing an unparalleled playing experience.

Dive into the depths of Prismatic Sound Modeling with the TD-27 sound module, derived from Roland's flagship TD-50. This module breathes life into meticulously sampled drums and cymbals, applying Roland's proprietary behavior modeling to produce a rich, dynamic range of sounds that respond authentically to your touch.

Create and refine your signature drum kit with the extensive customization options available in the TD-27 module. Adjust tuning, apply damping, tweak snare wire tension, and more to achieve the perfect sound for any performance. The module's intuitive editing tools and automatic save function allow you to focus on your playing without distraction.

The VAD503's double-braced chrome drum stands not only exude a classic aesthetic but also enhance the playing feel. The tom pads and newly developed thin V-Cymbals are mounted for optimal movement and response, ensuring a natural playing experience.

New PureAcoustic Ambience Technology optimizes each kit, creating an immersive sound field that can be further tailored by adjusting the mic position and overall sound with the overhead mic simulator. Advanced onboard multi-effects and mixing capabilities put the power of a full-scale studio console at your fingertips.

For live performances or studio recordings, the VAD503 offers a wealth of connectivity options. The TD-27 module provides stereo outputs, direct outputs for independent mixing, and a built-in USB audio interface for seamless integration with computer music production, supporting up to 28 audio channels over a single cable. MIDI compatibility via USB and dedicated I/O allows for synchronization with other devices and software-triggered sounds.

Expand your drumming arsenal with ease using the TD-27 module's auxiliary trigger inputs, which enable the addition of tom and cymbal pads or even a double-kick setup for a truly personalized drumming experience.

The VAD503 also features Bluetooth connectivity for wireless audio streaming, built-in coaching tools to develop your skills, and an advanced metronome to refine your timing. Record your playing and listen back for focused practice sessions, ensuring continuous improvement and mastery of your craft.

Roland VAD503 Features

  • Four-piece V-Drums Acoustic Design kit with full-size wood shells and double-braced chrome stands
  • TD-27 sound module with advanced Prismatic Sound Modeling derived from the flagship TD-50
  • 14" PD-140DS digital snare and 18" CY-18DR digital ride cymbal with high-resolution, multi-sensor triggering for unparalleled dynamics and accurate positional detection
  • 10" PDA100-MS rack tom, 14" PDA140F-MS floor tom, and 20" KD-200-MS kick with custom chrome hardware and Midnight Sparkle wraps
  • Additional cymbal pads include 12" VH-10 V-Hi-Hat and 14" CY-14C-T crash
  • Drum in inspiring sound spaces with newly developed PureAcoustic Ambience Technology
  • Hands-on interface for quick-and-easy selecting and personalizing drum sounds
  • Import your own WAV samples via an SD card
  • Stereo mix output and two assignable outputs for sending individual drum sounds to a PA mixer
  • Integrated 28-channel USB audio interface for professional computer music production
  • Three auxiliary trigger inputs for easy kit expansion
  • Onboard Bluetooth for drumming with music from a smartphone or laptop
  • Built-in practice functions for developing drumming skills

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience unmatched realism with the Roland VAD503's acoustic design and responsive mesh heads.
  • Dive into a world of sound with 728 instruments on the TD-27 drum sound module for diverse musical styles.
  • Capture every nuance with the PD-140DS digital snare, offering high-resolution positional sensing.
  • Enjoy quiet practice sessions with the V-Drums' mesh heads, perfect for home or apartment use.
  • Customize your kit with deep editing tools, including EQ, compression, and multi-effects for each pad.
  • Seamlessly integrate with your DAW via USB for recording and playback with low latency performance.

What's in the box:

  • Drum Sound Module (TD-27)
  • Snare (PD-140DS)
  • Tom1 (PDA100-MS)
  • Tom3 (PDA140F-MS)
  • Hi-Hat (VH-10)
  • Crash1 (CY-14C-T)
  • Ride (CY-18DR)
  • Kick (KD-200-MS)
  • Drum Combination Stand (DCS-10)
  • Drum Boom Stand (DBS-10)
  • All Purpose Clamp (APC-10)
  • Sound Module Mount
  • AC Adapter
  • Special Connection Cable
  • Drum Key
  • Setup Guide
  • Owner's Manuals
  • Roland 1 Year Parts and 90 Day Labor Warranty
  • Roland KD-200-MS 20" V-Drums Acoustic Design Kick Drum Pad
