31% Off

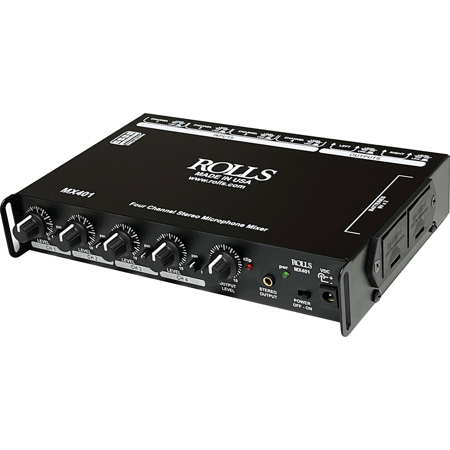

Rolls MX401 4-Channel XLR Stereo Mic/Line Mixer

SKU: ROMX401 MFR: MX401
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this Rolls 4-channel XLR stereo mixer, ideal for recording.
  • Enjoy versatile connectivity with four XLR mic/line inputs for dynamic audio mixing scenarios.
  • Utilize selectable +15V phantom power on each channel for condenser microphones and clear audio.
  • Monitor your mix via the 1/8" headphone output for precise audio adjustments in real-time.
  • Compact and durable design ensures reliability, perfect for on-the-go live sound setups.
  • Low noise performance guarantees clean, professional-grade audio recordings every single time.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Rolls MX401 Specifications

Mixer
  • Number of Analog Input Channels

    4 (4 Mono)

  • Number of Mic Preamps

    4

  • Analog Output Channels

    1x Stereo Master Output

  • Mix Routing

    Stereo Main Mix

  • Faders & Level Adjustment

    No

  • Meters

    Main Meter: 1x Single LED

Signal Processing

Jump to...
  • Gain/Trim Range

    Up to +55 dB

  • Dynamic Processing

    No

  • Sidechain Filters

    No

  • EQ

    No

  • Solo/Mute

    No

  • Channel Output/Source Monitoring

    PFL, Post-Preamp

  • Built-In Effects

    No

Performance

Jump to...
  • Frequency Response

    20 Hz to 20 kHz -3 dB

  • Max Input Level

    -14 dB

  • Output Level

    +14 dB

  • I/O Impedance

    Input:
    600 Ohms (Mic)
    10 Kilohms (Line)

    Output:
    600 Ohms (Mic)
    10 Kilohms (Line)

  • EIN

    -65 dB at Max Gain
    -90 dB (Typical)

  • SNR

    96 dB

  • THD+N

    0.2%

Connectivity

Jump to...
  • Analog Inputs

    4x XLR 3-Pin Balanced Mic/Line Input

  • Analog Outputs

    2x XLR 3-Pin Balanced Mono Line/Mic Output (1 Stereo Pair, Post-Fader)
    1x 1/8" (3.5mm) TRS Unbalanced Stereo Headphone/Record Output (Post-Fader)

  • Phantom Power

    +15 V, Selectable On/Off (Selectable on Individual Inputs)

  • Digital I/O

    No

  • Power Supply Output

    12 to 15 VDC at 500 mA, Center-Negative (Included)

  • Current Consumption

    30 mA

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Alkaline

  • Battery Type

    9-volt

  • Battery Quantity

    2

Physical

Jump to...
  • Rack Mountable

    No

  • Dimensions

    8.5 x 1.5 x 5.8" (21.6 x 3.8 x 14.7cm)

  • Weight

    2.1 lbs (1kg)

About Rolls MX401

An innovative solution for superior audio mixing, the MX401 4-Channel XLR Stereo Mic/Line Mixer is a cutting-edge device engineered to enhance your sound experience. This multifaceted mixer empowers you to amalgamate four microphones or line-level XLR inputs into two balanced stereo outputs, offering unmatched command over your audio signals.

Each of the four XLR inputs is furnished with individually switchable phantom power, MIC or LINE level selection, level control, and a pan control. This high degree of customization guarantees that you can meticulously adjust your audio sources to attain the ideal balance and clarity.

The MX401 features two independent balanced XLR outputs, providing you the versatility to select between MIC or LINE level settings, tailored to your distinct audio needs. For added convenience, a 1/8" inch stereo aux/headphone output is incorporated into the design.

Stay updated with the clip indicator and power indicator, simplifying the task of monitoring the status of your audio signals. The power switch facilitates swift and effortless operation. The MX401's reliability shines in any situation. It can be powered by two 9-Volt alkaline batteries, ensuring continuous performance while on the move. For extended usage, you can utilize the included 15VDC power supply.

Upgrade your audio setup today with the MX401 4-Channel XLR Stereo Mic/Line Mixer, the perfect successor to the popular MX124. Embrace professional-grade audio mixing and seize complete control of your sound with this exceptional audio mixer.

Rolls MX401 Features

  • Four balanced XLR Inputs
  • Two balanced XLR Outputs
  • Switchable Output Level (Line level, or mic)
  • Switchable Phantom Power for each input
  • Level controls for each channel
  • 3.5mm Stereo Output
  • Rolls PS27s 15 VDC external power supply included
  • Powered by two 9 volt batteries or the included power supply

Key Features

  • Achieve pristine sound quality with this Rolls 4-channel XLR stereo mixer, ideal for recording.
  • Enjoy versatile connectivity with four XLR mic/line inputs for dynamic audio mixing scenarios.
  • Utilize selectable +15V phantom power on each channel for condenser microphones and clear audio.
  • Monitor your mix via the 1/8" headphone output for precise audio adjustments in real-time.
  • Compact and durable design ensures reliability, perfect for on-the-go live sound setups.
  • Low noise performance guarantees clean, professional-grade audio recordings every single time.

What's in the box:

  • Rolls MX401 4-Channel XLR Stereo Mic/Line Mixer
  • 15V Power Supply
  • User Manual
  • Rolls 1 Year Limited Warranty
