Roland Rubix22 2 In/2 Out USB Audio Interface

SKU: RORUBIX22 MFR: RUBIX22
Earn VIP Reward Points

Key Features

  • Capture pristine audio with low latency: Perfect for recording vocals & instruments.
  • USB audio interface offers high-resolution, 24-bit/192 kHz audio for studio-quality sound.
  • Seamless connectivity: Includes XLR, 1/4" and MIDI I/O for versatile recording options.
  • Compact & user-friendly design makes this Roland interface ideal for home or mobile studios.
  • Stable drivers ensure reliable performance on Windows, Mac, and iOS for worry-free recording.
  • Direct monitoring feature allows for latency-free recording, so you can hear yourself clearly.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2019-01-21T13:09:13

Rated 4 out of 5

Very Satisfied

Works better than I expected! Coming from the Focusrite 2i2 I didn't know what to expect, but the sound is very clear and the headphone volume is great. Only thing I wish it had was the ability to switch between headphone monitoring and speaker monitoring easily.

BRANSON T.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Roland Rubix22 Audio Interface Specifications

  • Channels

    Record: 2 channels
    Playback: 2 channels

  • Signal Processing

    Interface: 24-bit
    AD/DA conversion: 24-bit

  • Sampling Frequency

    AD/DA Conversion: 44.1, 48, 96, 192kHz

  • Interface

    Hi-speed USB
    MIDI in/out

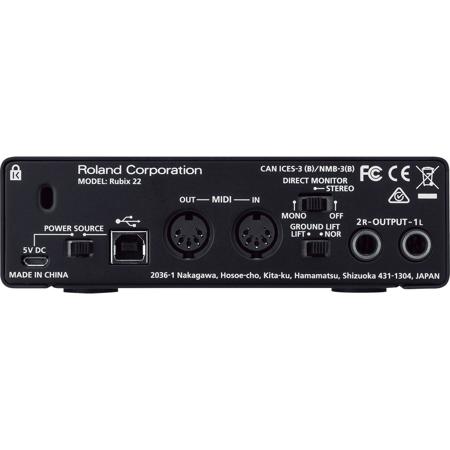

  • Connectors

    Input (1L, 2R) Connectors: XLR, balanced, phantom power (+48 V, 6 mA max.)
    Input (1L, 2R) Jacks: 1/4" TRS phone, balanced, input 1L supports high impedance
    Phones Jack: Stereo 1/4" phone
    Output (1L, 2R) Jacks: 1/4" TRS phone, impedance balanced
    MIDI (In/Out) connectors
    USB port: USB Type-B
    5 VDC Port: USB Micro-B

  • Controllers

    SENS 1L, 2R, knobs
    Hi-Z switch
    48 V switch
    OUTPUT knob
    PHONES knob
    POWER SOURCE switch
    DIRECT MONITOR switch
    GROUND LIFT switch

  • Indicators

    Level indicators (1L, 2R)
    Power indicator
    Hi-Z indicator
    48 V indicator

  • Nominal Input Level

    Input(1L, 2R) Connectors (XLR): -60 to -12 dBu
    Input (1L, 2R) Jacks (1/4" TRS Phone): -44 to +4 dBu

  • Maximum Input Level

    Input (1L, 2R) Connectors (XLR): +2 dBu
    Input (1L, 2R) Jacks (1/4" TRS Phone): +18 dBu

  • Nominal Output Level

    Output (1L, 2R) Jacks: -6dBu, impedance balanced

  • Maximum Output Level

    Output (1L, 2R) Jacks: +8dBu, impedance balanced
    Phones Output: 20mW + 20mW / L + R, 47 Ohms load

  • Headroom

    14dB

  • Input Impedance

    Input (1L, 2R) Connectors (XLR): 4 kOhms or greater (balanced)
    Input(1L, 2R) Jacks (1/4" TRS Phone): 15 kOhms or greater (balanced)
    Input(1L) Jack (1/4" Phone): 500k Ohms or greater when Hi-Z is turned on

  • Output Impedance

    Output (1L, 2R) Jacks: 2k Ohms, balanced
    Phones Jack: 47 Ohms

  • Residual Noise Level (IHF-A, typ.)

    Input (1L, 2R) to Output (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 Ohms, IHF-A, typ.)

  • Dynamic Range

    AD Block Input (1L, 2R) Jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
    DA Block Output (1L, 2R) Jacks: 109 dB typ.

  • Power Supply

    Supplied from computer via USB, 5VDC

  • Current Draw

    500mA

  • Operating System

    Windows 7, 8, 8.1,10
    Mac OS X 10.10 or later
    iPad iOS 9 or later

  • Dimensions (WxDxH)

    5.7 x 6.5 x 1.8" (14.48 x 16.51 x 4.57cm)

  • Weight

    Main unit only: 2.2 lbs (1.00kg)

  • UPC Code

    761294508923

About Roland Rubix22 Audio Interface

Bring your audio recording and playback to a new level of clarity and versatility with the Roland Rubix22 2 In/2 Out USB Audio Interface. This high-resolution audio interface is the perfect fusion of superior sound fidelity, robust build quality, compact design, and essential features for contemporary musicians and producers.

Engineered to support high-resolution audio up to 24-bit/192kHz, the Rubix22 delivers a crystal-clear, defined sound. Its design focuses on minimizing noise from input to output, ensuring your recordings are as clean and pure as possible. The Rubix22's universal USB compatibility ensures seamless integration with both Mac and PC computers, and it even supports iPads, offering the ultimate solution for portable music production and performance.

This 2-in/2-out USB audio interface comes equipped with two low-noise mic preamps with XLR combo jacks, providing a high-definition, clean, and transparent sound. The Hi-Z input accommodates guitar and other high impedance sources, while the MIDI In/Out ports offer additional connectivity options.

The Rubix22 is not just about high-quality sound; it's also about durability and convenience. Its sturdy metal construction is designed to withstand the rigors of travel, and its compact size makes it easy to take anywhere. The interface features large, easy-to-read indicators that display vital information at a glance.

With its low latency, class compliant drivers, the Rubix22 ensures smooth, reliable audio performance. Ground lifts are included for quiet operation in a variety of venues. The package also includes Ableton Live Lite, a powerful studio production and live performance software that pairs perfectly with the Rubix22 right out of the box.

Whether you're recording on-location, producing on-the-go, or performing live, the Roland Rubix22 2 In/2 Out USB Audio Interface is your compact, versatile, and high-quality solution for impeccable sound.

Roland Rubix22 Audio Interface Features

  • High-resolution 2-in/2-out USB audio interface for superior sound fidelity
  • Supports audio up to 24-bit/192kHz for crystal-clear, defined recordings
  • Features two low-noise mic preamps with XLR combo jacks for versatile audio input
  • Universal USB compatibility for seamless integration with Mac, PC, and iPad
  • Sturdy, compact metal construction for portability and durability
  • Includes Ableton Live Lite for powerful studio production and live performance software compatibility

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with low latency: Perfect for recording vocals & instruments.
  • USB audio interface offers high-resolution, 24-bit/192 kHz audio for studio-quality sound.
  • Seamless connectivity: Includes XLR, 1/4" and MIDI I/O for versatile recording options.
  • Compact & user-friendly design makes this Roland interface ideal for home or mobile studios.
  • Stable drivers ensure reliable performance on Windows, Mac, and iOS for worry-free recording.
  • Direct monitoring feature allows for latency-free recording, so you can hear yourself clearly.

What's in the box:

  • Roland Rubix22 2 In/2 Out USB Audio Interface
  • USB Cable
  • Ableton Live Lite Serial Number Card
  • Setup Guide
  • Leaflet
  • Roland 1 Year Parts and 90 Day Labor Limited Warranty
