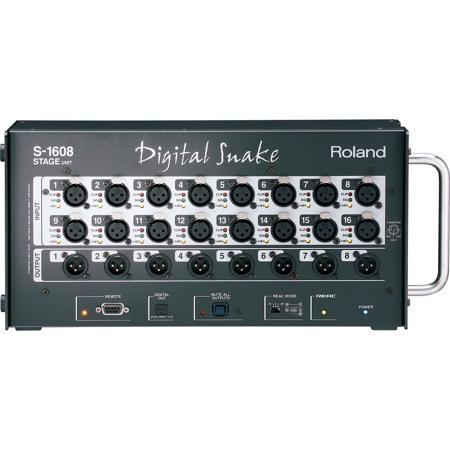

Roland 16x8 Stage Unit Digital Snake System
See all Roland items

Roland 16x8 Stage Unit Digital Snake System, Includes REAC Connector Cover, Ferrite Cores, Rubber Foot, Rack Mount Kit

SKU: ROS1608
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Roland 16x8 Stage Unit Digital Snake System Specifications

  • Number of Channels

    16 in 8 out

  • AD and DA Conversion

    24 bit / 96kHz

  • Frequency Response

    -2dB / +0dB ( at +4 dBu, 20Hz to 20kHz)

  • Total Harmonic Distortion + Noise

    0.05 % or less (Pad: On, Input Gain: +4 dBu, 22Hz to 20kHz)

  • Dynamic Range

    110dB

  • Cross Talk

    -80dB or less (Input Gain: +4 dBu, typ.)

  • Nominal Input Level

    -65 to -10 dBu (PAD: Off), -45 to +10 dBu (PAD: On) (1 dB step, Max. +28 dBu)

  • PAD

    20dB On/Off

  • Input Impedance

    14 kOhms

  • Nominal Output Level

    +4 dBu, Max. +22 dBu

  • Output Impedance

    600 Ohms

  • Recommended Load Impedance

    10 kOhms or greater

  • Residual Noise Level (IHF-A, typ.)

    -80 dBu or less

  • Equivalent Input Noise Level

    -128dB

  • Network Latency

    375 microseconds when using REAC cable only
    (AD > REAC > DA Latency: approx 1.2 ms)

  • Connectors

    16 x Analog Input(XLR type, balanced, phantom power)
    8 x Analog Output(XLR type, balanced)
    Digital Output connector(Optical type)
    REAC Connector(RJ-45 EtherCon type)
    Remote Connector (RS-232C, DB-9 type)

  • Indicators

    Power Indicator, Reac Indicator, Remote Indicator, MUTE ALL OUTPUTS Indicator

  • Power Supply

    AC 115V, AC 117V, AC 220V, AC 230V, AC 240V (50/60Hz)

  • Power Consumption

    45W

  • Phantom Power

    +48V / 14mA (each input, remote controlled)

  • Operation Temperature

    0 to +40 degrees Celsius (+32 to +104 degrees Fahrenheit)

  • Dimensions (H x W x D)

    7 x 15.81 x 5.37" (177.8 x 401.57 x 136.39mm)

  • Weight

    5.5kg (12.12lbs)

  • UPC Code

    761294405086

About Roland 16x8 Stage Unit Digital Snake System

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Roland Roland 16x8 Stage Unit
  • Power Cord
  • REAC Connector Cover
  • Ferrite Cores
  • 4 x Rubber Foot
  • Rack Mount Kit
  • Owner's Manual
  • Roland 1 Year Limited Warranty
