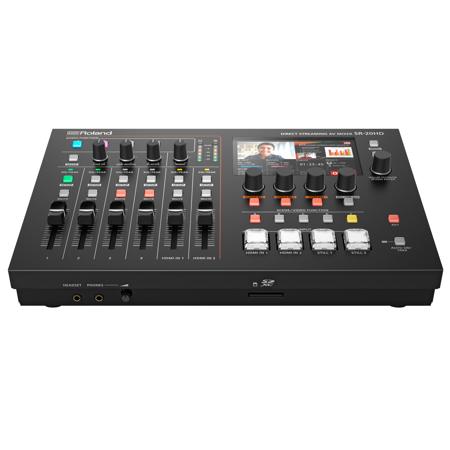

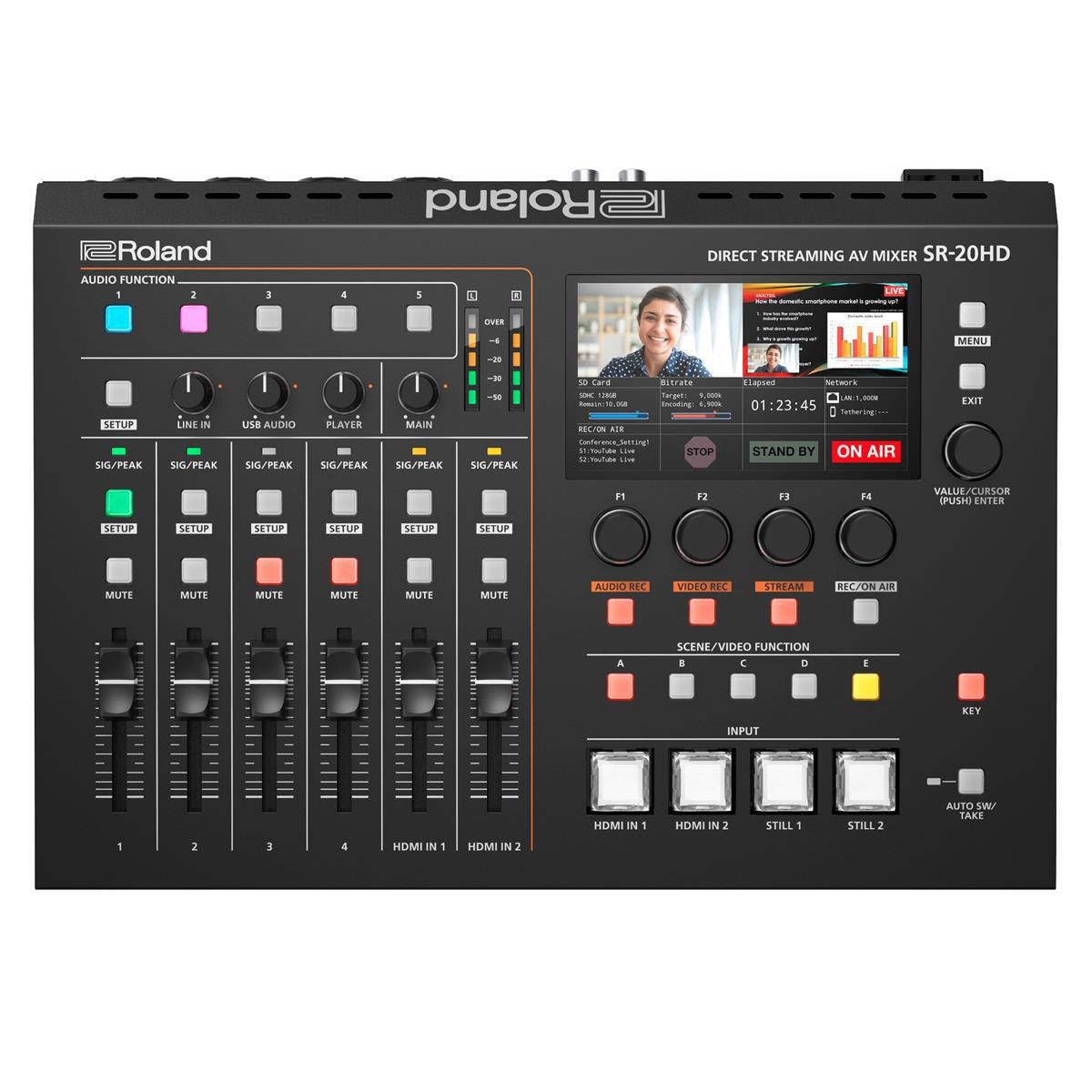

Roland SR-20HD All-In-One Direct Streaming AV Mixer

SKU: ROSR20HD MFR: SR-20HD
Earn VIP Reward Points

Key Features

  • Stream like a pro with the SR-20HD's direct streaming AV mixer capabilities.
  • Achieve high video quality with 1080p output for engaging live productions.
  • Enjoy versatile compatibility with multiple HDMI and audio input options.
  • Set up your live stream quickly with the user-friendly interface and controls.
  • Create dynamic content using built-in video effects like Picture-in-Picture.
  • Record directly to SD card for easy archiving of your real-time streaming events.
See More Product Details
Pre Order Now?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Roland SR-20HD Specifications

Video
  • Video Processing

    4:2:2 (Y/Pb/Pr), 8-bit

  • Input formats

    720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz), WXGA (1280 x 800/60Hz), FWXGA (1366 x 768/60Hz), SXGA (1280 x 1024/60Hz), SXGA+ (1400 x 1050/60Hz), UXGA (1600 x 1200/60Hz), Full HD (1920 x 1080/60Hz), WUXGA (1920 x 1200/60Hz)

  • Output formats

    HDMI OUT MAIN, PVW connectors: 1080/59.94p, 1080/50p

  • Stream and Video Recorder formats

    File Format: MP4

    Codec:
    H.264, target bitrate up to 20 Mbps
    AAC LC 48kHz 16bit Stereo, target bitrate up to 384k bps

  • Video Player

    File Format: MP4 (H.264, AAC)

  • Still Image

    PNG File (.png), Maximum 1920 x 1080 pixels, 24-bit color
    JPEG File (.jpg .jpeg), Maximum 1920 x 1080 pixels, 24-bit color

  • Video Effects

    Scene: Picture in Picture, Split, Picture by Picture
    Transition: Black fade, Mix fade
    Key Composition: Luminance key, Chroma key
    Other: Output fade, Test pattern output, Stream Delay

  • Audio Processing

    24 bits/48 kHz

  • Audio Formats

    HDMI In/Out connectors: Linear PCM, 24 bit/48 kHz, stereo

  • Audio Effects

    Delay, High Pass Filter, Gate, Compressor, Equalizer, Limiter, Test tone output

  • Audio Player

    File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)

Common Section

Jump to...
  • Recording Media

    SDHC/SDXC card (sold separately)

  • Other Functions

    Panel lock function
    EDID emulator

Connectors

Jump to...
  • Input Connectors

    HDMI In 1-2 connectors: HDMI type A (Multi-format supported)
    Audio In 1-4 jacks: Combo type
    XLR type: balanced, phantom power (DC 48 V, 10 mA), (1 GND, 2 HOT, 3 COLD)
    1/4" TRS phone: balanced

  • Output Connectors

    HDMI Out Main, PVW connectors: HDMI type A
    Line Out jack: RCA phono type
    Phones jack: Stereo miniature phone type

  • Input/Output connector

    Headset jack: Stereo miniature phone type (3.5 mm, 1/8-inch, TRRS 4-pole, CTIA)

  • Other Connectors

    USB VIDEO IN port: USB A (USB 3.0)
    USB CONTOL port: USB A (USB 2.0)
    LAN (DIRECT STREAM) port: RJ-45, 1000BASE-T
    DC In jack

Audio Input/Output

Jump to...
  • Nominal Input Level

    Audio In 1-4 jacks: -52 to +4 dBu (Maximum Input level: +24 dBu)
    Line In jack: -10 dBu (Maximum Input level: +10 dBu)

  • Input Impedance

    Audio In 1-4 jacks (XLR type, with phantom power): 5 k ohms
    Audio In 1-4 jacks (XLR type, without phantom power): 7 k ohms
    Audio In 1-4 jacks (TRS 1/4-inch phono type): 7 k ohms
    Line In jack: 18 k ohms

  • Nominal Output Level

    Audio Out jack: -10 dBu (Maximum Output level: +10 dBu)
    Phones jack: 72 mW + 72 mW (32 ohms)

  • Output Impedance

    Audio Out jack: 1 k ohm

  • Display

    4.3" (109.22mm) TFT color LCD: 480 x 272 dots

  • Power Supply

    AC adapter

  • Current Draw

    3.5 A

  • Power Consumption

    42 W

  • Operation Temperature

    +32 to +104 degrees F (+0 to +40 degrees C)

  • Dimensions (W x D x H)

    11.81 x 8.46 x 3.38" (300 x 215 x 86mm)

  • Weight

    Excluding AC Adapter: 5.29 lbs (2.4kg)

  • UPC Code

    761294517925

About Roland SR-20HD

Roland SR-20HD All-In-One Direct Streaming AV Mixer.

Powerful, portable, and simple to operate, the SR-20HD Direct Streaming AV Mixer makes it easy to manage the modern livestreaming requirements of your business or organization. No computer is required, and everything needed to switch and stream is integrated into a single unit that anyone can use with minimal training. When consistency, dependability, and network security are top priorities, the SR-20HD delivers professional results every time.

Roland SR-20HD All-In-One Direct Streaming AV Mixer

Hi-Res Streaming for Live Action.

The SR-20HD's Standard mode supports 1080p resolution at 30 FPS, which provides excellent quality for most livestreaming applications. But if you're broadcasting live sports or other events with quick movement, you can select High Quality mode to increase the frame rate to 60 FPS and reduce motion blur.

Hi-Res Streaming for Live Action

The Roland SR-20HD All-In-One Direct Streaming AV Mixer is an advanced, professional-grade solution for all your switching and streaming needs. This sophisticated device is designed to handle the modern livestreaming requirements of various settings, including businesses, educational institutions, and houses of worship, without the need for a computer.

This high-quality AV mixer is not only powerful and portable but also easy to operate. It integrates a video switcher, audio mixer, preview screen, recorder/player, and streaming encoder into a single unit, simplifying the process and reducing points of failure.

The SR-20HD is equipped with two HDMI inputs, allowing you to connect common video sources such as cameras, smartphones, tablets, and computers running presentation software. A USB video input is also available for a Roland UVC device or compatible webcam. A wide range of audio inputs are available for mics, music players, electronic musical instruments, and more.

With the SR-20HD, you can easily manage your livestreaming on platforms like Facebook, YouTube Live, Twitch, or via RTMP to your CDN. This innovative device is packed with advanced Roland A/V technologies, reducing the need for technical support and experienced staff members.

One of the standout features of the SR-20HD is its unique Adaptive Bitrate function, which monitors the quality of the network connection and automatically adjusts the streaming rate to reduce interruptions due to bandwidth issues. It also offers mobile phone tethering, allowing a mobile phone with a 4G or 5G data plan to be used as the primary streaming connection or a redundant backup.

The SR-20HD also provides a Safety Delay function, buffering up to 60 seconds of video and audio to prevent offensive content from being broadcast to your audience. It also allows for dual streaming destinations, encoding and broadcasting livestreams to two independent channels on the same platform.

The SR-20HD is designed with advanced audio control, catering to the divergent audio needs of single presenters, conference panels, and even music performances. It also offers automated switching and mixing, making it easier for you to focus on delivering your message to the audience.

With the SR-20HD, you can confidently stream unscripted events, manage your livestreams with ease, and deliver professional results every time.

Roland SR-20HD Features

  • All-in-one enterprise solution for direct livestreaming without a computer
  • Built-in encoders for transmitting two simultaneous livestreams up to 1080p/60 FPS
  • Adaptive Bitrate function reduces freezing and dropouts due to bandwidth issues
  • Safety Delay function to keep accidental moments from being broadcast
  • Scene function for executing multiple tasks with a single touch
  • Record streams directly to an SDXC card for archiving, editing, and distribution
  • Ease your workflow with Video Auto Switching and Auto Mixing functions
  • Play sound effects, still images, and video sources from an SDXC card to enhance your livestreams
  • LCD monitor for checking video I/O and delivery status in real time
  • Three video inputs: two HDMI and one USB video class
  • Two HDMI outputs: Main and Preview
  • High-quality audio mixer with eight input channels for mics and line-level devices

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Stream like a pro with the SR-20HD's direct streaming AV mixer capabilities.
  • Achieve high video quality with 1080p output for engaging live productions.
  • Enjoy versatile compatibility with multiple HDMI and audio input options.
  • Set up your live stream quickly with the user-friendly interface and controls.
  • Create dynamic content using built-in video effects like Picture-in-Picture.
  • Record directly to SD card for easy archiving of your real-time streaming events.

What's in the box:

  • Roland SR-20HD All-In-One Direct Streaming AV Mixer
  • AC Adapter
  • Power Cord
  • Leaflet Using The Unit Safely
  • Startup Guide
  • Roland 1 Year Limited Warranty
