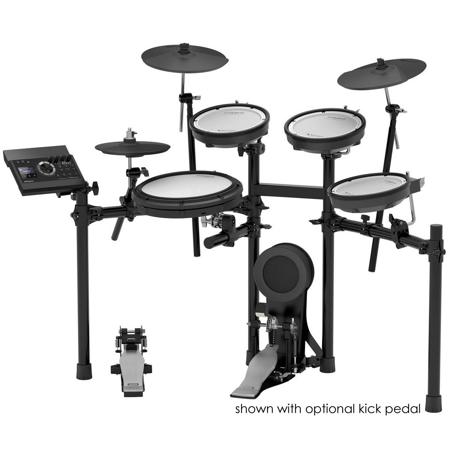

Roland TD-17KV V-Drums Electronic Drum Set

SKU: ROTD17KVS

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2019-03-19T13:07:17

Rated 5 out of 5

Best quality you can get !

Lovely my Roland drums

Ruben L.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Roland TD-17KV Specifications

TD-17 Module

TD-17 Module

Jump to...
  • Drum Kits

    100 (Preset: 50)

  • Instruments

    310

  • User Sample

    Internal memory size: 32MB / 100 User Samples (includes preloaded factory samples)/ Total sound length: 295 seconds in mono, 148 seconds in stereo
    File Format: WAV (44.1 kHz, 16/24 bit)

  • Kit Effects

    Ambience: 25 types
    Multi-effect: 30 types
    Pad EQ: Can be assigned to each pad

  • Master Effects

    Bass (EQ), Treble (EQ)

  • Bluetooth

    Version 4.2 / Supports A2DP (Audio) and MIDI over Bluetooth

  • Song Player

    File format: WAV (44.1 kHz, 16/24 bit) and MP3

  • Recorder

    Recording method: Real-time
    Maximum length: 60 minutes (Temporary recording length: 3 min)

  • Connectors

    TRIGGER INPUT connector (DB-25 type): Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-Hat Control
    Extra Trigger Input jacks: 2 (AUX, CRASH2) (stereo 1/4" phone type)
    OUTPUT jacks (L/MONO, R) (stereo 1/4" phone type)
    PHONES jack (stereo 1/4" phone type)
    MIX IN jack (stereo miniature phone type)
    SDHC SD Card Slot
    MIDI OUT connector
    USB COMPUTER port

  • Interface

    Hi-Speed USB (USB-MIDI, USB-Audio)

  • Display

    128 x 64 backlit LCD

  • Power Supply

    AC Adaptor (DC 9 V)

  • Current Draw

    490 mA

PDX-12 V-Pad

Jump to...
  • Pad size

    12" (30.48cm)

  • Triggers

    2 (Head, Rim)

  • Connectors

    TRIGGER OUTPUT jack

  • Acceptable rod diameters

    9.0 - 13.0mm (0.35 - 0.51")

  • Usable pipe size

    Non-supported

PDX-8 V-Pad

Jump to...
  • Pad size

    8" (20.32cm)

  • Triggers

    2 (Head, Rim)

KD-10 Kick Pad

Jump to...
  • Pad size

    5" (12.70cm)

  • Triggers

    1 (Head)

  • Acceptable pedal

    Single pedal, Twin pedal

  • Connectors

    TRIGGER OUTPUT jack

CY-8 Cymbal Pad

Jump to...
  • Size

    12" (30.48cm)

  • Triggers

    2 (Head, Rim)

General

Jump to...
  • Dimensions (WxDxH)

    TD-17 Module: 223 x 196 x 65mm (8.78 x 7.72 x 2.56")
    PDX-12 V-Pad: 430 x 360 x 105mm (16.93 x 14.17 x 4.13")
    PDX-8 V-Pad: 266 x 326 x 62mm (10.47 x 12.83 x 2.44")
    KD-10 Kick Pad: 210 x 209 x 443mm (8.27 x 8.23 x 17.44")
    FD-9 Hi-Hat Control Pedal: 139 x 365 x 158mm (5.47 x 14.37 x 6.22")
    CY-8 Cymbal Pad: 290 x 295 x 45mm (11.42 x 11.61 x 1.77")

  • Weight

    TD-17 Module: 2 lbs (0.91kg)
    PDX-12 V-Pad: 2.1kg (4.63 lbs)
    PDX-8 V-Pad: 1.3kg (2.87 lbs)
    KD-10 Kick Pad: 3.3kg (7.28 lbs)
    FD-9 Hi-Hat Control Pedal: 2.0kg (4.41 lbs)
    CY-8 Cymbal Pad: 0.7kg (1.54 lbs)

  • UPC Code

    761294221372

12 Accessories for Roland TD-17KV V-Drums Electronic Drum Set

  • All Accessories (12)
  • Pedals (3)
  • Headphones (3)
  • Amplifiers (2)
  • Drum Acessories (2)
  • Bags & Cases (2)

About Roland TD-17KV

FEATURED REVIEWS

Best quality you can get !

By Ruben L.

Lovely my Roland drums

Become a Better Drummer, Faster
When you're serious about drumming, you need a kit to match your ambition. The V-Drums TD-17 series lets your technique shine through, backed up with training tools to push you further. Combining a TD-50-class sound engine with newly developed pads results in an affordable electronic drum kit that's authentically close to playing acoustic drums - accurately mirroring the physical movement, stick coordination and hand/foot control that every drummer needs. Meanwhile, an array of built-in coaching functions will track your technique, measure your progress and increase your motivation. Becoming a better drummer is still hard work, but the TD-17 can help you get there.

• Drum sound module: TD-17
• Snare: PDX-12
• Tom: 3x PDX-8
• Hi-Hat: CY-5
• Hi-Hat control pedal: FD-9
• Crash: CY-8
• Ride: CY-8
• Kick: KD-10
• Drum Stand: MDS-4V

Authentic Playing Feel and Skill-Building Tools
If you regularly play acoustic drums, you shouldn't have to change your playing style to use an electronic drum kit. You can use the same playing techniques you'd use on an acoustic kit, without compromise, thanks to the large 12" snare. And being based on the flagship TD-50 sound engine, the sounds faithfully reproduce the character and tone of acoustic drums, with lightning fast response time.

Realistic Pads for Uncompromising Performance
Some electronic kits use much smaller pads than you'd typically find on an acoustic kit - but because the drumstick has to hit the center of each drum, these smaller pads can actually feel further away from you. This is especially true if you've moved from playing a 14" acoustic snare to an 8" rubber pad. The 12" dual-mesh PDX-12 snare is tension-adjustable for authentic and satisfying rebound, while the height of the snare hoop is much closer to that of an acoustic snare so you can hit an open rim shot with a natural stick angle. If you're serious about drumming, the TD-17 lets your technique shine through without asking you to compromise.

Great Sounds Lead To Great Performances
The TD-17's sound engine delivers a superior drumming experience thanks to Prismatic Sound Modeling technology inherited from the flagship TD-50 sound module. Begin playing and you'll notice a wider dynamic range and dramatic tonal changes, depending on where and how hard you strike the pad. From rim shots, rolls, flams and ghost notes on the snare to dramatic crash hits, sustained cymbal swells and half-open position on the hi-hats along with different sounds for the bow and edge, every nuance is detailed, accurate and ultra-smooth.

The Feel of an Acoustic Kick Drum (But Quieter)
A nice solid kick drum usually comes with a nice loud noise. Sometimes that's exactly what you want, but your family or neighbors may not feel the same way. The KD-10 kick pad absorbs much of the noise thanks to its rubber cover combined with a dedicated cushion, but retains that satisfying kick drum 'thud' when a beater buries into a bass drum head, so it's ideal for playing at home where loud noise may cause problems. It's compatible with all standard kick pedals, single or double kick.

The Essential Tools to Improve Your Drumming
First thing's first: drummers should be able to keep a solid beat before moving on to the exciting stuff. But mastering the basics is exciting too, as it provides a solid foundation for building your skills, not forgetting that tracking your progress is highly motivating too. The TD-17 module includes a Coach Mode to support your daily exercise regime. You can warm up, develop your sense of groove, tempo and timing and even work on your stamina - all with a score that tells you how you're doing.

Deepen Your Sense of Groove
The Time Check mode develops your accuracy when playing to a click track. The number of accurate strikes is shown as a percentage value and the screen indicates whether your pad strikes were on, ahead or behind the beat. Used often, Time Check is an invaluable aid to working the groove.

Fine-Tune Your Internal Timing
Quiet Count mode helps refine your 'internal' sense of time and tempo. For the first few measures, the click is heard at the specified volume, but for the next few measures the click cuts out. During the silenced bars, you will rely on your internal sense of timing, aiming to stay in time as the click returns. Your internal metronome will grow stronger the more you use it.

Effective Warmup Routines Made Easy
Warm-up mode makes your daily practice sessions more enjoyable - which means you're more likely to do them. Choose to warm up over five, ten or fifteen minutes, with varying rates of difficulty and then select a tempo. A range of exercises will then prepare you for some serious drumming, including changes to rhythm type, changes to tempo and evaluating the accuracy of your playing. At the end, you'll get an overall grade - which you'll want to improve on.

Join Your Favorite Band. No Audition Necessary
Although playing endless drum solos is undeniably fun, it only takes you so far. Push your drumming further by playing along with your favorite bands or rehearse the tunes you'll be playing on stage. Wirelessly stream favorite songs from your smartphone to the TD-17 via Bluetooth audio and hear the entire performance through your headphones. You can even record your performance and then listen back, to decide where you need to improve.

Play With Your Band - Wherever They Are
If you're in a band, getting everyone together can be tough. But rather than go to rehearsals, how about bringing rehearsals to you Even with no band, you can still work on your drum parts every day, by playing along to your song demos streamed from your smartphone. And once you really are in the same room, you'll be more than ready.

Record. Listen. Learn
Listening back to your drumming is one of the best ways to improve. The TD-17 module has an onboard recorder so you can play and then review what you actually played, not what you thought you played. You can even play along and record with the onboard demo songs or audio stored on SD card - it's also a great way to capture audio for YouTube videos.

Preparing To Play Live
When rehearsing, it's important to play with the same familiar drum sounds that you'll be using on stage. The TD-17 includes a variety of expressive modelled drum sounds inherited from the flagship TD-50, so you'll be sure to find the perfect drum sound as you prepare for the gig.

Find the Perfect Kit for the Music You Play
The TD-17 module includes 50 premium quality drum kits for a range of professional musical scenarios. The warm, wooden vibes of 'Acoustic'. The small-but-tight 'Compact' which captures the sound of smaller stages. The wide-open expanse of 'Arena Stage'. The clarity of "Studio" which is perfect for recording. The richness of "Fat Rock" or the intensity of "Speed Metal" whatever music gets you going, the TD-17 will help you get there.

Get To Know Your Gig Venue - Before You Arrive
Before the gig, become familiar with the acoustics of the venue you'll be performing at. Use the onboard reverb and ambience of the TD-17 module to simulate the sound and become acclimatized to the venue - all from the comfort of your home.

Create Your Very Own Signature Drum Kit
Today's pro drummers craft their signature drum sounds by layering many sound elements; a snare sound is made by layering different snare sounds, each with their respective attack elements, ambience and so on. The TD-17 also lets you create your signature drum kit, by using onboard pitch control, EQ, effects and more.

Import Samples and Sound Just Like the Record
For some performances, you simply have to use a specific sound. The TD-17 module can import samples so you can trigger original single-shot drum samples or introduce entire audio phrases, sequences or vocals. Imported samples can even be mixed and layered with internal TD-17 sounds, to create a powerful and full drum sound that matches the real thing.

Learn At Your Own Pace with Online Lessons and Desktop Applications
Aside from studying with a drum teacher, there are plenty of online drum lessons or computer-based learning methods. The TD-17 is designed to help you improve - however you like to learn.

Play Along To Video Lessons - Streamed Wirelessly From Your Smartphone
Place your smartphone on the module's front panel, connect wirelessly via Bluetooth and hear the drum lesson audio (along with your playing) coming loud and clear through headphones or monitors. Watching a video lesson and then playing along has never been easier.

Have Fun Improving - With Melodics
Have fun and become a better drummer by downloading Melodics for V-Drums: a free application for Windows or Mac computers. With a series of free drum lessons that develop your sense of rhythm, timing and muscle memory, subscribers can also access additional premium content including over 70 lessons, with more being added each week.

Performance under Pressure, For Years to Come
Roland V-Drums are built to be reliable - from the sound module, to the pads, right down to the pedals; each component must deliver, across every scenario and in every performance. The pads and pedals used in the TD-17 series are engineered to take a beating, but their playability also endures. And as your skills and ambitions grow, you can expand your TD-17 by adding an extra crash cymbal or second snare - safe in the knowledge that you're using the same durable components favored by pro drummers.

Roland TD-17KV Features

  • Develop stick-control and correct playing technique with large 12" double-mesh snare
  • Natural, rich and dynamic drum sounds, inherited from flagship TD-50 sound engine
  • Learn expressive foot control and pedal technique with the KD-10 Kick pad
  • Two (crash & ride) cymbals and expansion possibilities support your individual playing style and performance
  • Improve your sense of time with Time Check and Quiet Count as part of Coach Mode
  • Warm-up menu provides a basic daily exercise routine to help your playing progress
  • Enjoy playing along with your favorite tunes by streaming audio from your smartphone to the TD-17 via Bluetooth audio
  • Adjust the ambience of each kit to match the venues you perform at
  • Customize the preset drum kits to match your preferred drum sound
  • Import your own samples for a drum sound that matches the original recording
  • Watch video lessons on your smartphone and play along, while the audio comes through the headphones via Bluetooth
  • Develop your playing and timing with free to download 'Melodics for V-Drums' software (PC/Mac)

What's in the box:

  • Roland TD-17 Drum Sound Module
  • PDX-12 2-Ply Mesh Head Snare Pad
  • 3x PDX-8 2-Ply Mesh Head Tom Pads
  • KD-10 Kick Pad
  • CY-5 Hi-Hat Cymbal Pad
  • FD-9 Hi-Hat Control Pedal
  • CY-8 Crash Cymbal Pad
  • CY-8 Ride Cymbal Pad
  • MDS-4V Drum Stand
  • Sound Module Mount
  • AC Adaptor
  • Special Connection Cable
  • Drum Key
  • Knob Bolt (for PDX-12)
  • Setup Guide
  • Owner's Manuals
  • Roland 1 Year Parts and 90 Day Labor Year Warranty
