Roland V-1HD HD Video Switcher - BUndle With Matrox Monarch HD Device Video Streaming and Recording, StarTech 25' High Speed HDMI Cable

SKU: ROV1HDA MFR: V-1HD A
Earn VIP Reward Points

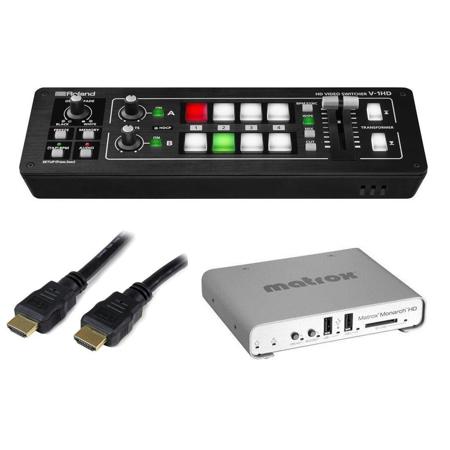

PACKAGE INCLUDES:

  • Roland V-1HD HD Video Switcher
    Roland V-1HD HD Video Switcher
  • +
  • Matrox Monarch HD Simultaneous Live Streaming & Recording
    Matrox Monarch HD Simultaneous Live Streaming & Recording
  • +
  • StarTech 25' High Speed HDMI Cable, 24 AWG
    StarTech 25' High Speed HDMI Cable, 24 AWG
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Create seamless live streams with this Roland V-1HD HD video switcher bundle.
  • Enjoy low latency video switching with HDMI inputs, perfect for dynamic presentations.
  • Easily record and stream high-quality video using the included Matrox Monarch HD device.
  • Achieve reliable connection with the StarTech HDMI cable for uninterrupted streaming.
  • This affordable video switcher offers professional-grade features for stunning visuals.
  • Experience good compatibility with various devices, ensuring versatile video production.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-07-15T10:01:03

Rated 5 out of 5

Great build!

Just unpacked it. So far I’ve been very impressed with build, weight and surface level options.

KYLE U.

2017-09-30T12:19:23

Rated 5 out of 5

Great All Around Switcher for IMAG and Streaming

This switcher fills the bill as an "in studio" multi-camera switcher, to live conference IMAG and live streaming switching. I have been using a Roland V-4EX switcher for the past many years. It works fine except that three of the four channel are only 480 and the streaming output is USB 2.0. The V-1HD has 1080 for all channels but no streaming output, which I solved below. Many times I am faced with doing IMAG and live streaming together for conferences. If I try to run the switcher through the streaming system and then pull the signal from there to the IMAG, there is a definite delay. I had to find a way to run everything through hardware and split the signal out to both IMAG and to streaming system. I am using a Magwell Capture Plus HDMI to USB converter to a system running Wirecast. Another neat thing is I can have a laptop connected to one of the channels running New Blue FXs Titler Live and use the luminescence key to run cool graphics and lower thirds from hardware before splitting signal. The only problem I have with V-1HD is with the preview screen output. I see the four windows from the four channels, but can't view an output window. I solved that by adding a monitor to the HDMI splitter going to IMAG and streaming system. Overall, this is a great switcher for the price, you just need to do a bunch of wiring to achieve best results.

RON H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Roland V-1HD Specifications

  • Video: Processing

    4:2:2(Y/Pb/Pr), 8-bit

  • Video: Input Connectors

    HDMI Input 1-4: 4x Type A(19pins)

  • Video: Output Connectors

    HDMI Output: Type A(19pins) / HDMI Preview: Type A(19pins)

  • Video: Input Formats

    HDMI: 720/59.94p,720/50p(Format switch = 720p)
    HDMI: 1080/59.94i,1080/50i,1080/59.94p, 1080/50p(Format switch = 1080i or 1080p)

  • Video: Output Formats

    HDMI: 720/59.94p,720/50p(Format switch = 720p)
    HDMI: 1080/59.94i,1080/50i(Format switch = 1080i)
    HDMI: 1080/59.94p,1080/50p(Format switch = 1080p)

  • Video: Effects

    Transition: Cut, Mix (Dissolve/FAM/NAM/Mosaic), Wipe (30 types), Transformer(11 types)
    Effects: Negative, Emboss, Colorize, Colorpass, Posterize, Silhouette, Monocolor, Findedge, Flip, WH-Lumikey, BK-Lumikey, GR-Chromakey, BL-Chromakey, PinP(1/4), PinP(1/2), Split(H-Stretch). Split(H-Center), Split(V-Stretch), Split(V-Center)

  • Audio: Processing

    Sampling rate: 24bit/48kHz

  • Audio: Input Connectors

    Digital: 4x HDMI Input 1-4 (19 pins)
    Analog: Audio In (RCA pin type), Mic (Stereo mini type, plug-in power supported)

  • Audio: Output Connectors

    Digital: HDMI Output (HDMI Type A 19 pins), HDMI Preview (HDMI Type A 19 pins)
    Analog: Audio Out (RCA pin type), Phones (Stereo mini type)

  • Audio: Input Level

    Audio In: -10dBu (Maximum: +8dBu), Mic: -41 - -13dBu (Maximum: -1dBu)

  • Audio: Input Impedance

    Audio In: 15 kOhms, MIC:10 kOhms

  • Audio: Output Level

    Audio Out: -10dBu (Maximum: +8dBu), Phones: 72mW + 72mW (32Ohms)

  • Audio: Output Impedance

    Audio Out: 1kOhms, Phones: 10Ohms

  • Audio: Effects

    EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect

  • Other Connectors

    USB: B Type (for remote control from PC), Midi: IN, OUT/THRU

  • Other Functions

    Memory (8 types), Freeze (input video captured), Bpm Sync (auto transition synchronized to tempo), Output Fade (White/Black)

  • Power Supply

    AC adaptor

  • Current Draw

    1.5A

  • Power Consumption

    18W

  • Dimensions (W x D x H)

    313 x 102 x 59mm / 12.32 x 4.02 x 2.32"

  • Weight

    1.2kg / 2.65lbs (excluding AC adaptor)

  • UPC Codes

    840014194704, 790750244273, 761294507209, 065030849401

About Roland V-1HD

FEATURED REVIEWS

Great All Around Switcher for IMAG and Streaming

By RON H.

This switcher fills the bill as an "in studio" multi-camera switcher, to live conference IMAG and live streaming switching. I have been using a Roland V-4EX switcher for the past many years. It works fine except that three of the four channel are only 480 and the streaming output is USB 2.0. The V-1HD has 1080 for all channels but no streaming output, which I solved below. Many times I am faced with doing IMAG and live streaming together for conferences. If I try to run the switcher thro...

View full Review

Great build!

By KYLE U.

Just unpacked it. So far I’ve been very impressed with build, weight and surface level options.

Let the V-1HD HD Video Switcher elevate your video production and live event management to professional heights with its compact, portable design and robust feature set. This versatile switcher simplifies the process of connecting and managing multiple HDMI video sources such as video cameras, smartphones, computers, tablets, and Blu-ray players. With the simple push of a button or a slide of the T-Fader, you can effortlessly switch between sources, making it an ideal solution for news broadcasts, corporate training sessions, or live performances.

The V-1HD boasts four HDMI inputs, supporting a range of video resolutions up to Full HD 1080p. This ensures compatibility with various devices, allowing both progressive and interlaced signals to be used simultaneously. The switcher also supports HDCP for input from copy-protected sources, ensuring seamless integration with all your HDMI equipment.

Professional switching is made intuitive with large, back-lit buttons that provide clear visual cues for source selection, even in low-light conditions. The Preview/Program switching mimics broadcast-style operations, while the TRANSFORMER buttons offer instant video switching and effects application. Transition effects, including CUT, MIX, and WIPE, can be selected quickly, and the auto-scan function can automatically cycle through video inputs for dynamic presentations.

Enhance your visual storytelling with the V-1HD's advanced compositing effects. Picture-in-picture, split functions, chroma key, and luminance key are all at your disposal for creating engaging multi-layered content. Real-time filter effects, such as silhouette and color pass, can be applied and adjusted with ease, providing a creative edge to your video productions.

Audio is just as important as video, and the V-1HD doesn't disappoint with its integrated 12-channel digital audio mixer. Mix audio from HDMI ports, line-level, and mic-level inputs, all with delay functions to ensure perfect sync with your video. The audio-follow function and built-in reverb and mastering capabilities allow for high-quality sound production, with the final mix outputted both through HDMI and separate stereo jacks.

Setting adjustments and audio mixing are straightforward with the on-screen menu display and hardware controls. The multi-view preview screen shows all input sources simultaneously, ensuring confident monitoring and seamless transitions. Choose from multiple view modes, including Multi-view, Output, and Preview, to best suit your monitoring needs.

For enhanced control, the V-1HD can be operated remotely via USB or MIDI connections, using the dedicated V-1HD RCS application on a PC, Mac, or iPad, or through MIDI-compatible music instruments and sequencers. This flexibility allows for seamless integration into your existing workflow and the ability to map controls to popular visual performance software.

In this bundle, the V-1HD HD Video Switcher comes with the Matrox Monarch HD device for high-quality video streaming and recording, ensuring that your content can be shared live or post-event with ease. Additionally, the included StarTech 25' high-speed HDMI cable provides reliable, long-distance connectivity, ensuring that your setup is both efficient and professional.

Choose the V-1HD HD Video Switcher bundle for a user-friendly, high-quality, and durable solution that brings efficiency and versatility to your video production and live event needs.

Roland V-1HD Features

  • Compact, portable HD Video Switcher ideal for professional video production and live events
  • Features 4 HDMI inputs, supporting devices with up to Full HD 1080p resolution
  • Professional switching capabilities with intuitive back-lit buttons & versatile transition effects
  • Advanced compositing effects including picture-in-picture, split functions, chroma key, and luminance key
  • Integrated 12-channel digital audio mixer with delay functions for perfect video-audio sync
  • Remote control functionality via USB or MIDI, compatible with PC, Mac, or iPad

Warranty Information

This product has a limited warranty of 3 months.

Key Features

  • Create seamless live streams with this Roland V-1HD HD video switcher bundle.
  • Enjoy low latency video switching with HDMI inputs, perfect for dynamic presentations.
  • Easily record and stream high-quality video using the included Matrox Monarch HD device.
  • Achieve reliable connection with the StarTech HDMI cable for uninterrupted streaming.
  • This affordable video switcher offers professional-grade features for stunning visuals.
  • Experience good compatibility with various devices, ensuring versatile video production.

What's in the box:

  • Roland V-1HD HD Video Switcher
  • AC Adaptor
  • Power Cord
  • Cord Hook
  • Owner's Manual
  • Roland 90 Day Limited Warranty
  • Bundle includes:
  • Matrox Monarch HD Device
  • Video Streaming and Recording
  • StarTech 25' High Speed HDMI Cable
