PACKAGE INCLUDES:
Note: 1 or more items are unavailable for immediate shipping
See Options
2 Year
$79.99
3 Year
$99.99
4 Year
$129.99
Need help? Ask our experts.
Review Summary
2020-07-15T10:01:03
Just unpacked it. So far I’ve been very impressed with build, weight and surface level options.
KYLE U.
2017-09-30T12:19:23
This switcher fills the bill as an "in studio" multi-camera switcher, to live conference IMAG and live streaming switching. I have been using a Roland V-4EX switcher for the past many years. It works fine except that three of the four channel are only 480 and the streaming output is USB 2.0. The V-1HD has 1080 for all channels but no streaming output, which I solved below. Many times I am faced with doing IMAG and live streaming together for conferences. If I try to run the switcher through the streaming system and then pull the signal from there to the IMAG, there is a definite delay. I had to find a way to run everything through hardware and split the signal out to both IMAG and to streaming system. I am using a Magwell Capture Plus HDMI to USB converter to a system running Wirecast. Another neat thing is I can have a laptop connected to one of the channels running New Blue FXs Titler Live and use the luminescence key to run cool graphics and lower thirds from hardware before splitting signal. The only problem I have with V-1HD is with the preview screen output. I see the four windows from the four channels, but can't view an output window. I solved that by adding a monitor to the HDMI splitter going to IMAG and streaming system. Overall, this is a great switcher for the price, you just need to do a bunch of wiring to achieve best results.
RON H.
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
4:2:2(Y/Pb/Pr), 8-bit
HDMI Input 1-4: 4x Type A(19pins)
HDMI Output: Type A(19pins) / HDMI Preview: Type A(19pins)
HDMI: 720/59.94p,720/50p(Format switch = 720p)
HDMI: 1080/59.94i,1080/50i,1080/59.94p, 1080/50p(Format switch = 1080i or 1080p)
HDMI: 720/59.94p,720/50p(Format switch = 720p)
HDMI: 1080/59.94i,1080/50i(Format switch = 1080i)
HDMI: 1080/59.94p,1080/50p(Format switch = 1080p)
Transition: Cut, Mix (Dissolve/FAM/NAM/Mosaic), Wipe (30 types), Transformer(11 types)
Effects: Negative, Emboss, Colorize, Colorpass, Posterize, Silhouette, Monocolor, Findedge, Flip, WH-Lumikey, BK-Lumikey, GR-Chromakey, BL-Chromakey, PinP(1/4), PinP(1/2), Split(H-Stretch). Split(H-Center), Split(V-Stretch), Split(V-Center)
Sampling rate: 24bit/48kHz
Digital: 4x HDMI Input 1-4 (19 pins)
Analog: Audio In (RCA pin type), Mic (Stereo mini type, plug-in power supported)
Digital: HDMI Output (HDMI Type A 19 pins), HDMI Preview (HDMI Type A 19 pins)
Analog: Audio Out (RCA pin type), Phones (Stereo mini type)
Audio In: -10dBu (Maximum: +8dBu), Mic: -41 - -13dBu (Maximum: -1dBu)
Audio In: 15 kOhms, MIC:10 kOhms
Audio Out: -10dBu (Maximum: +8dBu), Phones: 72mW + 72mW (32Ohms)
Audio Out: 1kOhms, Phones: 10Ohms
EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
USB: B Type (for remote control from PC), Midi: IN, OUT/THRU
Memory (8 types), Freeze (input video captured), Bpm Sync (auto transition synchronized to tempo), Output Fade (White/Black)
AC adaptor
1.5A
18W
313 x 102 x 59mm / 12.32 x 4.02 x 2.32"
1.2kg / 2.65lbs (excluding AC adaptor)
192223004948, 728736010055, 728736055766, 728736000308, 761294507209, 702534254057
Great All Around Switcher for IMAG and Streaming
By RON H.
This switcher fills the bill as an "in studio" multi-camera switcher, to live conference IMAG and live streaming switching. I have been using a Roland V-4EX switcher for the past many years. It works fine except that three of the four channel are only 480 and the streaming output is USB 2.0. The V-1HD has 1080 for all channels but no streaming output, which I solved below. Many times I am faced with doing IMAG and live streaming together for conferences. If I try to run the switcher thro...
View full Review
Great build!
By KYLE U.
Just unpacked it. So far I’ve been very impressed with build, weight and surface level options.

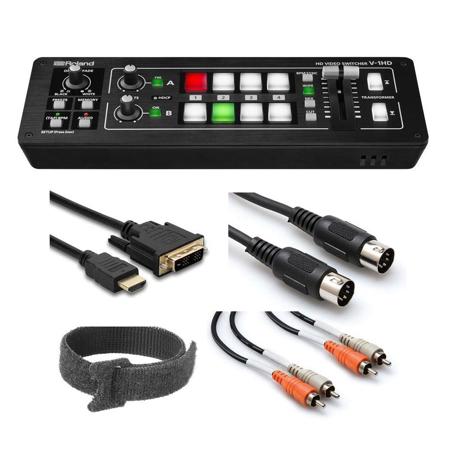

Before you embark on your next video production project, consider the V-1HD HD Video Switcher Bundle. This compact, high-quality switcher is designed for professional use, offering the versatility to connect and switch between various video sources such as video cameras, smartphones, computers, tablets, and Blu-ray players. With its user-friendly interface, you can easily manage your video feeds with a simple push of a button or slide of the T-Fader.
The V-1HD HD Video Switcher supports up to Full HD 1080p resolution, ensuring crisp, clear video quality. It features four HDMI inputs, accommodating a variety of equipment and allowing for simultaneous use of both 1080i and 1080p signals. Progressive signal processing ensures accurate display of video signals input from a PC, while HDCP support allows for input of copy-protected content from devices like Blu-ray disc players.
This durable video switcher is equipped with large, back-lit buttons for intuitive video switching, even in low-light conditions. It features professional, broadcast-style Preview/Program switching, with red lit buttons indicating the current source being output and green lit buttons indicating the next transition. The V-1HD also includes TRANSFORMER buttons for instant video switching or effect application, and three transition selection buttons for quick style changes.
For creative live event video switching, the V-1HD offers advanced video effects, transforming your video into captivating visuals. It supports picture-in-picture and split functions, ideal for seminars and presentations. The switcher also supports chroma key and luminance key, perfect for creating professional broadcasts with green screen backgrounds or overlaying computer-generated titles on video sources.
The V-1HD HD Video Switcher also includes a 12-channel digital audio mixer, capable of mixing 4 stereo audio inputs from the HDMI ports, a stereo line level input, and a mic level input. Each channel is equipped with a delay function to synchronize the video and audio, enhancing the overall quality of your production.
Remote control is possible with the dedicated V-1HD RCS application on a PC, Mac, or iPad connected via a USB cable. This feature allows you to switch video, mix audio, or change settings from a distance. The V-1HD also transmits MIDI over USB, and its controls can be mapped to popular visual performance software applications.
In conclusion, the V-1HD HD Video Switcher Bundle is a versatile, user-friendly solution for high-quality, professional video production. Its compact size makes it portable and ideal for use anywhere, from live events to corporate training productions.
