Roland Multi-Format Video Switcher, 24 bits/48kHz Audio Processing

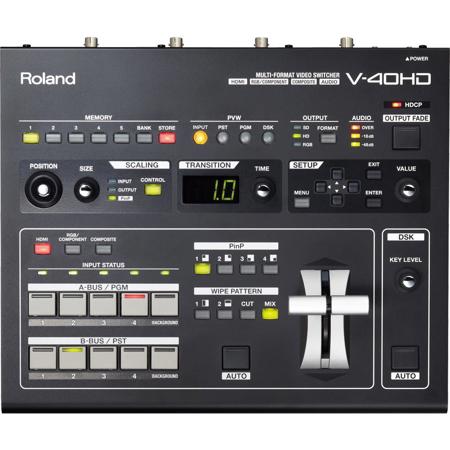

The Roland Multi-Format Video Switcher is a welcomed addition to the powerful V-1600HD and V-800HD model lineup. The V-40HD Live Video Switcher is ideal for any live event or installation that requires the freedom to connect a variety of sources whether they be digital or analog, computer or video format. It is particularly positioned to support configurations using popular HDMI cameras as well as computers.

The V-40HD handles true multi-format video meaning there is no need to match input sources to the output resolution. Every input has it's own broadcast quality scaler that individually scales each source as required to fit any output resolution chosen.

The Roland V-40HD boasts twelve inputs on four channels plus one (background) and 5 output connectors with independent scalers on the inputs and output allowing you to connect HDMI/DVI, RGB, component and composite sources. It supports input/output resolutions up to 1080/60p or 1920x1200. The V-40HD is HDCP compliant which allows you to mix copy-protected game and Blu-ray content with other computer and camera sources. It features an input source multi-viewer output that provides a convenient monitoring solution when connected to an HDMI monitor.

The V-40HD is equipped with four input systems (Inputs 1 - 4). Each of these systems has three types of input connectors --- HDMI, RGB/Component and Composite --- allowing you to connect a total of twelve video devices. For output, the V-40HD provides three systems: Output (HDMI, RGB/Component, Composite), Output 2 (HDMI, RGB/Component) and Preview (HDMI).

Supports 1080p video signals -twice the rate of conventional HD and uses 4:4:4/10-bit internal signal processing. This asserts all the vividness of high-realism, high-detail camera and computer sources.

The V-40HD features an HDCP mode that lets you input and switch commercial digital video from sources such as Blu-ray Discs or game consoles encoded using HDCP digital copyright management technology. This lets you produce video with unrestricted freedom --- for instance, compositing a video feed from a Blu-ray Disc or tablet computer against a background from a live camera. Output to a display can be made via HDMI.

The V-40HD can input background music, narration, or other analog sound sources, mix and sync the video and audio and then output the result via HDMI.

Input

Scaling: Zoom and Adjustment. The V-40HD features scalers that let you make settings independently for every input source. With these, you can take input sources of different resolutions and adjust to any sizing.
Input Selectors: Select from among HDMI, RGB/Component and Composite as the connector for each input. With just one touch, you can access the video source from any of the three pieces of equipment connected to the respective inputs.
Input Connectors: 1 - 4 Support for three formats per input. [HDMI] Up to WUXGA, 1080p [RGB/Component] Up to WUXGA, 1080p [Composite] 480i or 576i HDMI inputs support an embedded audio signal.
Audio Input: Mix analog audio into HDMI video. The V-40HD is equipped with inputs for analog audio equipment. This enables you to embed analog audio in the HDMI video output.

Output

Output Selectors: Three types of output formats to choose from. Select SD, HD, or RGB simply by pressing a button.
PVW (Preview) Selectors: Chooses the view displayed on a preview monitor. Select a four-way split screen, PST, PGM or DSK to display. The resolution and refresh rate of monitor output is fixed at 1920 x 1080/60 Hz (progressive). Use an HDMI monitor that supports HDCP and 60p signals. When INPUT is selected (four-way split), the sources are displayed using a reduced frame rate.
Output Connectors: Connect monitors, projectors, or recording equipment. [HDMI] Up to WUXGA, 1080p [RGB/Component] Up to WUXGA, 1080p [Composite] 480i or 576i In HDCP mode, no video signals are output from the RGB/Component and composite connectors.

Effects

DSK ( Downstream Keyer): Composite logos and text into output video. You can overlay logos and text onto composited and switched video. Scene transitions underneath logos or text that remain displayed is possible. - P in P Two images can be combined into one video image. You can select any of four positions for an inset screen: top left, bottom left, top right, or bottom right. You can also freely adjust the size of the inset screen.
Wipe Pattern: Easy selection of video transition effects.
Video Fader: Switch the sources at the speed you want. Using the video fader (T-bar) lets you carry out scene transitions, fade-ins and fade-outs manually at exactly the speed you want.

Functions
Memory: Save panel settings. You can save the V-40HD's settings in internal memory. Each of the five memory banks can hold five sets of settings, letting you save a total of 25 configurations.

Control Interface
Controllable the V-40HD via any MIDI device - A Roland digital audio mixer like the M-200i V-Mixer can link to the V-40HD for audio-follows-video application. Connect another V-40HD for more inputs. Use RS-232C for integrated remote control. - It's possible to connect a computer, wall panel or other remote device and use it to control switching, effects and other operations.

USB Port: For saving the internal memory. - This lets you connect a USB flash drive and save the internal memory to it. The V-40HD also includes an audio input bus with volume and delay settings allowing you to embed audio into the HDMI output signal, which is especially useful for streaming and recording applications.

The Multi-Zoom feature can be enabled when one input source is shared internally with up to three more inputs - essentially daisy-chaining it. The scaler for each input can zoom into any position in the video image giving the appearance that additional cameras are connected - creating a virtual multi-camera environment. Additional effects include a down stream keyer (DSK), Picture-in-Picture and multiple transitions.

The unit is noise-free because of a unique and efficient heat-radiating design that eliminates the need for a cooling fan. Both MIDI and RS-232 are supported allowing control and integration with various devices like a V-Mixer for audio-follows-video applications or remote control using a wall panel.

The V-40HD supports a variety of system design and creative production options. The V-40HD's affordable price point and powerful features enables customers wanting to transition into an HD workflow. The V-40HD Video Mixer strengthens Roland's Multi-format video mixer line-up and is positioned to fill a variety of needs of video production for live event, corporate, educational and house of worship applications using HDMI and computer sources.
