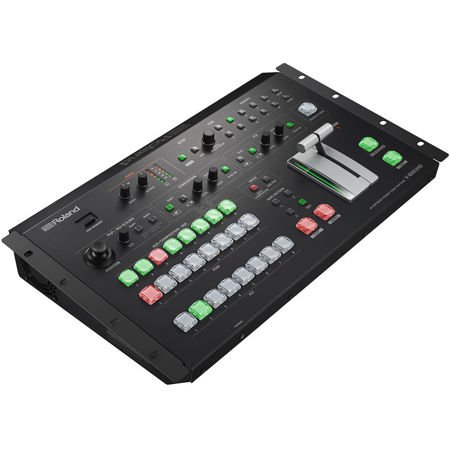

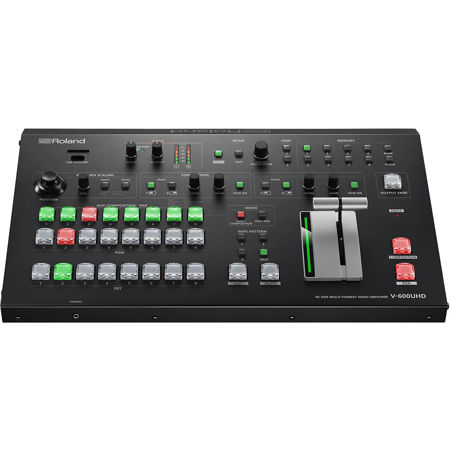

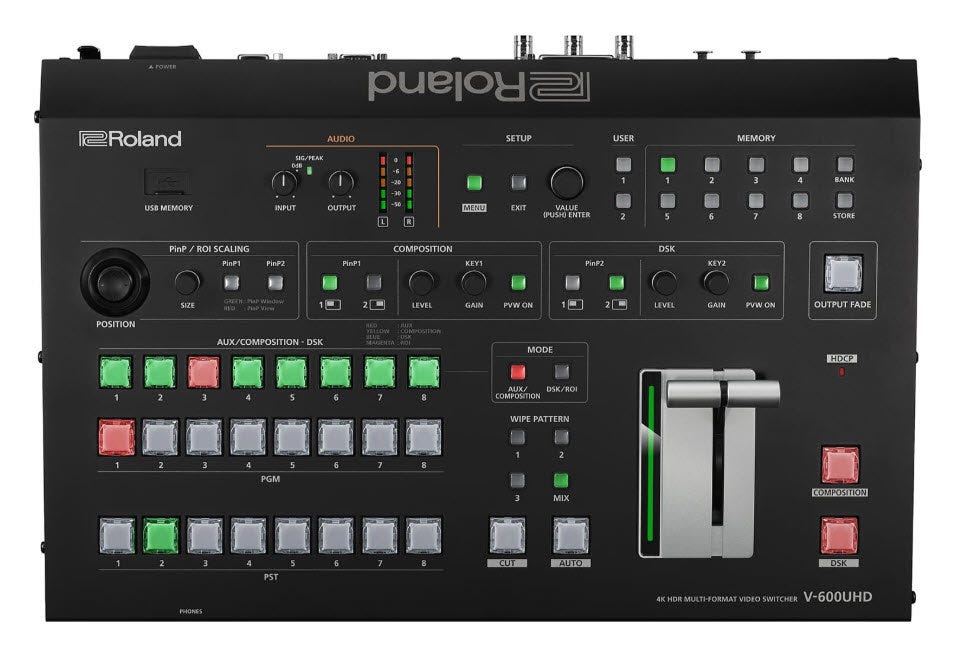

Roland V-600UHD 4K HDR Multi-Format Video Switcher

The Right I/O for Your Show

The V-600UHD has four HMDI 2.0 and two 12G SDI inputs, perfect for events needing several computer and video playback sources complete with IMAG camera support. Each input independently supports input and scaling of HD, Full HD, UHD 4K, and DCI 4K, as well as PC resolutions from UXGA to DCI 4K — with no converters needed. AUX destination switching makes it easy to include down-stage confidence monitors, while the configurable multi-view monitor lets you see all your sources, programs and previews — at a glance. Each output also supports downscaling to Full HD for outputting to streaming encoders or other HD-equipped destination displays.

4K Without Compromise

The V-600UHD uses High Dynamic Range [HDR] so your events look amazing. You don’t just see more pixels, you see better, more dynamic-looking pixels that preserve the details in the darkest and brightest areas of an image. HDR provides well-balanced stage lighting without oversaturation for IMAG (and it’s easier to achieve compared with using SDR.) And SDR dynamic range signals can also be input and switched with the V-600UHD.

A More Vivid Color Space

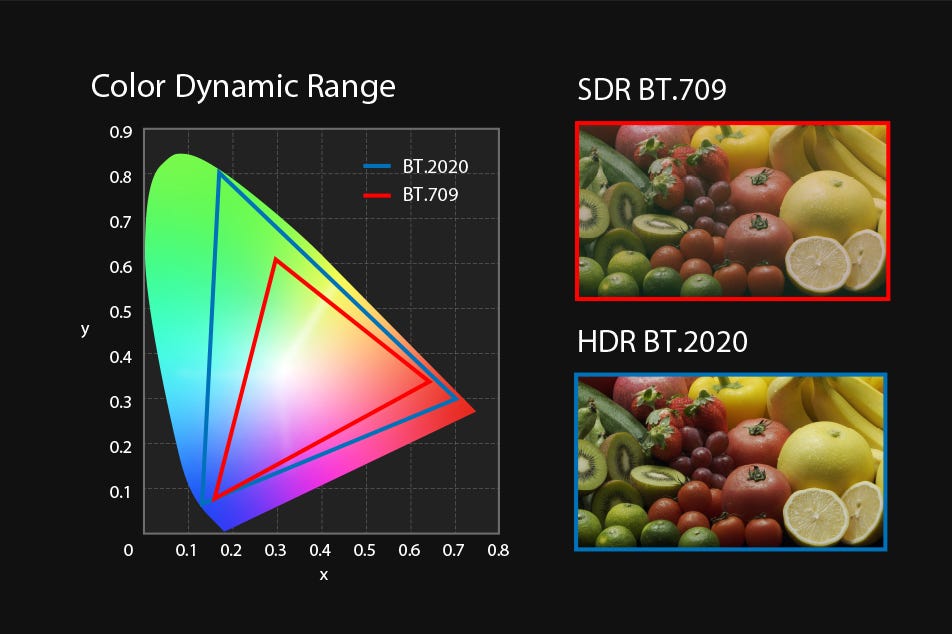

The V-600UHD supports BT.2020, the highest-specification Wide Color Gamut (WCG), as well as RGB and BT.709 standards to display the widest range of visible colors. This provides an increased level of realism and improved color accuracy, especially for red and yellow color ranges.

10-bit 4:4:4 Pixel-accurate Color

Internal 10-bit Color Depth processing reduces color banding and sharpens high-detail sources from computers. This makes it easier to read small fonts and other fine details, even when drastically scaled and magnified.

Support for DCI Cinema 4K Resolution

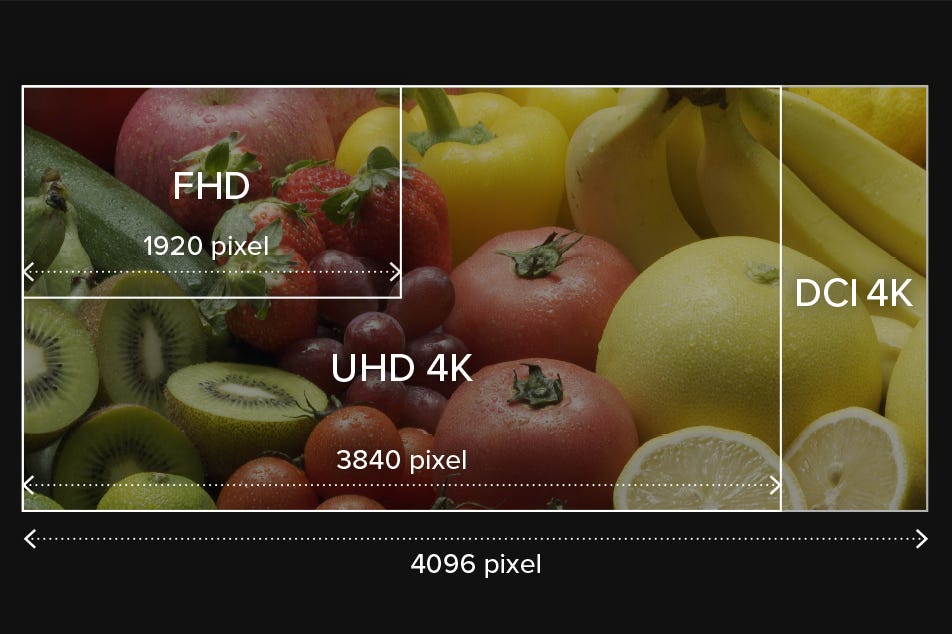

Not all 4K content has the same aspect ratio. Although 4K content is always 2160 pixels high, DCI or “Cinema 4K” is 4096 pixels wide, which is 256 pixels wider than UHD. The V-600UHD lets you switch and display content at the originally intended aspect ratio, without cropping or letterboxing.

Make your events stand out with the V-600UHD 4K HDR Multi-Format Video Switcher, a state-of-the-art solution for transitioning to 4K workflows. This advanced video switcher, equipped with Roland's Ultra Scaler technology, allows for seamless integration of Full HD and 4K sources, outputting at multiple resolutions. This means you can leverage the high pixel density of 4K camera sources even in Full HD workflows, ensuring visually stunning and problem-free productions.

Experience 4K without compromise. The V-600UHD doesn't just deliver more pixels, it harnesses the true capabilities of 4K. With High Dynamic Range (HDR), this video switcher ensures your events look exceptional, preserving details in both the darkest and brightest areas of an image. HDR provides well-balanced stage lighting without oversaturation, making it easier to achieve compared to using SDR. Plus, SDR dynamic range signals can also be input and switched with the V-600UHD.

Enjoy a smooth, crisp video image with full 60Hz frame rate support, eliminating the blur common in fast motion displayed at 30Hz refresh rates. The V-600UHD also supports BT.2020, the highest-specification Wide Color Gamut (WCG), as well as RGB and BT.709 standards. This ensures the widest range of visible colors, enhancing realism and improving color accuracy, especially in red and yellow color ranges.

The V-600UHD's internal 10-bit color depth processing reduces color banding and sharpens high-detail sources from computers, making small fonts and other fine details easier to read, even when drastically scaled and magnified. It also supports DCI Cinema 4K Resolution, allowing you to switch and display content at the originally intended aspect ratio, without cropping or letterboxing.

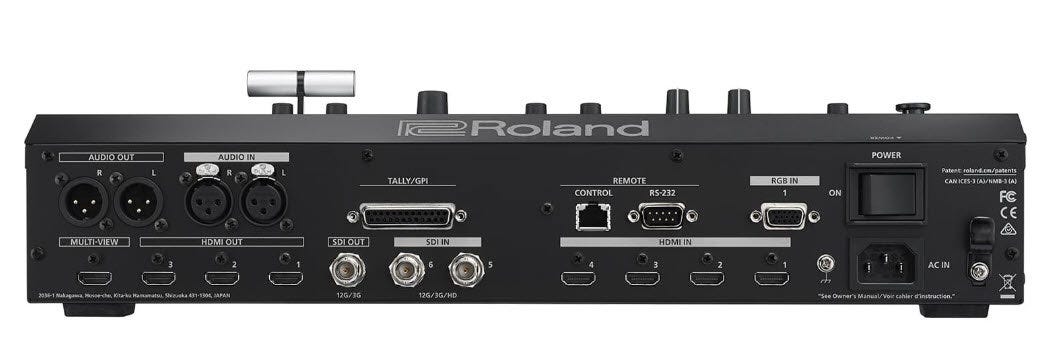

Designed with the right I/O for your show, the V-600UHD features four HDMI 2.0 and two 12G SDI inputs, perfect for events requiring multiple computer and video playback sources, complete with IMAG camera support. Each input independently supports input and scaling of HD, Full HD, UHD 4K, and DCI 4K, as well as PC resolutions from UXGA to DCI 4K - all without the need for converters.

The V-600UHD also offers built-in Region of Interest (ROI), allowing you to capture all the action with a single 4K camera. This feature lets you crop out up to eight "camera shots" from a single 4K camera pointed at the stage, increasing your production value without increasing your camera count, complexity, or costs.

Get creative with composition using the V-600UHD's two Picture-in-Picture windows (PnP) that offer more than simple fixed inset windows. With fully customizable aspect ratios, sizes, and input source scaling, you can display whatever you want, wherever you want it. Combine flexible PnP with the ultra-wide pixel count of DCI 4K to create engaging and impressive screen sets.

The V-600UHD also excels in audio management, with flexible 24-bit 48kHz audio processing that lets you avoid problems before they occur. You can de-embed audio from the currently selected source and send it to an external sound mixer using Audio Follows Video. Program audio returning from the same console can also be embedded in one or all video outputs and then sent to the web, a recorder, or overflow room.

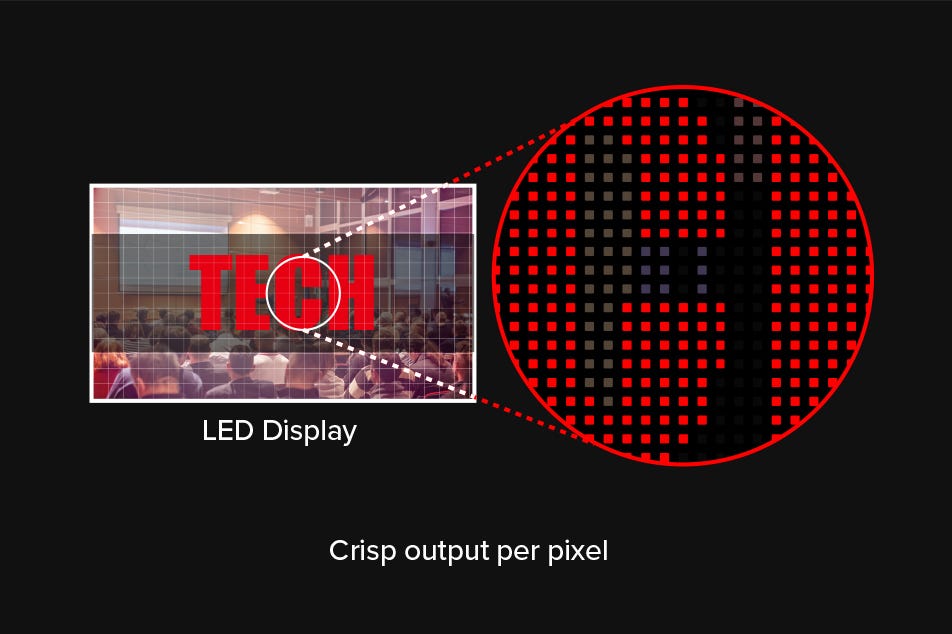

Finally, the V-600UHD is the best solution for working with LED displays. With support for DCI Cinema 4K Resolution, you can switch content to display images up to 4096 pixels wide, fulfilling the creative vision of ambitious event designers. The V-600UHD's high-quality "dot-by-dot" output scaling allows you to directly connect to an LED display controller at the exact pixel dimensions, without the extra expense and increased latency of a dedicated scaling processor.
