About Roland V-60HD
PLUG-N-PLAY PRODUCTION SWITCHER WITH AUDIO FOR LIVE EVENT AND PRODUCTION.
Live event production and streaming continues to grow and the demand for more features requires a sophisticated feature set. The V-60HD simplifies your set-ups and combines the best of both worlds that includes SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet and other video sources. The combination of powerful audio features that include multi-channel embedded audio, XLR and RCA analog inputs, de-embedded audio from digital SDI or HDMI sources plus a variety of video connections with a Program and Aux Bus makes the V-60HD ideal for a variety of live event production and streaming applications.
Live Production.
Corporate event production is the fastest growing live event space with companies hosting town halls, meetings, trainings, new product announcements, both in person and streaming.
- The V-60HD is portable and small enough to be used in multiple locations in an office or outside meeting location.
- The four SDI inputs and two HDMI inputs are perfect for switching cameras and computers at the same time for dynamic presentations.
- Not all cameras support full 1080p so the de-interlacer on the SDI inputs allows allows you to mix and match 1080i and 1080p SDI video sources multiple camera without external converters.
- Audio is easier to mix than ever before using the V-60HD’s auto mixing function that will automatically balance audio levels from multiple microphones and video sources freeing up the operator to focus on switching the video for the event.
Education.
Video communication helps improve the effectiveness of education when used for streaming lectures, assemblies, distance learning, sports, live performances or theater productions.
- Multi destination outputs include Program, Preview and AUX buses and make it easy to send the main output to the primary screen or live stream and presenter notes to a presenter’s monitor.
- Audio auto-mixing automatically adjusts audio level based on weighting ensuring even levels for the room mix, presenter to send to recording, live stream or in-room speakers.
- Educators can use the multi-channel audio embed function to record 8 discreet audio channels to an SDI video recorder to fix audio issues in later editing or separate multi-language audio sources post event.
- The V-60HD’s user interface is easy for students, novices and can be controlled remotely through the LAN port using Roland’s Remote-Control Software from PC or Mac.
- For fixed installations, the V-60HD can be remotely controlled through the RS-232 port using touch panel interfaces making it easy to control functions.

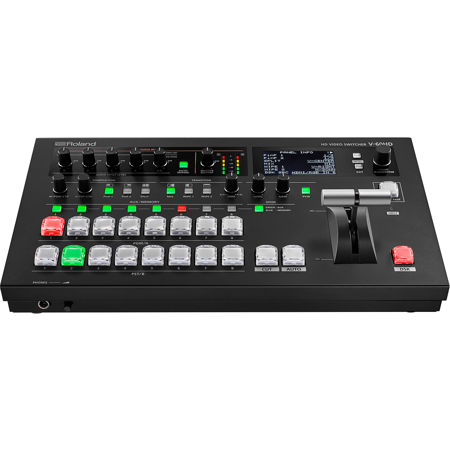

Professional User Interface.
Professional broadcast cross point buttons with PGM/PST LED color indicators. Rugged T-Bar, DSK quick edit knobs for key level and gain. Two dedicated PinP and Split buttons with knobs for center framing of Split and PinP placement. Change transition type using either mix or two preset wipe buttons with dedicated transition dissolve time knob. Front panel 3-inch LCD display with quick access menu navigation to adjust switcher parameters.
Video Composition.
The V-60HD includes a DSK (downstream keyer), Picture-in-Picture (PinP), Split composition effects ideal for creating news style broadcasts and corporate presentations. PinP window shapes include rectangle, circle, heart and diamond patterns to add a special touch to special events. Cropping of PinP and adjusting of SPLIT center portion (Ver.2.0) are suitable for composition of vertically long screen of smart phone.
The DSK can be used for overlaying titles, song lyrics, logos or graphics coming from the video sources with up to three layers of composition. The DSK supports both Luminance Keying (Black/White) and Chroma Keying (Blue/Green) for compositing two video sources plus the additional layer of PinP plus your background video ensuring creative live production environments.

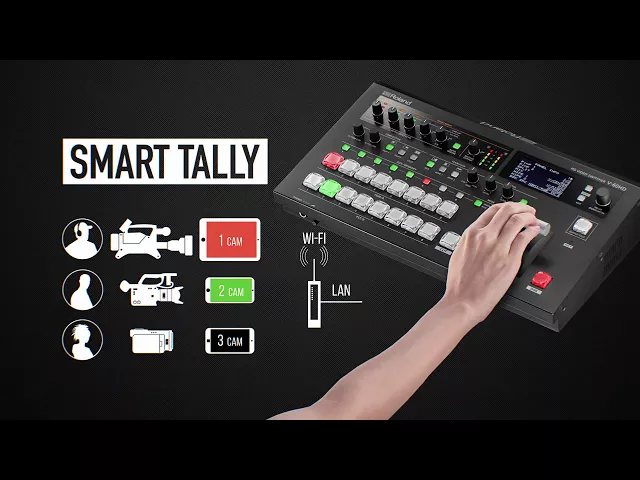

SMART TALLY.
Roland’s innovative Smart Tally wireless tally system strengthens camera operator confidence and ends the hassle of custom made tally cable harnesses. Configured using standard IP protocols, Smart Tally turns smartphones, tablets, computers or ANY web browser into a fully functioning tally light including GREEN for Preview and RED for Program.
REMOTE CONTROL.
Extending the V-60HD’s audio mixer with outboard USB control surfaces is an economical alternative to using a dedicated full-size audio mixer. 3rd party USB MIDI control devices are instantly recognizable by Mac and Windows PCs including the V-60HD Remote Control Software.
