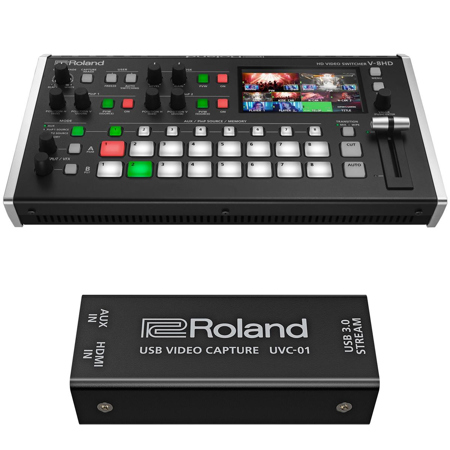

Roland V-8HD 18-Channel HD Video Switcher, 8x HDMI Inputs, Built-in Multi-Viewer Preview Monitor with Video Capture Device

SKU: ROV8HDK MFR: V-8HD K
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Roland V-8HD 18-Channel HD Video Switcher, 8x HDMI Inputs
    Roland V-8HD 18-Channel HD Video Switcher, 8x HDMI Inputs
  • +
  • Roland UVC-01 USB Video Capture Device
    Roland UVC-01 USB Video Capture Device
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Elevate live streams with the Roland V-8HD's pristine HD video quality and seamless switching.
  • Easily manage multiple sources using the 8 HDMI inputs on this versatile video switcher.
  • Create dynamic presentations with built-in multi-viewer and real-time video effects.
  • Enjoy reliable connectivity for flawless live production, thanks to the robust design.
  • Capture and stream directly to your computer using the included UVC-01 USB video capture device.
  • Achieve professional audio mixing with integrated effects like EQ and noise gate for clear sound.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CARLOS G : the google say good product

Reviews about this item

Review Summary

2022-02-25T02:16:48

Rated 5 out of 5

Roland V-8HD great product!

Great Video/Audio Switcher! Allows us to stream line our livestream presentation with multiple inputs in a compact setup. Love the PIP functions on the Roland V-8HD.

DEMARCUS B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Roland V-8HD Specifications

Video
  • Video Processing

    4:2:2 (Y/Pb/Pr), 8-bit

  • Input Connectors

    Input 1-6: HDMI type A x 6
    Input 7-8: HDMI type A x 2

  • Output Connectors

    Output 1-3: HDMI type A x 3

  • Supported Video Input Formats

    Input 1-6
    720p/59.94Hz
    720p/50Hz
    1080i/59.94Hz, 1080p/59.94Hz, 1080p/60Hz, 1080p/29.97Hz, 1080p/30Hz
    1080i/50Hz, 1080p/50Hz, 1080p/25Hz
    1080p/23.98Hz, 1080p/24Hz

  • Supported Video Input Formats.

    Input 7-8
    480i/59.94Hz, 480p/59.94Hz, 720p/59.94Hz, 1080i/59.94Hz, 1080p/59.94Hz, 1080p/60Hz, 1080p/29.97Hz, 1080p/30Hz
    576i/50Hz, 576i/50Hz, 720p/50Hz, 1080i/50Hz, 1080p/50Hz, 1080p/25Hz
    1080p/23.98Hz, 1080p/24Hz
    VGA (640 x480/60Hz), SVGA (800 x600/60Hz), XGA (1024 x768/60Hz)
    WXGA (1280 x800/60Hz), SXGA (1280 x1024/60Hz)
    FWXGA (1366 x768/60Hz), SXGA+ (1400 x1050/60Hz)
    UXGA (1600 x1200/60Hz), WUXGA (1920 x1200/60Hz)

  • Still Image

    Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
    PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color

  • Supported Video Output Formats

    Output 1-2:
    720p/59.94Hz
    720p/50Hz
    1080i/59.94Hz
    1080i/50Hz
    1080p/59.94Hz
    1080p/50Hz

    Output 3:
    1080p/59.94Hz
    1080p/50Hz

  • Video Effects

    Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
    Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key)
    Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: White or Black), Test pattern output

  • Audio Processing

    Sampling rate: 24 bits/48 kHz

  • Audio formats

    Linear PCM, 24 bits/48 kHz, 2ch

  • Audio Effects

    Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output

Connectors

Jump to...
  • Input Connectors

    Input 1-8: HDMI Type A x 8
    Audio In: RCA phono type

  • Output Connectors

    Output 1-3: HDMI Type A x 3
    Audio Out: RCA phono type
    Phones: Stereo miniature type

  • Other Connectors

    USB Memory: USB A type (for USB flash drive)
    Remote: USB B Type (for remote control from iPad)
    CTL/EXP:1/4-inch TRS phone type

  • Other Functions

    Preset Memory (8 types)
    Panel lock function
    EDID Emulator
    Auto Switching
    Auto Input Detect

Audio I/O

Jump to...
  • Input Level

    Audio In: -10 dBu (Maximum: +8 dBu)

  • Input Impedance

    Audio In: 38 k ohms

  • Output Level

    Audio Out: -10 dBu (Maximum: +8 dBu)
    Phones: 92 mW + 92 mW (32 ohms)

  • Output Impedance

    Audio Out: 1 k ohm
    Phones: 10 ohms

General

Jump to...
  • Display

    4.3" TFT Color LCD: 480 x 272 dots

  • Power Supply

    AC Adapter

  • Current Draw

    3.3 A

  • Power Consumption

    39.6 W

  • Operation Temperature

    +32 to +104 degree F (+0 to +40 degree C)

  • Dimensions (H x W x D)

    2.75 x 12.48 x 7.59" (7 x 31.7 x 19.3cm)

  • Weight

    4 lbs (2kg)

  • UPC Codes

    192223235991, 761294518014, 761294513378

Related Articles & Videos

Roland Announces the New V-8HD, an All-in-One Solution for Live Event Switching

Roland Announces the New V-8HD, an All-in-One Solution for Live Event Switching

With today's announcement of the new V-8HD video switcher, Roland has simplified the live stream and production process for content creators. The HD video switcher uses an all-HDMI workflow and...

Read more

About Roland V-8HD

FEATURED REVIEWS

Roland V-8HD great product!

By DEMARCUS B.

Great Video/Audio Switcher! Allows us to stream line our livestream presentation with multiple inputs in a compact setup. Love the PIP functions on the Roland V-8HD.

The V-8HD 18-Channel HD Video Switcher is a dynamic tool that enhances your video production with its advanced layering and effects capabilities. This high-definition switcher allows you to create visually engaging content with five composition layers, enabling you to customize your production according to specific client needs. The layers include a mixable live background video layer, two picture-in-picture layers or chroma/luminance key effects, and a downstream keyer layer.

This ultra-mobile and lightweight device, weighing approximately 4 lb./2 kg, is designed for easy portability and efficiency. Its compact size allows it to fit seamlessly into any live production environment, even those with limited setup space. The V-8HD is equipped with eight HDMI inputs, a built-in 18-channel audio mixer, and external battery power support, making it one of the most versatile and efficient HDMI switchers on the market.

The V-8HD also offers seamless memory recall, allowing you to store and recall unique looks with just a few button presses. Its eight preset memories and powerful composition effects engine ensure a smooth transition between different looks. The device also caters to different visual content needs with assignment buttons for sending any connected input devices to a dedicated aux output without affecting the main feed.

The built-in 4.3-inch multi-viewer display of the V-8HD reduces the need for additional gear. This single screen allows you to monitor all eight video inputs, PGM, and PVW plus menu overlay. The input windows display camcorder recording status and embedded audio levels. You can also connect a larger external TV for a more immersive multi-viewer experience.

The V-8HD ensures a crystal-clear sound mix with its studio-grade, 18-channel audio mixer. This feature allows both professionals and beginners to create engaging mixes with signals from the eight HDMI inputs and stereo RCA inputs. The device also includes a preset effects library for various production environments.

The V-8HD also offers automated video switching with three technology-assisted automatic switching modes. It also features record triggering and confirmation via HDMI, allowing operators to trigger Atomos recorders to start and stop recording.

The V-8HD iPad Remote Control Utility transforms your iPad into an efficient touch interface for the V-8HD, allowing you to run essential switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to eight custom scenes for fast, efficient setup changes.

Finally, the V-8HD offers hands-free switching and control. By using a BOSS single or double footswitch, you can execute over 100 different switcher commands, making this device a versatile tool for any video production environment.

Roland V-8HD Features

  • All HDMI workflow
  • Five-layer effects and keying engine
  • Built-in multi-viewer preview monitor
  • Aux output for a different video feed
  • Technology-assisted automatic video switching
  • 18-channel digital audio mixer with effects
  • Start & Stop Atomos recorders
  • Free iPad remote control app available
  • Ultra-mobile, lightweight, and efficient
  • Aids in reducing capital expenditure

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Elevate live streams with the Roland V-8HD's pristine HD video quality and seamless switching.
  • Easily manage multiple sources using the 8 HDMI inputs on this versatile video switcher.
  • Create dynamic presentations with built-in multi-viewer and real-time video effects.
  • Enjoy reliable connectivity for flawless live production, thanks to the robust design.
  • Capture and stream directly to your computer using the included UVC-01 USB video capture device.
  • Achieve professional audio mixing with integrated effects like EQ and noise gate for clear sound.

What's in the box:

  • V-8HD 18-Channel Audio Mixer HD Video Switcher
  • AC Adapter
  • Power Cord
  • Startup Guide
  • Roland 1 Year Limited Warranty
  • Roland UVC-01 USB Video Capture Device
