Roland VAD504 V-Drums Acoustic Design Electronic Drum Kit

SKU: ROVAD504 MFR: VAD504
Earn VIP Reward Points

Key Features

  • Experience realistic feel with the 14" digital snare drum and responsive mesh heads.
  • Dive into diverse sounds with the TD-27 module's 728 instruments and 100 drum kits.
  • Capture your creativity using the built-in recorder, perfect for practice and songwriting.
  • Enjoy seamless connectivity via Bluetooth for audio streaming and MIDI control.
  • The acoustic design blends stage-ready looks with the versatility of electronic drums.
  • Customize your setup with the included stands and clamps for optimal playability.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Roland VAD504 Specifications

TD-27 Drum Sound Module

TD-27 Drum Sound Module

Jump to...
  • Drum kits

    100 (Preset: 55)

  • Instruments

    728

  • User Sample Import

    Number of User Sample: Maximum 500 (includes factory preloaded user samples)
    Sound Length (total): 24 minutes in mono, 12 minutes in stereo
    File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

  • Effect Types

    Pad Compressor: each pad
    Pad Equalizer: each pad
    Overhead Mic Simulator
    Room/Reverb
    Multi-Effects: 3 systems, 30 types
    Master Compressor
    Master Equalizer

  • Bluetooth

    Supported standards: Bluetooth Ver 4.2
    Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
    Codec: SBC (Support to the content protection of the SCMS-T method)

  • Song Player (SD Card)

    File format: WAV (44.1 kHz, 16/24 bits), MP3

  • Recorder

    Recording Method: Realtime
    Maximum length: 60 min (temporary recording: 3 min)
    File format: WAV (44.1 kHz, 16 bits)

  • Display

    Graphic LCD 256 x 80 dots

  • External Memory

    SD Card (SDHC supported)

  • Connectors

    TRIGGER INPUT connector x 1: DB-25 type (Kick, Snare, Tom1, Tom2, Tom3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) x 3
    TRIGGER IN jack x 4: 1/4" TRS phone type (CRASH 2, AUX1, AUX2, AUX3) x 3
    DIGITAL TRIGGER IN port x 3: USB A type
    MASTER OUT jacks (L/MONO, R): 1/4" phone type

  • Connectors (Contd.)

    DIRECT OUT jack x 2 (MONO): 1/4" phone type
    PHONES jack x 1: Stereo 1/4" phone type
    MIX IN jack x 1: Stereo 1/4" phone type
    MIDI (IN, OUT/THRU) connectors
    USB COMPUTER port x 1: USB B type
    FOOT SW jack x 1: 1/4" TRS phone type
    DC IN jack

  • USB Computer

    Speed: Hi-speed USB
    Driver mode: Generic, Vender
    Protocol: USB MIDI, USB Audio

  • USB Audio

    Sampling Rate (original): 44.1 kHz
    Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
    Record: 28 channels
    Playback: 4 channels

  • Power Supply

    AC adapter (DC 9 V)

  • Current Draw

    770 mA

  • Dimensions (W x D x H)

    9.37 x 8.03 x 3.11 (238 x 204 x 79mm)

  • Weight

    2.42 lbs (1.1kg) (Excluding AC adapter)

PD-140DS V-Pad

Jump to...
  • Pad Size

    14" (355.6mm)

  • Shell Depth

    4.3" (109.22mm)

  • Tension Rods

    8

  • Head

    3-Ply mesh head (Floating mid-layer structure)

  • Available Playing Methods (Triggers)

    Head shot (High resolution positional detection, Wide dynamic range)
    Rim shot (Depth detection, Wide dynamic range)
    Cross stick (Automatic switching)
    Brush sweep

  • Sensor System

    Multi element sensor system
    Head sensor
    3x Position sensors
    Rim sensor
    3x Cross stick sensors
    Built-in sensing processor

  • Supported Covering Size (W x L)

    3.86 x 41.73" (98 x 1060mm)

  • Thickness

    1mm or less

  • Connector

    DIGITAL TRIGGER OUT plug (compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port)

  • Power supply

    Supplied from DIGITAL TRIGGER IN port (DC 5 V)

  • Current Draw

    90 mA

  • Dimensions (W x D x H)

    14.96 x 14.96 x 6.30 (380 x 380 x 160mm)

  • Weight

    10.80 lbs (4.9kg)

PDA100-MS: Tom1

Jump to...
  • Shell (Dia. x D)

    10 x 7" (25.4 x 17.7cm)
    Wood shell

  • Finish

    Midnight sparkle (Wrap)

  • Head

    Top: 2-ply mesh head
    Bottom: 2-ply mesh head

  • Triggers

    2 (Head, Rim)

  • Connector

    Output jack

  • Allowable diameter of mounting rod

    9-13mm (3/8-9/16")

  • Usable pipe size

    Not compatible

  • Dimensions (W x D x H)

    11.6 x 13 x 8.31" (295 x 330 x 210mm)

  • Weight

    6.43 lbs (2.9kg)

PDA140F-MS: Tom3

Jump to...
  • Shell (Dia. x D)

    14 x 14" (35.5 x 35.5cm)
    Wood shell

  • Finish

    Midnight sparkle (Wrap)

  • Head

    Top: 3-ply mesh head (floating mid-layer structure)
    Bottom: 2-ply mesh head

  • Triggers

    2 (Head, Rim)

  • Connector

    Output jack

  • Dimensions (w x D x H)

    Excluding legs: 16.3 x 16.9 x 15.18" (415 x 430 x 385mm)

  • Weight

    Including legs: 14.12 lbs (6.4kg)
    Excluding legs: 11.68 lbs (5.3kg)

VH-14D V-Hi-Hat

Jump to...
  • Size

    14" (355.6mm)

  • Available Playing Methods (Triggers)

    Open/Half-open/Close/Press (high resolution position detection)
    Bow shot (high resolution position detection, wide dynamic range)
    Edge shot (high resolution position detection, wide dynamic range)
    Foot close/splash
    Choke (choke edge, bow touch)

  • Sensor System

    Multi element sensor system
    3x Bow Sensor
    Edge sensor
    Motion sensor
    Touch sensor
    Built-in sensing processor

  • Connectors

    DIGITAL TRIGGER OUT port (compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port)

  • Power Supply

    Supplied from DIGITAL TRIGGER IN port (DC 5 V)

  • Current Draw

    90 mA

  • Dimensions (W x D x H)

    14 x 14 x 6.30 (356 x 356 x 160mm)

  • Weight

    4.85 lbs (2.2kg)

CY-14C-T V-Cymbal Crash

Jump to...
  • Size

    14" (355.6mm)

  • Triggers

    2 (Bow/Edge)

  • Connectors

    BOW/EDGE OUTPUT jack

  • Dimensions (W x D x H)

    14.01 x 14.01 x 1.89 (356 x 356 x 48mm)

  • Weight

    2.2 lbs (1kg)

CY-18DR V-Cymbal Ride

Jump to...
  • Size

    18" (457.2mm)

  • Available Playing Methods (Triggers)

    Bow shot (high resolution position detection, wide dynamic range)
    Bell shot (wide dynamic range)
    Edge shot (wide dynamic range)
    Choke (choke edge, bow touch)

  • Sensor System

    Multi element sensor system
    3x Bow sensor
    Bell sensor
    Edge sensor
    Touch sensor
    Built-in sensing processor

  • Connectors

    DIGITAL TRIGGER OUT port (compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port)

  • Power Supply

    Supplied from DIGITAL TRIGGER IN port (DC 5 V)

  • Current Draw

    90 mA

  • Dimensions (W x D x H)

    18.50 x 18.50 x 2.16 (470 x 470 x 55mm)

  • Weight

    4.63 lbs (2.1kg)

KD-200-MS: Kick

Jump to...
  • Shell (Dia. x D)

    20 x 16" (50.8 x 40.6cm)
    Wood Shell

  • Finish

    Midnight Sparkle (Wrap)

  • Trigger

    1 (Head)

  • Acceptable pedal

    Single pedal, Twin pedal

  • Connectors

    Trigger Output jack

  • Dimensions (W x D x H)

    24.9 x 20 x 20.8" (633 x 507 x 528mm)

  • Weight

    24.06 lbs (10.9kg)

DCS-10: Drum combination stand

Jump to...
  • Weight

    (6.1kg)

DBS-10: Drum boom stand

Jump to...
  • Weight

    9.75 lbs (4.4kg)

APC-10: All purpose clamp

Jump to...
  • Usable pipe size

    5/8 - 1-1/8" (15.9-28.6mm)

  • Weight

    1.18 lbs (530g)

  • UPC Code

    761294519972

About Roland VAD504

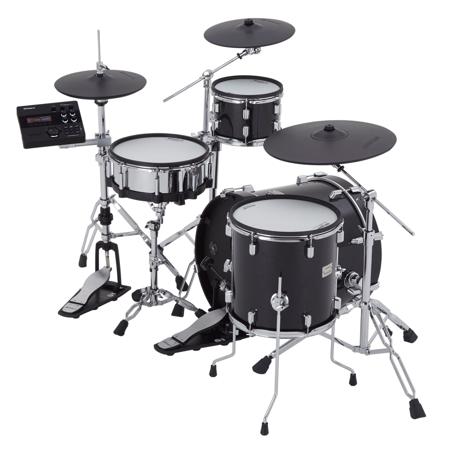

Explore the sleek and modern VAD504 V-Drums Acoustic Design Electronic Drum Kit, a perfect blend of traditional acoustic drum aesthetics and advanced digital drum technology. This stylish and durable drum kit offers a realistic drumming experience, making it an ideal choice for drummers of all skill levels.

The VAD504 is a premium "one-up, one-down" kit, featuring full-size wood shells that are covered with attractive wraps and mounted on double-braced chrome stands. The advanced digital sensor technology and dynamic TD-27 drum module from Roland ensure every stroke, ghost note, roll, and swell is expressed in incredible detail, providing an immersive acoustic drumming experience.

This high-quality electronic drum set includes a 14-inch stainless steel snare, 10-inch rack tom, 14-inch floor tom, and 20-inch kick, all constructed with full-depth wood shells for an authentic acoustic feel. The kit also boasts a full complement of cymbals, including a 14-inch V-Hi-Hat, 14-inch crash, and an 18-inch ride, enhancing the playability and stage presence of the kit.

The VAD504 takes electronic drumming to new heights with Roland's groundbreaking digital pad technology. Precision multi-sensors in the snare, ride, and hi-hat pads work in harmony with the TD-27 module to capture every nuance with incredible definition and detail. This advanced technology allows for natural acoustic techniques, such as muting the ride with a finger touch or seamlessly switching between head, rimshot, and cross stick playing on the snare.

The TD-27 sound module, derived from the flagship TD-50X, is filled with drums that live and breathe like acoustic instruments. Roland's unique Prismatic Sound Modeling brings the samples alive, providing an unprecedented sonic range at your command. The updated TD-27 module features 75 preset kits, including 10 all-new kits and newly enhanced versions of the three most popular kits from the original release.

The VAD504 also offers advanced sound processing options. Use PureAcoustic Ambience Technology to create an incredibly natural and immersive sound field when playing. The onboard multi-effects and mixing capabilities give you the power of a full-scale studio console, with transient processing, parametric EQs, compressors, reverbs, delays, and more at your command.

The VAD504 is not only a powerful instrument for stage performance but also a fantastic tool for recording, thanks to a wealth of connectivity options. The built-in USB audio interface makes computer music production easy, with up to 28 audio channels available over a single cable. MIDI is also supported via USB and dedicated I/O, allowing you to sync with other MIDI devices and trigger sounds in computer software.

With the VAD504, you can create and craft your signature drum kit. The TD-27 module allows you to swap head types, adjust the tuning, apply damping, tweak the snare wire tension, change the kick beater, and more. It's even possible to load your own samples and layer them with the internal sounds to personalize kits even more.

The VAD504 also comes equipped with Bluetooth for wireless audio streaming from a phone or laptop to the module, perfect for jamming with headphones or playing along with backing tracks. The Coach mode supports your daily practice sessions, complete with progress tracking that makes learning effective and rewarding.

Experience the future of drumming with the VAD504 V-Drums Acoustic Design Electronic Drum Kit, where high-quality design meets advanced technology for an unparalleled drumming experience.

Roland VAD504 Features

  • Four-piece V-Drums Acoustic Design kit with full-size wood shells and upgraded double-braced chrome stands
  • Updated TD-27 sound module with enhanced features and advanced Prismatic Sound Modeling derived from the flagship TD-50X
  • 14" PD-140DS digital snare, 12" VH-14D digital hi-hat, and 18" CY-18DR digital ride cymbal with high-resolution, multi-sensor triggering for unparalleled dynamics and accurate positional detection
  • 10" PDA100-MS rack tom, 14" PDA140F-MS floor tom, and 20" KD-200-MS kick with custom chrome hardware and Midnight Sparkle wraps
  • 14" CY-14C-T crash with thin profile
  • Drum in inspiring sound spaces with PureAcoustic Ambience Technology
  • Hands-on interface for quick-and-easy sound selection and editing
  • Import your own WAV samples via an SD card
  • Stereo mix output and two assignable outputs for sending individual drum sounds to a PA mixer
  • Integrated 28-channel USB audio interface for professional computer music production
  • Three auxiliary trigger inputs for easy kit expansion
  • Onboard Bluetooth for drumming with music from a smartphone or laptop
  • Built-in practice functions for developing drumming skills
  • Expand your range with sounds, samples, and other creative content at Roland Cloud

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience realistic feel with the 14" digital snare drum and responsive mesh heads.
  • Dive into diverse sounds with the TD-27 module's 728 instruments and 100 drum kits.
  • Capture your creativity using the built-in recorder, perfect for practice and songwriting.
  • Enjoy seamless connectivity via Bluetooth for audio streaming and MIDI control.
  • The acoustic design blends stage-ready looks with the versatility of electronic drums.
  • Customize your setup with the included stands and clamps for optimal playability.

What's in the box:

  • Drum Sound Module (TD-27)
  • Snare Pad (PD-140DS)
  • Tom1 (PDA100-MS)
  • Tom3 (PDA140F-MS)
  • V-Hi-Hat (VH-14D)
  • V-Cymbal Crash (CY-14C-T)
  • Ride (CY-18DR)
  • Kick Pad (KD-200-MS)
  • Drum Combination Stand (DCS-30)
  • Drum Boom Stand (DBS-30)
  • Clamp (APC-10)
  • Sound Module Mount
  • AC Adapter
  • Special Connection Cable
  • Drum Key
  • User Manual
  • Roland 1 Year Limited Warranty
