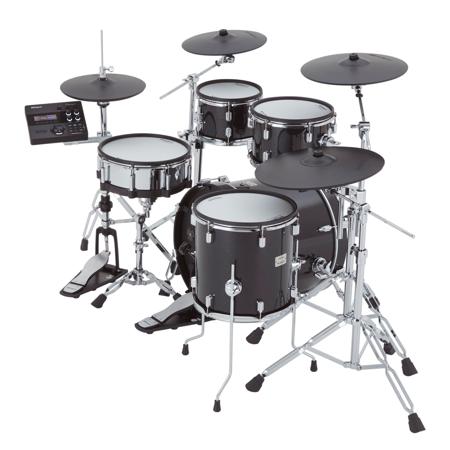

Roland VAD507 V-Drums Acoustic Design Electronic Drum Kit

SKU: ROVAD507 MFR: VAD507
Earn VIP Reward Points

Key Features

  • Experience acoustic realism with the Roland VAD507's authentic drum sound and responsive feel.
  • The TD-27 module offers advanced editing, so customize your electronic drum kit's sound effortlessly.
  • Practice quietly with mesh heads, or connect headphones for private electronic drums sessions.
  • Record studio-quality audio via USB, making this electronic kit perfect for home recording setups.
  • This durable V-Drums kit is built for consistent performance, whether on stage or in the studio.
  • Seamless Bluetooth connectivity lets you stream songs and lessons to your electronic drum set.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Roland VAD507 Specifications

TD-27 Drum Sound Module

TD-27 Drum Sound Module

Jump to...
  • Drum kits

    100 (Preset: 55)

  • Instruments

    728

  • User Sample Import

    Number of User Sample: Maximum 500 (includes factory preloaded user samples)
    Sound Length (total): 24 minutes in mono, 12 minutes in stereo
    File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

  • Effect Types

    Pad Compressor: each pad
    Pad Equalizer: each pad
    Overhead Mic Simulator
    Room/Reverb
    Multi-Effects: 3 systems, 30 types
    Master Compressor
    Master Equalizer

  • Bluetooth

    Supported standards: Bluetooth Ver 4.2
    Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
    Codec: SBC (Support to the content protection of the SCMS-T method)

  • Song Player (SD Card)

    File format: WAV (44.1 kHz, 16/24 bits), MP3

  • Recorder

    Recording Method: Realtime
    Maximum length: 60 min (temporary recording: 3 min)
    File format: WAV (44.1 kHz, 16 bits)

  • Display

    Graphic LCD 256 x 80 dots

  • External Memory

    SD Card (SDHC supported)

  • Connectors

    TRIGGER INPUT connector x 1: DB-25 type (Kick, Snare, Tom1, Tom2, Tom3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) x 3
    TRIGGER IN jack x 4: 1/4" TRS phone type (CRASH 2, AUX1, AUX2, AUX3) x 3
    DIGITAL TRIGGER IN port x 3: USB A type
    MASTER OUT jacks (L/MONO, R): 1/4" phone type

  • Connectors (Contd.)

    DIRECT OUT jack x 2 (MONO): 1/4" phone type
    PHONES jack x 1: Stereo 1/4" phone type
    MIX IN jack x 1: Stereo 1/4" phone type
    MIDI (IN, OUT/THRU) connectors
    USB COMPUTER port x 1: USB B type
    FOOT SW jack x 1: 1/4" TRS phone type
    DC IN jack

  • USB Computer

    Speed: Hi-speed USB
    Driver mode: Generic, Vender
    Protocol: USB MIDI, USB Audio

  • USB Audio

    Sampling Rate (original): 44.1 kHz
    Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
    Record: 28 channels
    Playback: 4 channels

  • Power Supply

    AC adapter (DC 9 V)

  • Current Draw

    770 mA

  • Dimensions (W x D x H)

    9.37 x 8.03 x 3.11 (238 x 204 x 79mm)

  • Weight

    2.42 lbs (1.1kg) (Excluding AC adapter)

PD-140DS V-Pad

Jump to...
  • Pad Size

    14" (355.6mm)

  • Shell Depth

    4.3" (109.22mm)

  • Tension Rods

    8

  • Head

    3-Ply mesh head (Floating mid-layer structure)

  • Available Playing Methods (Triggers)

    Head shot (High resolution positional detection, Wide dynamic range)
    Rim shot (Depth detection, Wide dynamic range)
    Cross stick (Automatic switching)
    Brush sweep

  • Sensor System

    Multi element sensor system
    Head sensor
    3x Position sensors
    Rim sensor
    3x Cross stick sensors
    Built-in sensing processor

  • Supported Covering Size (W x L)

    3.86 x 41.73" (98 x 1060mm)

  • Thickness

    1mm or less

  • Connector

    DIGITAL TRIGGER OUT plug (compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port)

  • Power supply

    Supplied from DIGITAL TRIGGER IN port (DC 5 V)

  • Current Draw

    90 mA

  • Dimensions (W x D x H)

    14.96 x 14.96 x 6.30 (380 x 380 x 160mm)

  • Weight

    10.80 lbs (4.9kg)

PDA100-MS: Tom1

Jump to...
  • Shell (Dia. x D)

    10 x 7" (25.4 x 17.7cm)
    Wood shell

  • Finish

    Midnight sparkle (Wrap)

  • Head

    Top: 2-ply mesh head
    Bottom: 2-ply mesh head

  • Triggers

    2 (Head, Rim)

  • Connector

    Output jack

  • Allowable diameter of mounting rod

    9-13mm (3/8-9/16")

  • Usable pipe size

    Not compatible

  • Dimensions (W x D x H)

    11.6 x 13 x 8.31" (295 x 330 x 210mm)

  • Weight

    6.43 lbs (2.9kg)

PDA120-MS: Tom 2

Jump to...
  • Shell (Dia. x D)

    12 x 8" (30.5 x 20.3cm)
    Wood shell

  • Finish

    Midnight sparkle (Wrap)

  • Head

    Top: 2-ply mesh head
    Bottom: 2-ply mesh head

  • Triggers

    2 (Head, Rim)

  • Connector

    Output jack

  • Allowable diameter of mounting rod

    3/8-9/16" (9-13mm)

  • Usable pipe size

    Not compatible

  • Dimensions (W x D x H)

    13.6 x 14.96 x 8.94" (345 x 380 x 227mm)

  • Weight

    7 lbs 8 oz (3.4kg)

PDA140F-MS: Tom3

Jump to...
  • Shell (Dia. x D)

    14 x 14" (35.5 x 35.5cm)
    Wood shell

  • Finish

    Midnight sparkle (Wrap)

  • Head

    Top: 3-ply mesh head (floating mid-layer structure)
    Bottom: 2-ply mesh head

  • Triggers

    2 (Head, Rim)

  • Connector

    Output jack

  • Dimensions (w x D x H)

    Excluding legs: 16.3 x 16.9 x 15.18" (415 x 430 x 385mm)

  • Weight

    Including legs: 14.12 lbs (6.4kg)
    Excluding legs: 11.68 lbs (5.3kg)

VH-14D V-Hi-Hat

Jump to...
  • Size

    14" (355.6mm)

  • Available Playing Methods (Triggers)

    Open/Half-open/Close/Press (high resolution position detection)
    Bow shot (high resolution position detection, wide dynamic range)
    Edge shot (high resolution position detection, wide dynamic range)
    Foot close/splash
    Choke (choke edge, bow touch)

  • Sensor System

    Multi element sensor system
    3x Bow Sensor
    Edge sensor
    Motion sensor
    Touch sensor
    Built-in sensing processor

  • Connectors

    DIGITAL TRIGGER OUT port (compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port)

  • Power Supply

    Supplied from DIGITAL TRIGGER IN port (DC 5 V)

  • Current Draw

    90 mA

  • Dimensions (W x D x H)

    14 x 14 x 6.30 (356 x 356 x 160mm)

  • Weight

    4.85 lbs (2.2kg)

CY-14C-T V-Cymbal Crash

Jump to...
  • Size

    14" (355.6mm)

  • Triggers

    2 (Bow/Edge)

  • Connectors

    BOW/EDGE OUTPUT jack

  • Dimensions (W x D x H)

    14.01 x 14.01 x 1.89 (356 x 356 x 48mm)

  • Weight

    2.2 lbs (1kg)

CY-16R-T: Crash 2

Jump to...
  • Size

    16" (40.6cm)

  • Triggers

    3 (Bow/Bell/Edge)

  • Connectors

    Bell output Jack
    Bow/Edge Output jack

  • Dimensions (W x D x H)

    16.06 x 16.06 x 2.5" (407 x 407 x 56mm)

  • Weight

    2 lbs 14 oz (1.3kg)

CY-18DR V-Cymbal Ride

Jump to...
  • Size

    18" (457.2mm)

  • Available Playing Methods (Triggers)

    Bow shot (high resolution position detection, wide dynamic range)
    Bell shot (wide dynamic range)
    Edge shot (wide dynamic range)
    Choke (choke edge, bow touch)

  • Sensor System

    Multi element sensor system
    3x Bow sensor
    Bell sensor
    Edge sensor
    Touch sensor
    Built-in sensing processor

  • Connectors

    DIGITAL TRIGGER OUT port (compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port)

  • Power Supply

    Supplied from DIGITAL TRIGGER IN port (DC 5 V)

  • Current Draw

    90 mA

  • Dimensions (W x D x H)

    18.50 x 18.50 x 2.16 (470 x 470 x 55mm)

  • Weight

    4.63 lbs (2.1kg)

KD-200-MS: Kick

Jump to...
  • Shell (Dia. x D)

    20 x 16" (50.8 x 40.6cm)
    Wood Shell

  • Finish

    Midnight Sparkle (Wrap)

  • Trigger

    1 (Head)

  • Acceptable pedal

    Single pedal, Twin pedal

  • Connectors

    Trigger Output jack

  • Dimensions (W x D x H)

    24.9 x 20 x 20.8" (633 x 507 x 528mm)

  • Weight

    24.06 lbs (10.9kg)

DCS-10: Drum combination stand

Jump to...
  • Weight

    (6.1kg)

DBS-10: Drum boom stand

Jump to...
  • Weight

    9.75 lbs (4.4kg)

APC-10: All purpose clamp

Jump to...
  • Usable pipe size

    5/8 - 1-1/8" (15.9-28.6mm)

  • Weight

    1.18 lbs (530g)

  • UPC Code

    761294519158

About Roland VAD507

Discover the pinnacle of electronic drumming with the VAD507 V-Drums Acoustic Design Electronic Drum Kit, a professional-grade instrument that delivers the full-bodied resonance and commanding presence of an acoustic drum set, combined with the versatility and precision of cutting-edge digital technology. This premium five-piece kit boasts full-depth wood shells wrapped in attractive finishes, supported by robust double-braced chrome stands, offering both visual allure and durable performance.

The VAD507 is engineered with Roland's advanced digital sensor technology, ensuring that every stroke, ghost note, roll, and dynamic swell is captured with astounding detail. The TD-27 drum module, a centerpiece of this kit, has been meticulously updated to provide an even more expansive range of drum kits and samples, enhanced processing options, and seamless Roland Cloud integration for an ever-evolving sonic palette.

Elevate your drumming experience with the VAD507's immersive acoustic feel, featuring a 14-inch stainless steel snare, 10-inch and 12-inch rack toms, a 14-inch floor tom, and a commanding 20-inch kick-all constructed with full-depth wood shells. The natural stick rebound and customizable tension of Roland's legendary multi-ply mesh heads contribute to the authentic playing sensation.

The cymbal set-up includes a 12-inch V-Hi-Hat, 14-inch and 16-inch crashes, and an 18-inch ride, each crafted with thin profiles and textured finishes for superior playability and a natural stage presence. The digital snare, ride, and hi-hat pads, equipped with precision multi-sensors, respond to your every technique with unparalleled sensitivity and tonal variation.

Roland's Prismatic Sound Modeling breathes life into the VAD507, transforming sampled sounds into living, breathing instruments that respond organically to your touch. The TD-27 module, drawing from the flagship TD-50X, places an unprecedented sonic range at your fingertips, allowing you to shape and personalize your sound with intricate detail.

The VAD507's double-braced chrome drum stands are inherited from the flagship VAD706, ensuring stability and an authentic acoustic drum feel. The newly developed thin V-Cymbals and special pivot mounts enhance the natural swing and stick feel, while the heavy-duty stands can be adjusted to your preferred layout.

Advanced sound processing options, including PureAcoustic Ambience Technology, onboard multi-effects, and comprehensive mixing capabilities, give you the power to sculpt your sound environment with studio-grade precision. The VAD507's connectivity options are equally impressive, with stereo and direct outputs for live performances, a built-in USB audio interface for seamless studio integration, and MIDI support for syncing with other devices and triggering software sounds.

Kit expansion is a breeze with the TD-27 module's auxiliary trigger inputs, allowing you to add pads and create your dream drum setup. Bluetooth audio streaming, onboard coaching functions, and compatibility with Melodics for V-Drums further enhance your practice and performance capabilities.

The KD-200-MS Kick Drum Pad, a core component of the VAD507, encapsulates the essence of V-Drums Acoustic Design. The full-size 20" kick drum pad features a full-depth wood shell and an innovative pad sensor, delivering a pedal feel indistinguishable from an acoustic kick drum, while Roland's advanced triggering ensures flawless sound reproduction with every beat.

Experience the fusion of traditional aesthetics and modern performance with the VAD507 V-Drums Acoustic Design Electronic Drum Kit, where every detail is crafted to inspire and elevate your drumming journey.

Roland VAD507 Features

  • Five-piece V-Drums Acoustic Design kit with full-size wood shells and upgraded double-braced chrome stands
  • Updated TD-27 sound module with enhanced features and advanced Prismatic Sound Modeling derived from the flagship TD-50X
  • 14" PD-140DS digital snare, 12" VH-14D digital hi-hat, and 18" CY-18DR digital ride cymbal with high-resolution, multi-sensor triggering for unparalleled dynamics and accurate positional detection
  • 10" PDA100-MS rack tom, 12" PDA120-MS rack tom, 14" PDA140F-MS floor tom, and 20" KD-200-MS kick with custom chrome hardware and Midnight Sparkle wraps
  • Additional cymbal pads include 14" CY-14C-T crash and 16" CY-16R-T crash/ride
  • Drum in inspiring sound spaces with PureAcoustic Ambience Technology
  • Hands-on interface for quick-and-easy sound selection and editing
  • Import your own WAV samples via an SD card
  • Stereo mix output and two assignable outputs for sending individual drum sounds to a PA mixer
  • Integrated 28-channel USB audio interface for professional computer music production
  • Three auxiliary trigger inputs for easy kit expansion
  • Onboard Bluetooth for drumming with music from a smartphone or laptop
  • Built-in practice functions for developing drumming skills
  • Expand your range with sounds, samples, and other creative content at Roland Cloud

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience acoustic realism with the Roland VAD507's authentic drum sound and responsive feel.
  • The TD-27 module offers advanced editing, so customize your electronic drum kit's sound effortlessly.
  • Practice quietly with mesh heads, or connect headphones for private electronic drums sessions.
  • Record studio-quality audio via USB, making this electronic kit perfect for home recording setups.
  • This durable V-Drums kit is built for consistent performance, whether on stage or in the studio.
  • Seamless Bluetooth connectivity lets you stream songs and lessons to your electronic drum set.

What's in the box:

  • Drum Sound Module (TD-27)
  • Snare Pad (PD-140DS)
  • Tom1 (PDA100-MS)
  • Tom2 (PDA120-MS)
  • Tom3 (PDA140F-MS)
  • V-Hi-Hat (VH-14D)
  • V-Cymbal Crash (CY-14C-T)
  • V-Cymbal Crash (CY-16R-T)
  • Ride (CY-18DR)
  • Kick Pad (KD-200-MS)
  • Drum Combination Stand (DCS-30)
  • Drum Boom Stand (DBS-30)
  • Clamp (APC-10)
  • Sound Module Mount
  • AC Adapter
  • Special Connection Cable
  • Connection Cable (Crash2)
  • Drum Key
  • User Manual
  • Roland 1 Year Limited Warranty
