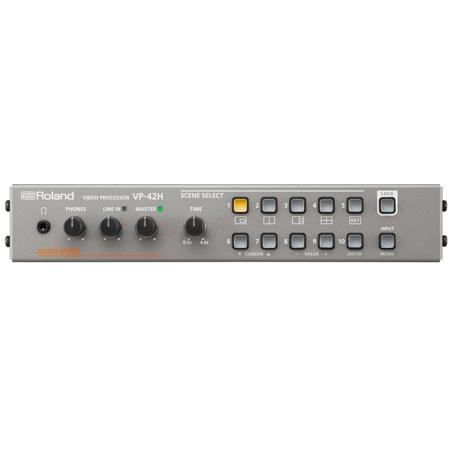

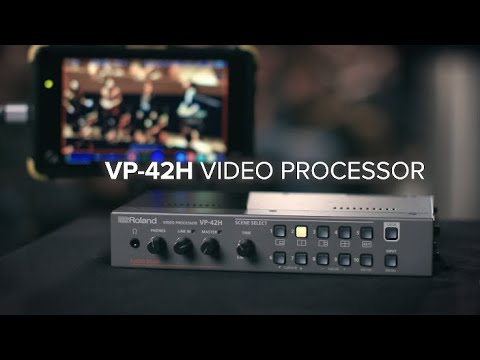

Roland VP-42H Video Processor

SKU: ROVP42H MFR: VP-42H
Earn VIP Reward Points

Key Features

  • Elevate live streams with this Roland video processor's seamless HDMI switching.
  • Create dynamic video walls using the VP-42H, offering wide compatibility and easy setup.
  • Enjoy low latency video switching, perfect for live events and broadcast applications.
  • Achieve high resolution video output, ensuring your visuals are always crystal clear.
  • Reliably manage multiple video sources with the VP-42H's robust connection capabilities.
  • Get good value with this versatile video switcher, offering pro features at a great price.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Roland VP-42H Specifications

Video
  • Processing

    4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits

  • Input Connectors

    HDMI: HDMI type A x 4 (HDMI INPUT 1-4)

  • Output Connectors

    HDMI: HDMI type A x 2 (HDMI OUTPUT 1-2)

  • Formats

    480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60, 1024 x 768/60, 1280 x 720/60, 1280 x 800/60, 1366 x 768/60, 1280 x 1024/60, 1400 x 1050/60, 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB

  • Effects

    Layer: 4

  • Still Image

    Internal Memory: 1
    Maximum Size: 1920 x 1200 pixels
    Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed

  • Sample Rate

    48 kHz, 24 bits

  • Input Connectors

    HDMI: HDMI type A x 4
    AUDIO INPUT: RCA pin type

  • Output Connectors

    HDMI: HDMI type A x 2 Output is the same audio
    AUDIO OUTPUT: RCA pin type
    PHONES: Stereo mini type

  • Input Level

    AUDIO INPUT: -10 dBu (Maximum: +8 dBu)

  • Input Impedance

    AUDIO INPUT: 15KOhms

  • Output Level

    AUDIO OUTPUT: -10 dBu (Maximum: +8 dBu)
    PHONES: 72 mW + 72 mW (32Ohms)

  • Output Impedance

    AUDIO OUTPUT: 1KOhms
    PHONES: 10Ohms

  • Formats

    HDMI: Linear PCM, 24 bits, 48 kHz, 2 ch

  • Processing

    Mixer: 4 ch (Delay: Maximum 250 ms)

  • External Connectors

    RS-232: DB-9 type (Male) x 1
    LAN: RJ45 x 1
    USB: USB A type x 1 (Use for future expansion)

  • Functions

    Scene Memory: 10
    Test Pattern Generator
    Test Tone Generator
    EDID Emulator

  • Power Supply

    AC Adapter

  • Current Draw

    2.1A

  • Power Consumption

    25W

  • Operation Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Dimensions (WxDxH)

    242 x 125 x 44mm (9.53 x 4.92 x 1.73")

  • Weight

    1.2kg (2.65 lbs)

  • UPC Code

    761294513323

About Roland VP-42H

Everything you need, on a single screen
The Roland VP-42H Video Processor layers and arranges multiple video sources to a single screen with dynamic transitions for effective and engaging presentations, digital signage and meeting applications.

The standard of visual content for presentations and events is increasing all the time. While some venues support multiple displays that can simultaneously output IMAG or presentation materials, it's not always practical or affordable. But if you can't make it work with multiple screens, then how about using a single large screen that can display everything you need - complete with multiple inset windows and slick, eye-catching transitions

Traditionally, layering and switching multiple sources within a single display is complicated and expensive, requiring highly skilled operators to keep it all working. This has pushed the technology out of reach for most event producers - until now. The Roland VP-42H video processor offers customizable compositions for up to four inputs, with motion-based scene switching for a stunning visual impact.

Maximum effect, minimum effort
The VP-42H goes way beyond typical switchers. You can instantly switch between 'scenes' containing preset arrangements of layered sources in customizable inset windows. The VP-42H smoothly transitions between current and next scenes by automatically moving and resizing the windows to their new positions. And highly impressive scene changes that used to take hours to program now happen at the touch of a button.

Simple, solid switching
Not all events require creative display and advanced scene transition capabilities. For simpler scenarios, the VP-42H functions as a true cross-dissolve seamless switcher, with a keyer to create overlays and the ability to display still images via USB drive - perfect for logos and safety slides.

Flexible audio capability
The Roland VP-42H includes stereo RCA outputs for de-embedding audio from connected HDMI sources and outputting it to other devices such as speakers and mixers. Levels for each source can be set by the internal audio mixer and if the VP-42H is being used as a compositor for recording or streaming, the audio from an external mixer or other sources can be connected to the RCA inputs and embedded into the HDMI output signal.

Fast and convenient browser-based setup
Quickly configure scenes by using the web browser interface for your network-connected VP-42H. Each input's layer can be scaled, cropped, zoomed and positioned by simply clicking and dragging. So even at a large event, a VP-42H connected to a big display will be up and running in seconds, letting you use a wirelessly connected tablet to set up compositions in no time.

Applications

Large event presentations
LED walls and projections make a big impact at corporate events and the VP-42H can customize the display of the various data sources needed for presentations. With 10bit 4:4:4 video processing for pixel accurate color, the VP-42H ensures that detailed data sources such as spreadsheets are sharp and clear for the audience to read. And as you've got their attention, impress the audience with smooth and dynamic Motion Scene Switching. It makes everything look more exciting - even spreadsheets.

Digital signage processor
Create engaging digital signage with multiple content layers, overlays and motion-based transitions. The VP-42H can automatically switch between scenes, based on a preset interval, for exciting, eye-catching displays. And you can make it all happen from just about anywhere in the world, by connecting remotely and updating the VP-42H via a web browser.

Meeting rooms
Combine information from multiple sources including video conferences and presentations. Have all the key info on the same screen and easily switch between views to improve the delivery of information in meetings. And Motion Scene Switching makes transitioning between sources very impressive - especially when showing clients.

Video production multi-viewer
The VP-42HD is a highly flexible multi-viewer for video production. Most multi-viewers simply provide a quad display but the VP-42H enables custom sizing for each source window and scenes can be set up for instant access to a variety of multi-view configurations. The VP-42H can also de-embed audio being transported over HDMI, routing the audio to local speakers for improved monitoring.

Roland VP-42H Features

  • Combine up to four HDMI video sources on to a single output
  • Simple set-up and remote switching with browser-based network control
  • Connect and switch multiple resolutions simultaneously
  • Audio management and connection to external audio devices
  • Motion Scene Switching for fluid transitions between complex screen sets
  • Keyer function for overlays and advanced compositions

Key Features

  • Elevate live streams with this Roland video processor's seamless HDMI switching.
  • Create dynamic video walls using the VP-42H, offering wide compatibility and easy setup.
  • Enjoy low latency video switching, perfect for live events and broadcast applications.
  • Achieve high resolution video output, ensuring your visuals are always crystal clear.
  • Reliably manage multiple video sources with the VP-42H's robust connection capabilities.
  • Get good value with this versatile video switcher, offering pro features at a great price.

What's in the box:

  • Roland VP-42H Video Processor
  • AC Adapter
  • Power Cord
  • 4x Rubber Feet
  • Rack Mount Angle Set
  • Owner's Manual
  • Leaflet "Using The Unit Safely "
  • Roland 1 Year Parts and 90 Day Labor Limited Warranty
