4:4:4 (Y/Pb/Pr), 10-bit

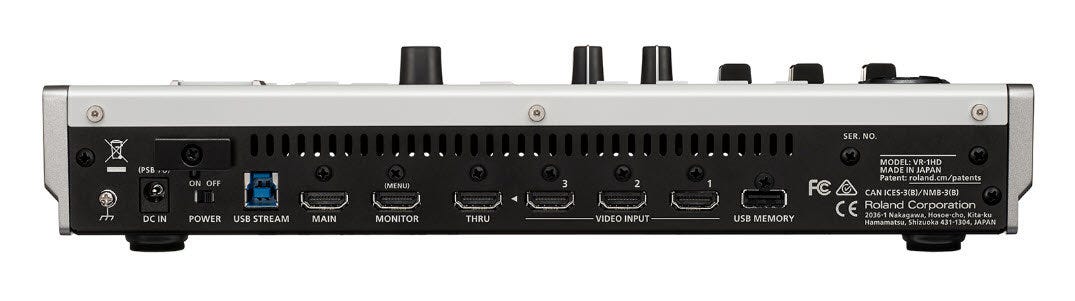

VIDEO INPUT 1-3 connectors: HDMI type A x 3
HDCP Supported
Multi-format Supported
MAIN connector: HDMI type A
MONITOR connector: HDMI type A
THRU connector: HDMI type A
USB STREAM port: USB B type
(HDCP Supported)
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/ 60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz)
Main, Monitor:
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
60 Hz:
WUXGA (1920 x 1200)
FHD (1920 x 1080)
UXGA (1600 x 1200)
SXGA+ (1400 x 1050)
FWXGA (1366 x 768)
SXGA (1280 x 1024)
WXGA (1280 x 8000)
XGA (1024 x 768)
VGA (640 x 480)
USB Stream:
1080p: 29.97/25
720p: 59.94/50/29.97/25
854 x 480p: 59.94/50/29.97/25
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
Scene: PinP, Split
Transition: Black fade, Mix fade
Key Composition: Luminance key
Other: Still Image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
Sample rate: 48 kHz, 24 bits
VIDEO INPUT 1-3 connectors: Linear PCM, 48 kHz, 24 bits, stereo
USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo
VIDEO INPUT 1-3 connectors: HDMI type A
MIC IN 1-2 jacks: Combo type (XLR, 1/4-inch TRS phone), phantom power (DC 48 V, 10 mA Max)
LINE IN jacks: RCA phono type
USB STREAM port: USB B type
MAIN connector: HDMI type A
MONITOR connector: HDMI type A
LINE OUT jacks: RCA phono type
USB STREAM port: USB B type
PHONES jack: Stereo miniature phone type
MIC IN 1-2 jacks: -60-+4 dBu (Maximum input level: +28 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +8 dBu)
MIC IN 1-2 jacks: Minimum 10 k ohms (balanced, HEAD AMP GAIN: 0-+17 dBu), Minimum 5 k ohms (balanced, HEAD AMP GAIN: +17-+64 dBu)
LINE IN jacks: 15 k ohms
LINE OUT jacks: -10 dBu (Maximum input level: +8 dBu)
PHONES jack: 92 mW + 92 mW (32 ohms)
LINE OUT jacks: 1 k ohms
PHONES jack: 10 ohms
Auto mixing, Echo canceller, Howling canceller, EQ, Delay, Compressor, HPF, Gate, Reverb, Limiter, Voice changer
Number of Players: 4
Data Format: WAV (Linear PCM, 48 kHz, 16 bits stereo/44.1 kHz, 16 bits, stereo)
USB MEMORY port (HOST): USB A type (For USB flash drive, Still image, Audio player)
USB STREAM port (DEVICE): USB B type (For USB-VIDEO (USB 3.0), USB-AUDIO (USB2.0): stereo 1 IN/1 OUT, Remote control)
DC IN jack
Scene memory : 5
Panel lock function
EDID emulator
Auto switching (Auto scan, Beat sync switching, Video follow audio)
AC Adaptor
2 A
24 W
0 to 40 deg. C (32 to 104 deg. F)
314 x 169 x 66mm (12.36 x 6.65 x 2.60")
1.6kg (3.53 lbs)
761294513446
Streaming live and on-demand content has become the norm with the advent of services like Facebook Live, YouTube Live, Periscope, Twitch, and even podcasting. Countless content creators and brands have used these live streaming services to broadcast events to their audiences in real-time.
In this digital age, people prefer to consume visual content. Moreover....
If you’re a content creator seeking maximum engagement, livestreaming outperforms uploaded video by a significant margin; audiences are larger, watch for longer and post more comments. Roland’s VR-1HD lets you broadcast dynamic multi-camera livestreams, complete with amazing picture and sound that easily outshines ‘standard’ livestreams from a mobile phone or static webcam. Whether you’re a creator, gamer, commentator or presenter, it’s the easy way to livestream with high production standards. And since you’re going to get more comments, ensure they’re good ones with the VR-1HD.
The VR-1HD has three “worry-free” HDMI inputs, and each one accepts a variety of HD and computer-based video resolutions. This lets you connect, switch and stream different sources including cameras, presentations, gameplay and even smartphones and tablets without having to think about it. The audio from these sources can be blended with the two studio-quality XLR microphone inputs and dedicated line input. Best of all, as the VR-1HD is designed for live broadcasting, its dedicated controls and top-mounted mic input (with gooseneck mic) let you go hands-free and headset-free while livestreaming.
When you’re presenting a livestreamed vlog or nailing a live music performance, you’d normally need another person to help switch cameras. The VR-1HD lets you go it alone with three Auto Switching modes that take the strain once the broadcast begins.

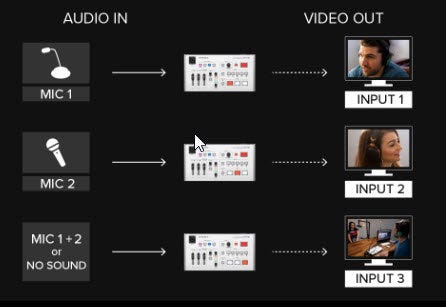

The VR-1HD switches cameras based on who’s speaking into their microphone. If both people talk at once, or if no one is speaking, the VR-1HD can switch to a wide shot showing both presenters.
Start playing music and the VR-1HD will switch to different camera inputs based on your playing tempo or the music in your DJ performance – letting you act as your own VJ.

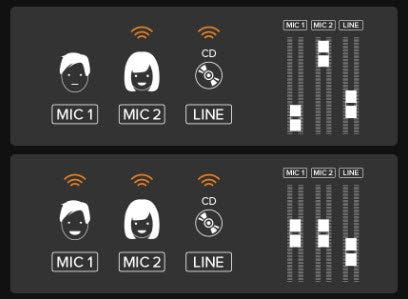

Put audio on auto-pilot and relax, thanks to the VR-1HD’s Auto Mixing function. Just like having a sound engineer, you can ensure that different audio inputs aren’t competing, while also checking that the sound remains balanced. You can even set certain inputs to take priority so when the host starts to speak, the other audio levels are automatically reduced. Audio from your input sources can automatically change when you switch video sources, by engaging the Audio Follows Video function – one less thing to worry about during your livestream.
Nobody talks about good sound when watching a live stream but they sure notice when its bad. Pros use sound “equalizers” to balance the highs and lows of the audio, “gates” to keep open mics quiet unless someone is speaking and “compressors” to balance out changes in volume when speaking or singing. These are all in the VR-1HD to make sure everyone sounds their best on air along with reverb if someone is inspired to sing and needs a little ambiance.

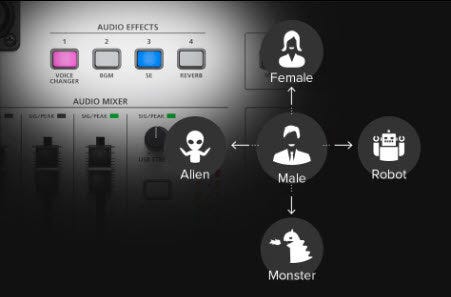

Roland makes the legendary VT series of Voice Transformers, used by creators, gamers and singers to radically change their voice in real-time. This technology means that a male can sound like a female, a female can sound like a male, and anyone can sound like a robot, a monster or an alien. Derived from Roland’s VT series, the VR-1HD’s Voice Changer effect can be applied to the mic inputs, and each input even has its own Voice Changer settings, so people can sound like someone else — or something else — entirely.
The VR-1HD uses the same connection technology as webcams, so just hook up to your computer via USB 3.0 and fire up the live casting or recording software. Then jump straight into a professionally produced, Full HD broadcast on your favorite platform, including Twitch, YouTube or Facebook Live.
Bring your content creation to the next level with the professional, advanced, and high-quality VR-1HD AV Streaming Mixer. Designed for real-time engagement, this versatile device outperforms standard livestreams, offering dynamic multi-camera capabilities with superior picture and sound quality. Ideal for creators, gamers, commentators, and presenters, the VR-1HD is your 'plug and play' broadcast studio, designed to elevate your livestreaming experience.
The VR-1HD features three advanced HDMI inputs, each capable of accepting a variety of HD and computer-based video resolutions. This allows you to seamlessly connect, switch, and stream from different sources, including cameras, presentations, gameplay, and even smartphones and tablets. Blend the audio from these sources with the two studio-quality XLR microphone inputs and dedicated line input for a rich, immersive audio-visual experience.
With built-in Scene Switching, the VR-1HD allows you to instantly jump between scenes containing preset arrangements of layered sources, displayed within customizable inset windows. This feature, combined with the five scene preset buttons, makes your livestreaming more engaging and dynamic.
The VR-1HD also offers three Auto Switching modes, enabling you to manage your livestream single-handedly. Whether it's switching cameras based on who's speaking, changing camera inputs based on your playing tempo, or switching between sources in a pre-defined order or randomly, the VR-1HD has got you covered.
The VR-1HD's Auto Mixing function puts audio on auto-pilot, ensuring balanced sound and eliminating competing audio inputs. With the Audio Follows Video function, audio from your input sources can automatically change when you switch video sources, making your livestreaming experience worry-free.
Enhance your on-air sound with the VR-1HD's sound "equalizers", "gates", and "compressors". And with the Voice Changer effect, derived from Roland's legendary VT series, you can radically transform your voice in real-time, adding a unique touch to your livestream.
The VR-1HD also allows you to add your own custom sound effects via USB memory, further personalizing your livestream. Connect the VR-1HD to your computer via USB 3.0, and you're ready to deliver a professionally produced, Full HD broadcast on your favorite platform, including Twitch, YouTube, or Facebook Live.
With the VR-1HD RCS software, you can control the VR-1HD using your computer, allowing for easy system updates and remote control. The VR-1HD AV Streaming Mixer is not just a device, it's your partner in delivering high-quality, engaging, and professional livestreams.
