Redrock Micro Atlas 3-Channel FIZ Bundle, Includes 3x Atlas Smart Motor and Navigator Command Module

SKU: RR621550007

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Redrock Atlas 3-CH FIZ Bundle - Navigator Command Module Specifications

  • Motor: Power

    12VDC to 18VDC

  • Motor: Material

    Aircraft Grade Aluminum

  • Motor: Connectors

    Connector 1: Eclipse Net Power and Communications
    Connector 2: Eclipse Net Power and Communications
    Connector 3: Mini Control Port S.Bus

  • Motor: Rod Clamp

    15/19 mm

  • Motor: Lens Gear

    0.8

  • Motor: Run/Stop Capable

    Yes

  • Motor: Clamp Style

    Removable

  • Motor: Wi-Fi

    Yes

  • Motor: RF

    2.4GHz

  • Motor: NFC

    Yes

  • Motor: Display

    OLED

  • Motor: Audio

    Yes

  • Navigator: Works with

    Gimbals

  • Navigator: Power

    7.4 VDC - 18VDC, 3A

  • Navigator: Material

    Aircraft Grade Aluminum

  • Navigator: Connectors

    Connector 1: Eclipse Net Power and Communications
    Connector 2: Mini Control Port 4 PIN JST GH
    Connector 3: 2.5mm (LANC)

  • Navigator: Clamp

    Min OD: 19mm; Max OD: 31mm

  • Navigator: Wi-Fi

    802.11n

  • Navigator: RF

    2.4GHz

  • Navigator: Bluetooth

    No

  • Navigator: Mobile app

    Included: Eclipse mobile app (available via download) for iOS and Android

  • Dimensions (LxWxD)

    Motor: 96 x 29 x 71mm (3.78 x 1.14 x 2.80")
    Navigator: 72 x 95 x 79mm (2.83 x 3.74 x 3.11")
    Cable Length: 4" (10.16cm) and 24" (60.96cm)

  • Weight

    Motor: 238g (8.40 oz)
    Navigator: 199g (7.02 oz)
    Kit: 913g (32.21 oz)
    24" Cable: 5 oz (141.75g)
    4" Cable: 2 oz (56.70g)
    P-Tap Cable: 4 oz (113.40g)

About Redrock Atlas 3-CH FIZ Bundle - Navigator Command Module

Full FIZ Control
The Atlas 3-channel mini FIZ Bundle brings professional Focus, Iris and Zoom control with a smaller footprint and delivers incredible performance and features. Atlas motors are daisy-chained together so only one power and control cable is required. This bundle can be used in either solo operator mode or as a wireless FIZ controller (great when used with Field Runner AC rig). Perfect for any setup where you want complete and especially good for handheld, gimbal and ultra mobile rigs.

• Professional FIZ control in a smaller footprint
• The latest in motor tech. Atlas is a full featured lens control motor. See Atlas features below.
• Complete lens control for Solo Gimbal, A/C & Camera Op, Studio setups

The Navigator 7-in-1 Command Module
The Navigator 7-in-1 Command Module is the ultimate fingerstyle controller, bringing control of every part of your rig right to your fingertips. Featuring the world's first mini FIZ, Navigator also delivers full gimbal control, camera control and control of other Eclipse products.

Navigator works in both solo operator mode and as a wireless remote control, including native support for Freefly MoVI Pro API. And as part of the Eclipse system Navigator has access to next-level features including Mission Control real-time monitor data and MetaTouch lens discovery and configuration. If you want a controller that gives you ultimate flexibility right at your fingertips, Navigator Command Module is right for you.

Atlas Smart Motors: World's first Smart Motors for focus and lens control
Atlas Smart Motors don't just set the bar higher, they create an entirely new category of lens control. Designed by Redrock in the USA from the ground up, Atlas delivers professional performance, precision and reliability packed into a single housing and packs next-level features you won't find anywhere else including Mission Control and MetaTouch. Advancing production one leap at a time.

New generation of power, precision and reliability
Atlas Smart Motors' entirely new design and motor core deliver 300% more torque and 200% more resolution for the power and precision you crave. Whether it's forceful torque for the heaviest cine zoom lenses or a light touch required by still photo lenses, Atlas has what it takes.

Next-Level features that will blow your mind
Don't let the compact size of Atlas Smart Motors fool you. Atlas packs a huge number of features, many never before seen in a lens motor and yet are instantly indispensable. Features such as Mission Control real-time focus data on smallHD monitors, metaTouch lens discovery and configuration just by touching the lens and the first multi-protocol motor including RF, Wi-Fi, s.bus and NFC.

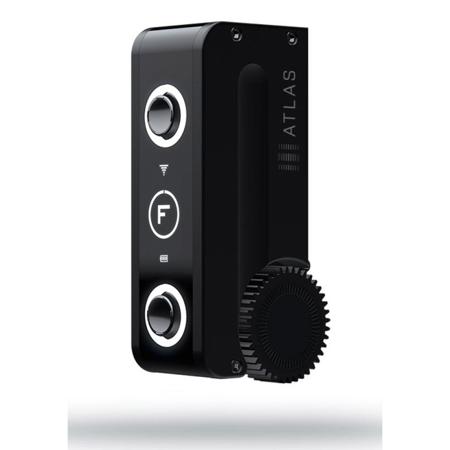

Atlas Motor
• Works with virtually any camera and lens (cinema and appropriately geared still photo lenses)
• Wireless ready
• No external brain/MDR required
• Auto and Manual calibration
• One-button push for auto calibration
• Adjustable torque
• Onboard LED and OLED for visual confirmation of status, configuration
• Rotating ports simplify cable and rigging
• Hemo-style connectors eliminate cable mismatch
• Wide selection of add-on controllers: from solo op fingerwheel, mini FIZ, wireless remote, drone
• Included Eclipse Mobile App for configuration, wireless remote focus control
• Mission Control ready (display real-time focus information on monitor, additional equipment required)
• MetaTouch lens discovery and configuration for fast lens changes

Navigator
• Full Altas control at your fingertips
• Future expansion ability to fully control all Eclipse Products
• Built-in DSLR battery plate (canon LP-E6 or compatible)
• Camera Run/Stop Ready (see compatibility chart in Tech Specs section)
• Hi-res OLED graphic display
• LED and display for visual confirmation of status, configuration, camera record tally light
• Single Op control of Gimbal functions (cable required)

What's in the box:

  • Redrock 3x Atlas Smart Motor
  • Navigator Command Module
  • 24 " Eclipse Cable
  • 2x 4 " Eclipse Cables
  • Eclipse P-Tap Power Cable
  • Redrock Micro 1 Year Warranty
