Redrock Micro FollowFocus v2 Indie Bundle with Lens Gear Sizes A,B,C, Color Black
SKU: RRMF2IBABCBK
This item is no longer available.
Share:
Overview
Compare
Protection
About Redrock Micro v2
The microFollowFocus is the first cinema-grade follow focus unit optimized for use with video cameras and still (SLR) 35mm lenses. Designed to be used with standard 0.8 film-pitch gearing and 15mm lightweight rod support (such as the Redrock Micro microSupport system), the microFollowFocus brings control and accuracy to the new world of digital filmmaking at revolutionary prices.
Here are some common Canon EF (EOS) lenses and their corresponding lens gear size
Canon EF Lens -
• 14mm f/2.8 L - Diameter 75mm - Use Lens Gear B
• 16-35mm f/2.8 L - Diameter 76 m - Use Lens Gear B or C
• 16-35mm f/2.8 L II - Diameter 76mm - Use Lens Gear B
• 17-35mm f/2.8 L - Diameter 76mm - Use Lens Gear B
• 20-35mm f/2.8 L - Diameter 77mm - Use Lens Gear B or C
• 20mm f/2.8 - Diameter 75mm - Use Lens Gear B
• 17mm f/4.0 Tilt Shift Lens - Diameter 88mm - Use Lens Gear C
• 24m f/3.5 Tilt Shift Lens - Diameter 79mm - Use Lens Gear B.C
• 45mm f/2.8 Tilt Shift Lens - Diameter 78mm - Use Lens Gear B or
• 90mm f/2.8 Tilt Shift Lens - Diameter 73mm - Use Lens Gear B
• 24mm f/2.8 - Diameter 67mm - Use Lens Gear A
• 8mm f/1.8 - Diameter 73mm - Use Lens Gear B
• 28mm f/2.8 - Diameter 66mm - Use Lens Gear A
• 24-70mm f/2.8 L - Diameter 84mm - Use Lens Gear C
• 28-70mm f/2.8 L - Diameter 83mm - Use Lens Gear C
• 24-105mm f/4.0 L IS - Diameter 82mm - Use ens Gear C
• 35mm f/1.4 - Diameter 79mm - Use Lens Gear C
• 35mm f/2.0 - Diameter 67mm - Use Lens Gear A
• 50mm f 1.8 - Diameter 65mm - Use Lens Gear A
• 50mm f/1.4 - Diameter 74mm - Use Lens Gear B
• 50mm f/1.2 - Diameter 86mm - Use Lens Gear C
• 50mm Macro f/2.5 - Diameter 67mm - Use Lens Gear A
• 100mm f/2.0 - Diameter 75mm - Use Lens Gear B
@ 100mm Macro f/2.8 USM - Diameter 79mm - Use Lens Gear B or C
• 100mm Macro f/2.8 - Diameter 75mm - Use Lens Gear B
• 35mm f/2.0 - Diameter 76mm - Use Lens Gear B or C
• 85mm f/1.2 - Diameter 92mm - Use Lens Gear D
• 85mm f/1.8 - Diamete 75mm - Use Lens Gear B
• 70-200mm f/2.8 L - Diameter 83mm - Use Lens Gear C
• 70-200mm f/2.8 L IS - Diameter 86mm - Us Lens Gear C
• 100-400mm f/4.5-5.6 L IS - Diameter 90mm - Use Lens Gear D
• 180mm Macro f/3.5 L - Diameter 78mm - Use Lens Gear B or C
• 200mm f/2.8 L - Diameter 75mm - Use Lens Gear B
Redrock Micro v2 Features
- Completely gear-driven design for slip-free, accurate, and repeatable focus movement
- Unique quick release clamp
- 1:1 gear ratio allowing smooth movements for still and motion picture 35mm lenses
- Adjustable slide-mounting mechanism to fit large range of lens diameters, including video camera lenses
- Interchangeable drive gears including 0.8 film pitch and fujinon pitch (for fujinon video lenses)
- Easily switchable to either side of camera
- Included microLensGears which can be quickly attached to existing 35mm still (SLR) lenses for accurate gearing.
- 3D marking disk allow focus marks to be easily viewed by operator or assistant
- Standard arri-style accessory port in focus wheel for attaching whip, speed crank, etc.
- Industry-standard 15mm lightweight (60mm spacing) rod mounted (rod support not included with microFollowFocus bundle)
- Optional 19mm rod clamp adapts microFollowFocus for 19mm rods for cameras including the Red ONE
- Optional fujinon 0.6 pitch drive gear for working directly with fujinon lenses
- Optional reversing gear for focusing nikon and pentax lenses the 'correct cinema' direction
- Machined with high quality, machined aircraft-grade aluminum
- Lightweight design
- Sleek Redrock look
- Also works great with DV and HD/V built-in camera lenses (Notes for use on video camera lenses: JVC HD100, HD110, HD200, and HD250 customers require the optional fujinon drive gear )
Key Features
- Unique quick release clamp
- Smooth movements for still & motion picture 35mm lenses
- Easily switchable to either side of camera
- Lightweight design
- Sleek Redrock look
- Works great

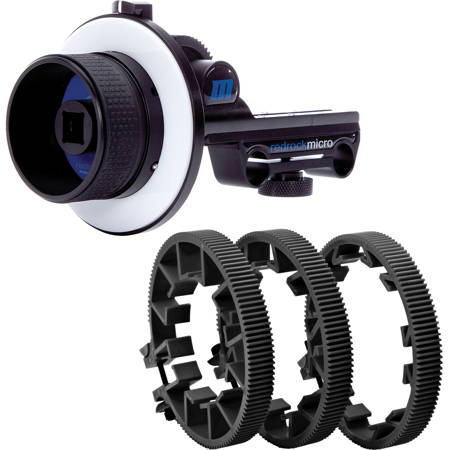

What's in the box:
- microFollowFocus v2 Unit with Quick Release Clamp (15mm lightweight rod configuration & 60mm spacing)
- 3 microLensGears Size A & B & C (color Black)
- Marking Disk
- Drive Gear (industry standard 0.8/ 32 film pitch)
- Redrock Grease Pencil
- Redrock Micro Limited Lifetime Warranty
