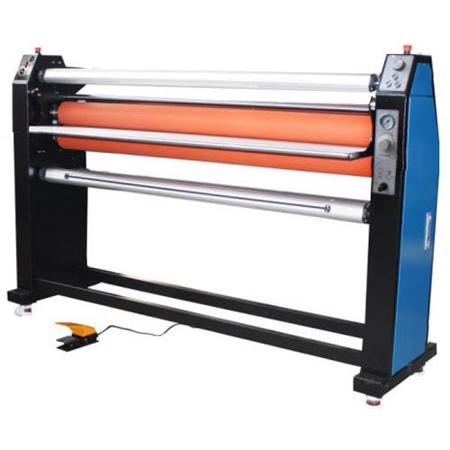

Royal Sovereign Paramount 65x65" Heat Assist Pneumatic Wide Format Roll Laminator

SKU: RSPARM65X

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Royal Sovereign Paramount 65x65" HeatAssist Pneumatic Wide Format Roll Laminator Specifications

  • Power Supply

    AC100V, 120V, 220-240V, 50/60Hz

  • Power Consumption

    1450W

  • Maximum Laminating Width

    65" (1650mm)

  • Max. Material Diameter (Film)

    7.8" (200mm)

  • Maximum Laminating Speed

    19.7'/min.

  • Ready Time

    <40min

  • Heating Method

    Hot Roller

  • Max. Temperature

    122 Degree F (50 Degree C)

  • Film Core

    3" Auto Grip

  • Roller Nip

    1.8" (30mm)

  • Reverse

    Yes

  • Take-Up System (Upper)

    Yes

  • Rewinder (Front & Rear)

    Yes

  • Front Feeder

    Yes

  • Dimension (W x D x H)

    Unit: 83 x 30 x 50" (2100 x 750 x 1250mm)

  • Weight

    Unit: 550 lb (280kg)

  • UPC Code

    849023070450

About Royal Sovereign Paramount 65x65" HeatAssist Pneumatic Wide Format Roll Laminator

The Paramount 65X is the Pneumatic Laminator you have been waiting for. Backed by over 30 years of industry experience, the 65" pneumatic pressurized rollers offer trouble free lamination. With maximum speeds reaching nearly 20 ft./min. (6 m./min.) and the included rear take-up, the Paramount 65X sets a new standard for wide format laminators. Safety features include a photoelectric eye and easily accessible emergency stops.

The heavy duty foot pedal with and rear facing remote allows for hands free operation, especially useful when mounting substrates up to 1.2" (30 mm) in thickness. The "SureSet" tension control knobs enables users to easily set a repeatable amount of tension for any job. The Paramount 65X is the next evolution in a long line of industry leading wide format laminators by Royal Sovereign.

Royal Sovereign Paramount 65x65" HeatAssist Pneumatic Wide Format Roll Laminator Features

  • Optimal working width 65" (1650 mm)
  • Speed 19.8 feet per minute (6 meters per minute)
  • Maximum substrate thickness 1" (26mm)
  • Max temperature 122 degree F (50 degree C) (Top Roller)
  • Pneumatic pressurized rollers
  • Rigid media adjustment guide
  • Diagnostic control
  • Commercial grade silicon rollers

Key Features

  • Optimal working width 65" (1650 mm)
  • Speed 19.8 feet per minute (6 meters per minute)
  • Maximum substrate thickness 1" (26mm)
  • Max temperature 122 degree F (50 degree C) (Top Roller)
  • Pneumatic pressurized rollers
  • Rigid media adjustment guide

What's in the box:

  • 1x Laminator
  • 1x Spare Motor Fuse (FUSE 50T) (6.3A)
  • 1x Spare Main Power Fuse (FUSE 65TS) 10A/20A
  • 1x Foot Pedal
  • 2x Keys
  • Royal Sovereign 1 Year Limited Warranty on Parts & Labor
