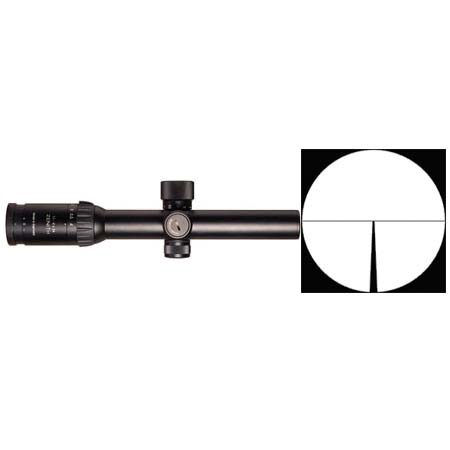

Schmidt & Bender 1.1-4x24mm Zenith Short Dot LE Police Marksman II Series Riflescope, Matte Black Finish with Illuminated # 2 Reticle, 30mm Tube.

SKU: RSSBM1424ZL2

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Schmidt & Bender 1.1-4x24 Rifle Scope Specifications

  • Magnification

    1.1x - 4x

  • Objective / Field of View

    24mm / 105' (32.0m) @ 1.1x at 100 yds.(100m), 32.8' (10.0m) @ 4x at 100 yds.(100 m)

  • Main (Center) Tube Diameter

    30mm

  • Objective Tube Diameter

    1.18", 30.0mm

  • Eyepiece Tube Diameter

    1.7", 43.0mm

  • Lens Coatings

    Fully Multi-Coated

  • Reticle

    Illuminated # 2 Flash Dot

  • Reticle Image Plane (Magnifying)

    Second

  • Twilight Performance

    Light transmission: minimum 85% day & night

  • Exterior Finish

    Matte Black

  • Windage & Elevation Adjustments (MOA)

    Elevation Increments: 1/2 MOA per click.
    Windage Increments: 1/2 MOA per click.

  • Maximum Adjustment

    Elevation Range: 26 MOA.
    Windage range: +/-13 MOA

  • Exit Pupil

    14.0mm at 1.1x / 5.5mm at 4x

  • Eye Relief

    3.35" / 85.0mm @ 1.1x, 3.35" / 85.0mm @ 4x

  • Parallax Correction Control

    Parallax Free at 109.4 Yards, 100 Meters

  • Diopter Adjustment

    +2 / -3

  • Material

    Aluminum

  • Nitrogen Filled

    Yes

  • Waterproof / Fogproof

    Yes

  • Length

    10.6", (269.0mm)

  • Mounting Length

    71mm, 2.8", Eyepiece Side, 76mm, 2.9" Objective Side.

  • Weight

    20.1 oz., 570.0g

  • Special Features

    Reticle Image in the Second Focal Plane.
    Waterproof to 3 meters.

7 Accessories for Schmidt & Bender 1.1-4x24mm Zenith Short Dot LE Police Marksman II Series Riflescope, Matte Black Finish with Illuminated # 2 Reticle, 30mm Tube.

  • All Accessories (7)
  • Sights & Accessories (2)
  • Cleaning Accessories (4)
  • Bags & Cases (1)

About Schmidt & Bender 1.1-4x24 Rifle Scope

• Our Police Marksman II riflescopes are in use around the world, from crowded urban environments to the most brutal desert, by highly trained shooters who know that a life perhaps even their own can depend upon the quality of their optics.
• 1.1 - 4 x 20 Short Dot Police Marksman II: A separate turret with 11 click stops controls the illumination function of a precise red dot at the center of the reticle. Fully variable illumination levels range from barely visible, for use with night vision equipment, to full bright for quick, accurate shots in bright, harsh daylight. With illumination switched off, the Short Dot functions as a standard scope with non-illuminated crosshairs. This is the first time that all possible applications of different illuminated reticle technologies have been combined into one riflescope, giving the Short Dot "any light, any time" versatility and reliability in any circumstance the shooter may encounter.
• At lower magnification levels, the Short Dot can be sighted with both eyes open. The full magnification range can be covered in a single 180-degree turn. Available with No. 2 and No. 7 reticles. This version is supplied with the # 7 reticle.

Schmidt & Bender 1.1-4x24 Rifle Scope Features

  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State
