This item is no longer available.

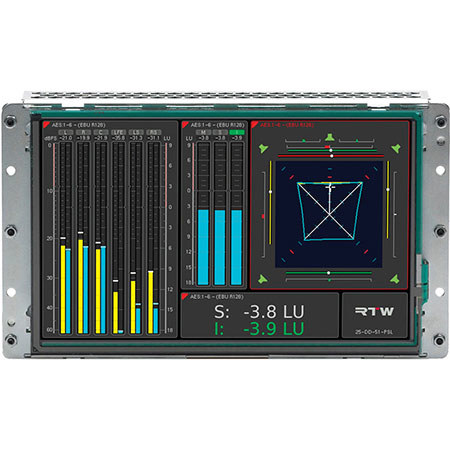

The RTW TouchMonitor TM7 OEM Panel-Mount Version 7" High-Grade Touch Screen Main Unit with HW20714 Audio Interface is a 16:9 TFT resistive touch screen with 800 x 480 pixel display resolution. The rack-mountable TM7 comes with the HW20714 audio interface configuration featuring one 25-pin Sub-D 8-channel digital inputs and outputs (4 x AES3 input, 4 x AES3 output) and two BNC 3G/HD/SD-SDI audio interface. The TouchMonitor allows you to configure the instruments which can be scaled, randomly positioned and combined for optimized use of available screen space. Multiple instruments of the same type, assigned to different input channels and configurations, can be displayed simultaneously. The audio interface provides 2 USB 2.0, 1 VGA output for an external monitor, as well as a GPIO RJ-11 and LAN RJ-45 for control interface.
Graphical User Interface
The graphical user interface used in the Touch- Monitor range is controlled simply by using your finger. Instruments can be scaled, randomly positioned and combined for optimized use of available screen space. Multiple instruments of the same type, assigned to different input channels and configurations, can be displayed simultaneously. A comprehensive on-screen help feature supports the user to make setup changes with ease.
Sight of Sound
In an ideal world, the human ear would be the best instrument any of could use for quality control and impartial judgment of daily work. However, it is just not that simple. The introduction of HD and surround sound, as well as loudness control issues have triggered an increasing demand for quality control and monitoring of audio signals. Fast perception and accurate assessment of audio levels using visual representation methods are indispensable elements of daily work. Sub-optimal monitoring conditions, stress and aural fatigue are just a few of a large number of reasons why relying just on one's ears is not enough.
Simple and flexible
The graphical user interface used in the TouchMonitor range is controlled simply by using your finger. Instruments can be scaled, randomly positioned and combined in almost every way for optimized use of available screen space. Even multiple instruments of the same type, assigned to different input channels and configurations, can be displayed simultaneously. Plus, a comprehensive on-screen help feature supports the user, allowing him to make setup changes with ease.
Standard Software
Every TouchMonitor comes with a basic software package allowing for PPM, True Peak Meter and correlation measurements of two input channels at a time. The PPM supports various analog and digital scale types. Any channel pair out of the input channels provided by the hardware can be routed to the instruments. Storing individual presets with different routings lets you access any input channel pair without having to reach input connections.
