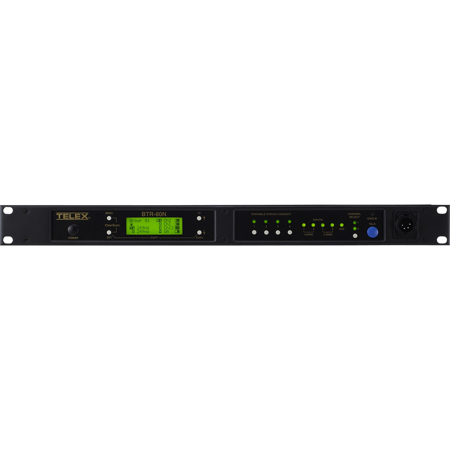

RTS Intercom Systems BTR-80N 2-Channel Narrow Band UHF Synthesized Wireless Intercom Base Station with A5F Headset Jack, FE Band: 482-500MHz Transmit/590-608MHz Receive

SKU: RTS01U359328 MFR: F.01U.412.406
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this RTS intercom system, perfect for live sound.
  • Enjoy reliable, secure communication with multiple channels on this wireless intercom.
  • Ensure seamless team coordination using this durable intercom in demanding environments.
  • The wide range of this RTS system keeps your crew connected across large venues easily.
  • Simple to use, this narrow band UHF intercom system integrates easily with existing setups.
  • This 2-channel base station offers top-notch sound quality for professional productions.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS BTR-80N 2-Ch Narrow Band Wireless Intercom Base Station w/A5F Jack, FE Band Specifications

Overall

Overall

Jump to...
  • RF Frequency Range

    FE Band: 482-500MHz Transmit/590-608MHz Receive

  • Power Requirements

    100 - 240 VAC, 50 - 60 Hz 1 Amp Max,, IEC receptacle

  • DC Only

    12 - 15 VDC, 3.5 Amps

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/2 Wave (supplied), TNC Male Connector

  • RX Antenna

    1/2 Wave (supplied), TNC Male Connector

  • FCC ID

    B5DM528

  • Frequency Response

    200Hz-4kHz

  • Four Wire Input

    Level Adjustable (2Vrms typical)

  • Two Wire Input

    Level Adjustable (2Vrms typical)

  • Telex Intercom

    Input/Output Level Adjustable (1Vrms typical), Line Impedance 300 Ohm

  • RTS Intercom

    Input/Output Level Adjustable (0.775Vrms typical), Line Impedance 200 Ohm

  • Clear-Com

    Input/Output Level Adjustable (1Vrms typical), Line Impedance 200 Ohm

  • Auxiliary Input

    Adjustable (2Vrms typical)

  • Auxiliary Output

    Adjustable (2Vrms typical into 600 Ohm)

  • Stage Announce Output

    Internally Adjustable (2Vrms typical at rated deviation into 600 Ohm)

  • Stage Announce Relay

    Dry contact, rated at 1 Amp, 24V Max

  • Microphone Input Sensitivity

    9mV

  • Local Headset Output

    40mW output into 600 Ohm (1% Distortion)

  • Dimensions (W x H x D)

    19 x 1.72 x 14" (48.3 x 4.4 x 35.6cm)

  • Weight

    7.14 lbs (3.24kg)

Transmitter

Jump to...
  • Type

    Two Synthesized Transmitters

  • Transmit Power (each transmitter)

    Selectable: off, 10mW, 50mW, 100mW, 249mW

  • Modulation Type

    FM

  • Deviation

    4kHz

  • RF Frequency Stability

    2.5PPM

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics & Spurious

    Exceeds FCC specifications

Receiver

Jump to...
  • Type

    Triple Conversion Superheterodyne, four Independent IFs, FM

  • RF Sensitivity

    <0.6micro V for 12dB SINAD

  • Squelch Threshold

    Adjustable - 12/20/24dB SINAD

  • IF Selectivity

    6dB at 30kHz bandwidth

  • Image Rejection

    70dB or better

  • Squelch Quieting

    90 dB

  • RF Frequency Stability

    2.5 PPM

  • UPC Code

    800549933315

About RTS BTR-80N 2-Ch Narrow Band Wireless Intercom Base Station w/A5F Jack, FE Band

The RTS Wireless BTR-80N UHF Synthesized Wireless Intercom System is a high-performance communication solution, designed to deliver crystal-clear, full-duplex communications with optimal spectrum usage. This advanced system comprises the agile BTR-80N base station and up to four TR-80N or TR-82N frequency agile beltpacks, facilitating seamless full-duplex communication.

For added versatility, an almost infinite number of beltpacks can be integrated with the base station in Push-To TX mode, enabling half-duplex communication. The BTR-80N system features a dual audio channel operation, allowing the beltpack operator to switch between two distinct audio channels. This unique feature provides the user with the flexibility to establish both a party line and a private line within the same beltpack.

Perfectly tailored for standalone operation, the BTR-80N system can also be interfaced with other RTS wired intercom systems. It offers auxiliary balanced audio input and output connections, as well as wireless talk-around (WTA) and stage announce (SA) features, enhancing its functionality.

Operating within the 482-500MHz Transmit/590-608MHz Receive range, the BTR-80N system ensures reliable performance at line-of-sight distances of up to 1000 feet. With the integration of RTS antenna systems, the effective operating range can be significantly extended.

The system's high-efficiency beltpacks are designed for long-lasting operation, providing between 8 and 11 hours of uninterrupted service with NiMH rechargeable battery packs. Experience the superior performance and flexibility of the RTS Wireless BTR-80N UHF Synthesized Wireless Intercom System, a top-tier choice for professional audio communication.

RTS BTR-80N 2-Ch Narrow Band Wireless Intercom Base Station w/A5F Jack, FE Band Features

  • Frequency-agile base station and beltpacks. No external computer/device required to select frequencies
  • Backlit base-station LCD allows the user to easily monitor the beltpack's status and change base station frequencies
  • Squelch adjust on the BTR-80N, TR-80N, and TR-82N beltpacks
  • Beltpack's battery level displayed on the base station and in beltpack's menus
  • ClearScan function on base station and beltpack to automatically find the best channels on which to operate
  • Full-duplex (simultaneous talk and listen) or Push-to-Tx (half duplex) operation
  • Compatible with Audiocom (Telex), RTS TW and ClearCom wired intercoms
  • Two (2) independent channels of intercom audio with the ability to operate party line and RTS matrix on the same intercom channel at the same time
  • WTA (Wireless Talk-Around) beltpack control. This feature allows beltpacks to talk to each other, but their audio is lifted from any wired system connected to the base station
  • SA (Stage Announce) beltpack control. Allows the user to direct their audio to a jack on the back of the base for P.A. systems or other external audio systems
  • Relay contact closure on the base when the SA button is pressed
  • Convenient IEC power connector on the base station so the unit can plug directly to outlets. No in-line or wall plug power supply

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this RTS intercom system, perfect for live sound.
  • Enjoy reliable, secure communication with multiple channels on this wireless intercom.
  • Ensure seamless team coordination using this durable intercom in demanding environments.
  • The wide range of this RTS system keeps your crew connected across large venues easily.
  • Simple to use, this narrow band UHF intercom system integrates easily with existing setups.
  • This 2-channel base station offers top-notch sound quality for professional productions.

What's in the box:

  • RTS BTR-80N 2-Channel Narrow Band UHF Synthesized Wireless Intercom Base Station
  • Power Cord
  • 2x Antenna
  • 2x Terminal SA Relay Terminal Plug
  • 4x Rubber Feet
  • User Manual
  • RTS 3 Year Limited Warranty
