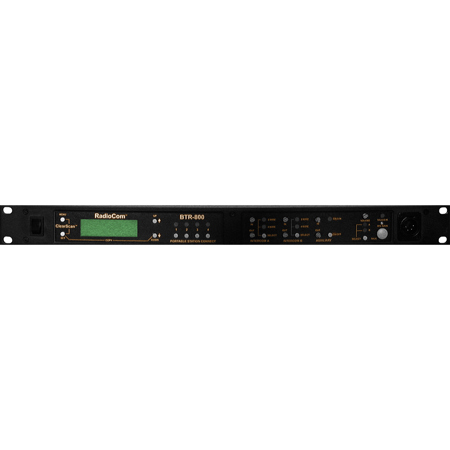

RTS Intercom Systems RadioCom BTR-800 2-Channel UHF Synthesized Wireless Intercom Base Station with A4M Headset Jack, HE Band: 500-518MHz Transmit/590-608MHz Receive

SKU: RTS01U359329 MFR: F.01U.412.407
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the RTS Intercom System, ensuring seamless communication.
  • Enjoy a wide RF frequency range for reliable wireless intercom connectivity in any environment.
  • The durable design of this intercom base station ensures longevity, even in demanding conditions.
  • Easily integrate with existing systems using adjustable input/output levels for RTS Intercom.
  • Enhance security with stable RF frequency, minimizing interference for secure transmissions.
  • Streamline live event production with a dependable 2-channel wireless intercom system.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS RadioCom BTR-800 2-Ch UHF Wireless Intercom Base Station w/A4M Jack, HE Band Specifications

  • RF Frequency Range

    HE Band: 500-518MHz Transmit/590-608MHz Receive

  • Power Requirements

    100-240VAC, 50-60Hz IEC receptacle

  • Power Consumption

    54W

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/2 Wave (supplied), TNC Male Connector

  • RX Antenna

    1/2 Wave (supplied), TNC Male Connector

  • Frequency Response

    300Hz-8kHz

  • 4-Wire Input and Output

    Level Adjustable (2VRMS typical)

  • AudioCom/Telex Intercom

    Input/Output Level Adjustable (1VRMS typical), Line Impedance 300 Ohm

  • RTS Intercom

    Input/Output Level Adjustable (0.775VRMS typical), Line Impedance 200 Ohm

  • Clear-Com Intercom

    Input/Output Level Adjustable (1VRMS typical), Line Impedance 200 Ohm

  • Auxiliary Input

    Adjustable (2VRMS typical)

  • Auxiliary Output

    Adjustable (2VRMS typical into 600 Ohm)

  • Stage Announce Output

    Internally Adjustable (2VRMS typical at rated deviation into 600 Ohm)

  • Stage Announce Relay

    Dry contact, rated at 1Amp, 24VMax

  • Microphone Input Sensitivity

    9mV

  • Local Headset Output

    40mW output into 600 Ohm (1% Distortion)

  • Transmitter Type

    2 Synthesized Transmitters

  • Transmit Power (each transmitter)

    100mW Max. (High) 10mW (Normal)

  • Modulation Type

    FM

  • Deviation

    40kHz

  • RF Frequency Stability

    0.005%

  • Modulation Limiter

    Peak-Responding compressor

  • Radiated Harmonics & Spurious

    Complies with FCC specifications

  • Receiver Type

    Dual Conversion Superheterodyne four (4) Independent Synthesized IFs FM

  • RF Sensitivity

    <0.8micro V for 12dB SINAD

  • Squelch Threshold

    20dB SINAD

  • IF Selectivity

    3dB at 230kHz

  • Image Rejection

    70dB or better

  • Squelch Quieting

    90dB

  • Distortion

    <1% at full deviation

  • Dimensions (W x H x D)

    19 x 1.72 x 14" (48.3 x 4.4 x 35.6cm)

  • Weight

    7.14 lbs (3.24kg)

  • UPC Code

    800549933322

About RTS RadioCom BTR-800 2-Ch UHF Wireless Intercom Base Station w/A4M Jack, HE Band

Make your communication seamless and efficient with the RadioCom BTR-800 2-Channel UHF Synthesized Wireless Intercom Base Station. This high-performance device offers reliable, full-duplex communications with exceptional fidelity, making it an ideal choice for professional audio setups.

The BTR-800 system is a comprehensive package that includes a frequency-agile base station, capable of working with up to four TR-800 or TR-825 frequency-agile beltpacks. This ensures a flexible and robust communication network that can adapt to various operational needs.

One of the standout features of the BTR-800 base station is its dual audio channel operation. This allows the beltpack operator to switch between two separate audio channels, with the base station automatically tracking the beltpack selection. This unique feature provides the user with the ability to create both a party line and a private line within the same beltpack, offering unmatched versatility.

The BTR-800 system is not just a stand-alone device, but it can also seamlessly interface with Audiocom, RTS Two-Wire Intercom, Clear-Com, RTS Digital Matrix Intercom systems, and other four-wire communications systems. This makes it a versatile addition to any professional audio setup.

Moreover, the system also provides connections for auxiliary balanced audio input and output, enhancing its functionality. The inclusion of wireless talk-around (WTA) and stage announce (SA) features further adds to its utility.

Designed for reliable and efficient operation, the RadioCom BTR series operates in the 500-518MHz Transmit/590-608MHz Receive range. The units can operate reliably at line-of-sight distances of 1,000 feet, ensuring clear and uninterrupted communication. With the use of available antenna systems from RadioCom, the effective operating range can be significantly extended.

In conclusion, the RadioCom BTR-800 2-Channel UHF Synthesized Wireless Intercom Base Station with A4M Headset Jack is a powerful, versatile, and reliable solution for all your professional audio communication needs.

RTS RadioCom BTR-800 2-Ch UHF Wireless Intercom Base Station w/A4M Jack, HE Band Features

  • Backlit Base Station LCD allows the user to easily monitor the beltpack's status
  • Base Stations are Table or Rackmountable
  • ClearScan Function automatically finds the best channels on which to operate
  • Compatible with Audiocom, RTS, Clear-Com, & Other Wired Intercom Types
  • Convenient IEC Power Connector on the Base Station
  • Frequency-Agile Base Station & Beltpacks
  • Full Duplex (Simultaneous Talk & Listen) Operation
  • Relay Contract Closure on the Base when the SA Button is Pressed
  • SA (Stage-Announce) Beltpack Control
  • TR-825 Features Two Audio Channel Binaural Operation in Either Stereo or Mono Mode
  • Two Channels of Intercom Audio
  • WTA (Wireless Talk About) Beltpack Control

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with the RTS Intercom System, ensuring seamless communication.
  • Enjoy a wide RF frequency range for reliable wireless intercom connectivity in any environment.
  • The durable design of this intercom base station ensures longevity, even in demanding conditions.
  • Easily integrate with existing systems using adjustable input/output levels for RTS Intercom.
  • Enhance security with stable RF frequency, minimizing interference for secure transmissions.
  • Streamline live event production with a dependable 2-channel wireless intercom system.

What's in the box:

  • RTS RadioCom BTR-800 2-Channel UHF Synthesized Wireless Intercom Base Station
  • Power Cord
  • 2x Antennas
  • Screwdriver
  • 2x SA Relay Terminal Plugs
  • 4x Rubber Feet
  • User Manual
  • RTS 3 Year Limited Warranty
