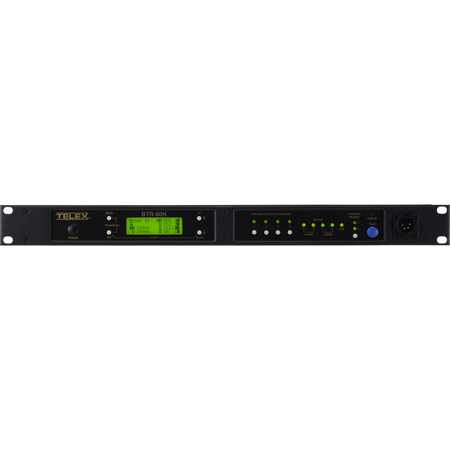

RTS Intercom Systems BTR-80N 2-Channel Narrow Band UHF Synthesized Wireless Intercom Base Station with A4M Headset Jack, FE Band: 482-500MHz Transmit/590-608MHz Receive

SKU: RTS01U359397 MFR: F.01U.412.137
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this 2-channel RTS intercom system for seamless communication.
  • Ensure reliable communication with a long-range wireless intercom, perfect for live sound events.
  • Enjoy versatile connectivity with adjustable inputs for Telex, RTS, & Clear-Com intercom systems.
  • The durable design of this RTS base station ensures years of reliable performance in any environment.
  • Enhance security with a synthesized wireless intercom, offering stable RF frequency and clear audio.
  • Simplify setup with easy-to-use interface; this intercom system is great for any audio professional.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS BTR-80N 2-Ch Narrow Band Wireless Intercom Base Station w/A4M Jack, FE Band Specifications

Overall

Overall

Jump to...
  • RF Frequency Range

    FE Band: 482-500MHz Transmit/590-608MHz Receive

  • Power Requirements

    100 - 240 VAC, 50 - 60 Hz 1 Amp Max,, IEC receptacle

  • DC Only

    12 - 15 VDC, 3.5 Amps

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/2 Wave (supplied), TNC Male Connector

  • RX Antenna

    1/2 Wave (supplied), TNC Male Connector

  • FCC ID

    B5DM528

  • Frequency Response

    200Hz-4kHz

  • Four Wire Input

    Level Adjustable (2Vrms typical)

  • Two Wire Input

    Level Adjustable (2Vrms typical)

  • Telex Intercom

    Input/Output Level Adjustable (1Vrms typical), Line Impedance 300 Ohm

  • RTS Intercom

    Input/Output Level Adjustable (0.775Vrms typical), Line Impedance 200 Ohm

  • Clear-Com

    Input/Output Level Adjustable (1Vrms typical), Line Impedance 200 Ohm

  • Auxiliary Input

    Adjustable (2Vrms typical)

  • Auxiliary Output

    Adjustable (2Vrms typical into 600 Ohm)

  • Stage Announce Output

    Internally Adjustable (2Vrms typical at rated deviation into 600 Ohm)

  • Stage Announce Relay

    Dry contact, rated at 1 Amp, 24V Max

  • Microphone Input Sensitivity

    9mV

  • Local Headset Output

    40mW output into 600 Ohm (1% Distortion)

  • Dimensions (W x H x D)

    19 x 1.72 x 14" (48.3 x 4.4 x 35.6cm)

  • Weight

    7.14 lbs (3.24kg)

Transmitter

Jump to...
  • Type

    Two Synthesized Transmitters

  • Transmit Power (each transmitter)

    Selectable: off, 10mW, 50mW, 100mW, 249mW

  • Modulation Type

    FM

  • Deviation

    4kHz

  • RF Frequency Stability

    2.5PPM

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics & Spurious

    Exceeds FCC specifications

Receiver

Jump to...
  • Type

    Triple Conversion Superheterodyne, four Independent IFs, FM

  • RF Sensitivity

    <0.6micro V for 12dB SINAD

  • Squelch Threshold

    Adjustable - 12/20/24dB SINAD

  • IF Selectivity

    6dB at 30kHz bandwidth

  • Image Rejection

    70dB or better

  • Squelch Quieting

    90 dB

  • RF Frequency Stability

    2.5 PPM

  • UPC Code

    800549933629

About RTS BTR-80N 2-Ch Narrow Band Wireless Intercom Base Station w/A4M Jack, FE Band

RTS Wireless BTR-80N UHF Synthesized Wireless Intercom system offers reliable, high-performance, high-fidelity fullduplex communications delivered with minimum spectrum usage.

The BTN-80N system includes the BTR-80N frequency agile base station and up to four (4) TR-80N or TR-82N frequency agile beltpacks operating in full-duplex communications. An almost unlimited number of beltpacks may be used with a base station if the beltpacks are in Push-To TX mode (half- duplex).

The BTR-80N system incorporates two (2) audio channel operation, permitting the beltpack operator to choose between two (2) separate audio channels of communication, with the base station tracking the beltpack selection. This allows the user the flexibility to create a party line and a private line within the same beltpack.

The BTR-80N system is perfectly suited for standalone operation and can also interface with other RTS wired intercom systems. In addition to the external intercom systems interfaces, the system provides connections for auxiliary balanced audio input and output, as well as wireless talk-around (WTA) and stage announce (SA) features.

The BTR-80N system has been designed for reliable, efficient operation. Operating in the 482-500MHz Transmit/590-608MHz Receive range, the units perform reliably at line-of-sight distances of 1000 feet. With available antenna systems from RTS, the effective operating range can be extended. The high-efficiency beltpacks provide between 8 and 11 hours of uninterrupted operation using NiMH rechargeable battery packs.

RTS BTR-80N 2-Ch Narrow Band Wireless Intercom Base Station w/A4M Jack, FE Band Features

  • Frequency-agile base station and beltpacks. No external computer/device required to select frequencies
  • Backlit base-station LCD allows the user to easily monitor the beltpack's status and change base station frequencies
  • Squelch adjust on the BTR-80N, TR-80N, and TR-82N beltpacks
  • Beltpack's battery level displayed on the base station and in beltpack's menus
  • ClearScan function on base station and beltpack to automatically find the best channels on which to operate
  • Full-duplex (simultaneous talk and listen) or Push-to-Tx (half duplex) operation
  • Compatible with Audiocom (Telex), RTS TW and ClearCom wired intercoms
  • Two (2) independent channels of intercom audio with the ability to operate party line and RTS matrix on the same intercom channel at the same time
  • WTA (Wireless Talk-Around) beltpack control. This feature allows beltpacks to talk to each other, but their audio is lifted from any wired system connected to the base station
  • SA (Stage Announce) beltpack control. Allows the user to direct their audio to a jack on the back of the base for P.A. systems or other external audio systems
  • Relay contact closure on the base when the SA button is pressed
  • Convenient IEC power connector on the base station so the unit can plug directly to outlets. No in-line or wall plug power supply

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this 2-channel RTS intercom system for seamless communication.
  • Ensure reliable communication with a long-range wireless intercom, perfect for live sound events.
  • Enjoy versatile connectivity with adjustable inputs for Telex, RTS, & Clear-Com intercom systems.
  • The durable design of this RTS base station ensures years of reliable performance in any environment.
  • Enhance security with a synthesized wireless intercom, offering stable RF frequency and clear audio.
  • Simplify setup with easy-to-use interface; this intercom system is great for any audio professional.

What's in the box:

  • RTS BTR-80N 2-Channel Narrow Band UHF Synthesized Wireless Intercom Base Station
  • Power Cord
  • 2x Antenna
  • 2x Terminal SA Relay Terminal Plug
  • 4x Rubber Feet
  • User Manual
  • RTS 3 Year Limited Warranty
