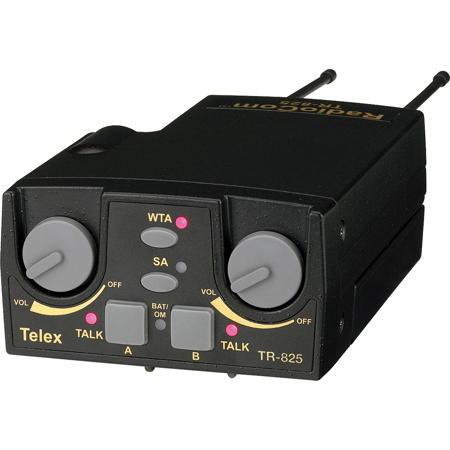

RTS Intercom Systems TR-825 2-Channel UHF Wireless Binaural Beltpack Transceiver with A5F Headset Jack, FD Band: 572-590MHz Transmit/482-500MHz Receive

SKU: RTS01U359403 MFR: F.01U.412.128
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless beltpack transceiver, perfect for live events.
  • Enjoy low latency communication with a reliable UHF wireless microphone system, essential for broadcast.
  • This durable transceiver features long range, ensuring seamless connectivity across large venues.
  • Optimize your setup with easy to use, detachable antennas for superior wireless signal strength.
  • Benefit from extended battery life using 6x AA batteries, keeping you powered through long shows.
  • The RTS intercom system offers exceptional sound quality, enhancing your production's audio clarity.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-825 2-Ch UHF Wireless Binaural Beltpack Transceiver w/A5F Jack, FD Band Specifications

  • RF Frequency Range

    FD Band: 572-590MHz Transmit/482-500MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH optional)

  • TR-825 Current Draw

    190mA (Push-to-Talk A and B Talk On)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4Wave (supplied) Screw type, Replaceable

  • RX Antenna

    1/4 Wave (supplied) Screw type, Replaceable

  • Frequency Response

    300Hz-8kHz

  • Microphone Input Sensitivity

    7mV

  • Local Headset Output

    40mW output into 600W (1% distortion)

  • Transmitter Type

    Synthesized

  • Transmit Power

    50mW Max. (Auto-power reduction), 20 mW Max in US 3 Band, 653-663MHz (auto-power reduction)

  • Modulation Type

    FM

  • Deviation

    40kHz

  • RF Frequency Stability

    0.005%

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics & Spurious

    Complies with FCC specifications

  • Receiver Type

    Dual Conversion Super heterodyne, Synthesized, FM

  • RF Sensitivity

    <0.7micro V for 12dB SINAD

  • Squelch Threshold

    20dB SINAD (About 1.0micro V)

  • IF Selectivity

    3dB at 230kHz

  • Image Rejection

    70dB or better

  • Squelch Quieting

    90dB

  • Distortion

    <1% at full deviation

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

  • Dimensions (W x H x D)

    3.75 x 5.35 x 2.02" (9.5 x 13.5 x 5.1cm)

  • Weight

    With Alkaline Batteries: 21 oz (595g)

  • UPC Code

    800549933681

About RTS TR-825 2-Ch UHF Wireless Binaural Beltpack Transceiver w/A5F Jack, FD Band

What sets the RTS TR-825 2-Channel UHF Wireless Binaural Beltpack Transceiver apart is its innovative dual listen and talk functionality, designed to streamline communication in high-demand environments like film and television production or live events. This high-quality device operates within a frequency range of 572-590MHz for transmission and 482-500MHz for reception, ensuring reliable, clear communication across a broad spectrum of applications.

The TR-825 is equipped with a user-friendly TA5F headset jack, compatible with both electret and dynamic headset microphones, offering flexibility and convenience to the user. Its robust all-metal cast magnesium case ensures durability, while the LCD-based graphical user interface simplifies operation.

Unique features like the Wireless Talk Around (WTA) and Stage Announce (SA) enhance the device's functionality. The WTA disconnects the user's audio from the wired intercom, auxiliary input/output, and the base station's local headset, while the SA routes the user's audio to the stage announce connector on the base station. Both features are indicated by a red LED light, providing visual feedback to the user.

The TR-825 also boasts individual volume controls for easy level adjustment, detachable antennas for improved signal reception, and an Audio Channel Select Button for seamless switching between audio channels A or B. The Bat/Overmod Light (BAT/OM) provides a quick battery status check, while the Talk Light LED indicates when the talk button, SA or WTA is active.

In summary, the RTS TR-825 2-Channel UHF Wireless Binaural Beltpack Transceiver is a reliable, user-friendly, and high-quality communication tool, designed to meet the demands of professional audio-visual environments.

RTS TR-825 2-Ch UHF Wireless Binaural Beltpack Transceiver w/A5F Jack, FD Band Features

  • On/Off & Volume Control
  • Wireless Talk Around (WTA)
  • Stage Announce (SA)
  • Audio Channel Select Button
  • Bat/Overmod Light (BAT/OM)
  • Talk Light
  • Talk Button

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless beltpack transceiver, perfect for live events.
  • Enjoy low latency communication with a reliable UHF wireless microphone system, essential for broadcast.
  • This durable transceiver features long range, ensuring seamless connectivity across large venues.
  • Optimize your setup with easy to use, detachable antennas for superior wireless signal strength.
  • Benefit from extended battery life using 6x AA batteries, keeping you powered through long shows.
  • The RTS intercom system offers exceptional sound quality, enhancing your production's audio clarity.

What's in the box:

  • RTS TR-825 2-Channel UHF Wireless Binaural Beltpack Transceiver
  • 2x 1/4 Wave Detachable Antennas
  • 6x AA Alkaline Battery
  • RTS 3 Year Limited Warranty
