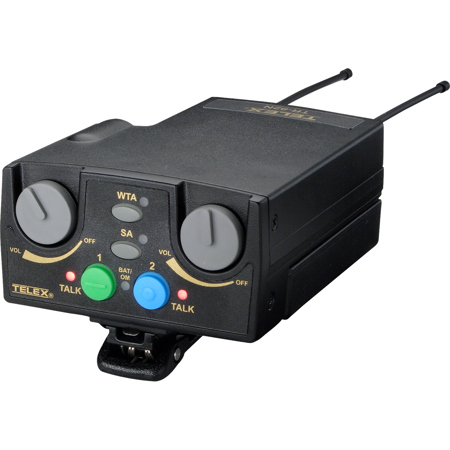

RTS Intercom Systems TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver with A4M Headset Jack, FD Band: 572-590MHz Transmit/482-500MHz Receive

SKU: RTS01U359404 MFR: F.01U.412.129
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this RTS Intercom wireless beltpack transceiver.
  • Enjoy reliable connectivity with the TR-82N's narrow band UHF wireless technology.
  • Perfect for on-location sound, this wireless system has a range of 572-590MHz.
  • The long-lasting battery life ensures your wireless microphone keeps performing all day.
  • Achieve seamless communication with low latency, ideal for live broadcast applications.
  • Durable design ensures this wireless transmitter stands up to rigorous professional use.
See More Product Details
Special Order?Estimated to Ship: 09/06/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4M,FD Band Specifications

Overall

Overall

Jump to...
  • RF Frequency Range

    FD Band: 572-590MHz Transmit/482-500MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH Optional)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • RX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • FCC ID

    B5DM531
    B5DM539

  • Frequency Response

    200 Hz-4 kHz

  • Microphone input sensitivity

    7 mV

  • Local Headset Output

    40 mW output into 600 O (1% Distortion)

  • Dimensions (W x H x D)

    3.75 x 5.35 x 2.02" (9.5 x 13.5 x 5.1cm)

  • Weight

    21 oz (595 g) with alkaline batteries

Transmitted

Jump to...
  • Type

    Synthesized

  • Transmit Power

    Selectable: auto, 5, 50, and 100 mW
    US 3 Band:, Selectable: auto, 5, 20 mW

  • Modulation Type

    FM

  • Deviation

    4kHz

  • RF Frequency Stability

    2.5 PPM

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics &Spurious

    Exceeds FCC specifications

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

Receiver

Jump to...
  • Type

    Two, Triple Conversion Superheterodyne Receivers, Synthesized, FM

  • RF Sensitivity

    <0.6 micro V for 12 dB SINAD

  • Squelch Threshold

    adjustable - 12/20/24 dB SINAD

  • IF Selectivity

    6 dB at 30 kHz bandwidth

  • Image Rejection

    70 dB or better

  • Squelch Quieting

    90 dB

  • RF Frequency Stability

    2.5 PPM

  • UPC Code

    800549933698

About RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4M,FD Band

Overcome communication barriers in professional audio and video settings with the TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver. This high-quality, durable device operates within the UHF spectrum, specifically designed to minimize interference from other wireless devices.

The TR-82N is a frequency-agile wireless beltpack, designed for seamless integration with the BTR-80N. Its innovative dual-listen feature allows you to monitor two channels simultaneously, such as "Tech" and "Production," making it an indispensable tool in complex production environments. Individual volume controls provide easy level adjustment for each channel, enhancing your control over audio inputs.

Encased in an all-metal cast magnesium case, the TR-82N is compact yet robust, designed to withstand the rigors of professional use. Its LCD-based graphical user interface simplifies operation, while the receiver RF meter and enhanced ClearScan technology ensure optimal signal reception.

The TR-82N also features a stage announce activation and wireless talk around (ISO) activation, providing flexible communication options. Its auto-sensing headset connector automatically switches between electret and dynamic headset mics, further enhancing its versatility.

The device is equipped with detachable antennas for easy storage and transport. The on/off and volume controls are intuitively designed, allowing for easy operation even in low-light conditions. The Wireless Talk-Around (WTA) and Stage Announce (SA) features are accompanied by LED indicators, providing visual feedback for your settings.

The TR-82N also includes a low battery/peak light that signals battery status and microphone gain levels, ensuring uninterrupted operation. Whether you're involved in film and television production, live events, or other professional settings, the TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver is a multifunctional tool designed to enhance your audio and video communication capabilities.

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4M,FD Band Features

  • Low Battery/Over modulation (BAT/OM) Light
  • On/Off & Volume Control
  • Receiver RF Meter
  • Stage Announce (SA)
  • Talk Button
  • Talk Light
  • Wireless Talk Around (WTA)

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this RTS Intercom wireless beltpack transceiver.
  • Enjoy reliable connectivity with the TR-82N's narrow band UHF wireless technology.
  • Perfect for on-location sound, this wireless system has a range of 572-590MHz.
  • The long-lasting battery life ensures your wireless microphone keeps performing all day.
  • Achieve seamless communication with low latency, ideal for live broadcast applications.
  • Durable design ensures this wireless transmitter stands up to rigorous professional use.

What's in the box:

  • RTS TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver
  • 2x 1/4-Wave Antennas
  • 6x AA Alkaline Battery
  • Belt Clip
  • LCD Cover
  • User Manual
  • RTS 3 Year Limited Warranty
