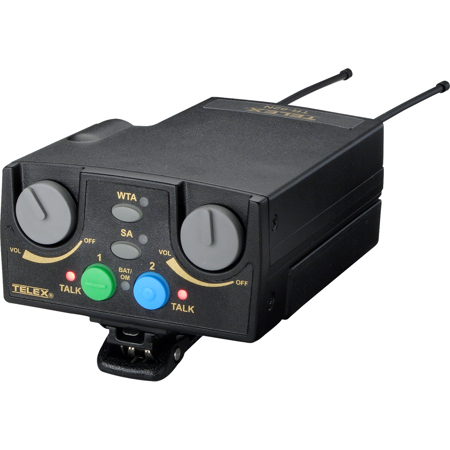

RTS Intercom Systems TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver with A4F Headset Jack, FD Band: 572-590MHz Transmit/482-500MHz Receive

SKU: RTS01U359405 MFR: F.01U.412.130
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless microphone beltpack transceiver.
  • Enjoy long-range connectivity for seamless communication in any production setting.
  • This wireless system features low latency, ensuring real-time audio transmission.
  • Benefit from exceptional durability, designed to withstand rigorous daily use on set.
  • Quick and easy setup gets your RTS intercom system running smoothly in minutes.
  • Maximize battery life with efficient power management for extended operation hours.
See More Product Details
Special Order?Estimated to Ship: 08/28/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4F,FD Band Specifications

Overall

Overall

Jump to...
  • RF Frequency Range

    FD Band: 572-590MHz Transmit/482-500MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH Optional)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • RX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • FCC ID

    B5DM531
    B5DM539

  • Frequency Response

    200 Hz-4 kHz

  • Microphone input sensitivity

    7 mV

  • Local Headset Output

    40 mW output into 600 O (1% Distortion)

  • Dimensions (W x H x D)

    3.75 x 5.35 x 2.02" (9.5 x 13.5 x 5.1cm)

  • Weight

    21 oz (595 g) with alkaline batteries

Transmitted

Jump to...
  • Type

    Synthesized

  • Transmit Power

    Selectable: auto, 5, 50, and 100 mW
    US 3 Band:, Selectable: auto, 5, 20 mW

  • Modulation Type

    FM

  • Deviation

    4kHz

  • RF Frequency Stability

    2.5 PPM

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics &Spurious

    Exceeds FCC specifications

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

Receiver

Jump to...
  • Type

    Two, Triple Conversion Superheterodyne Receivers, Synthesized, FM

  • RF Sensitivity

    <0.6 micro V for 12 dB SINAD

  • Squelch Threshold

    adjustable - 12/20/24 dB SINAD

  • IF Selectivity

    6 dB at 30 kHz bandwidth

  • Image Rejection

    70 dB or better

  • Squelch Quieting

    90 dB

  • RF Frequency Stability

    2.5 PPM

  • UPC Code

    800549933704

About RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4F,FD Band

Be at the forefront of professional wireless communication with the TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver. Designed for seamless integration with the BTR-80N, this frequency-agile beltpack is the epitome of innovation in the field of live event and theater production communication.

The TR-82N stands out with its dual listen capability, allowing users to monitor two separate channels simultaneously - "Tech" in one ear and "Production" in the other. This feature is essential for professionals who require clear, reliable communication in fast-paced environments. Individual volume controls provide users with the flexibility to fine-tune audio levels to their preference, ensuring crisp and distinct sound quality.

Crafted with durability in mind, the TR-82N boasts an all-metal cast magnesium case, ready to withstand the rigors of on-site use. The intuitive LCD-based graphical user interface simplifies operation, while the receiver RF meter keeps you informed of signal strength at all times.

Enhance your communication experience with features like stage announce activation, which allows you to direct your voice to the stage announce system with the press of a button, and wireless talk around (ISO) activation for direct beltpack-to-beltpack communication. The enhanced ClearScan function ensures you find the clearest channel for transmission swiftly and efficiently.

The TR-82N's versatility is further demonstrated by its detachable antennas and an auto-sensing headset connector, which automatically differentiates between electret and dynamic headset microphones. This level of adaptability makes it a reliable choice for a variety of headset options, adding to user convenience.

Control is at your fingertips with the on/off and volume control knobs, which double as a power switch for the beltpack. Engage in communication on either channel with ease, or turn off both knobs to power down the device. The Wireless Talk-Around (WTA) and Stage Announce (SA) functions are easily activated with dedicated buttons, each with visual LED indicators to confirm activation.

Maintain awareness of your beltpack's status with the Low Battery/Peak (BAT/PK) light, which provides instant feedback on battery life and microphone gain levels. The Talk Light indicator ensures you're always aware when your audio path is active.

The TR-82N is a high-quality, professional-grade tool that offers unparalleled flexibility and compatibility within the 572-590MHz transmit and 482-500MHz receive FD band range. Its innovative design and reliable performance make it the ideal choice for industry professionals seeking a superior wireless communication solution.

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4F,FD Band Features

  • Low Battery/Over modulation (BAT/OM) Light
  • On/Off & Volume Control
  • Receiver RF Meter
  • Stage Announce (SA)
  • Talk Button
  • Talk Light
  • Wireless Talk Around (WTA)

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless microphone beltpack transceiver.
  • Enjoy long-range connectivity for seamless communication in any production setting.
  • This wireless system features low latency, ensuring real-time audio transmission.
  • Benefit from exceptional durability, designed to withstand rigorous daily use on set.
  • Quick and easy setup gets your RTS intercom system running smoothly in minutes.
  • Maximize battery life with efficient power management for extended operation hours.

What's in the box:

  • RTS TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver
  • 2x 1/4-Wave Antennas
  • 6x AA Alkaline Battery
  • Belt Clip
  • LCD Cover
  • User Manual
  • RTS 3 Year Limited Warranty
