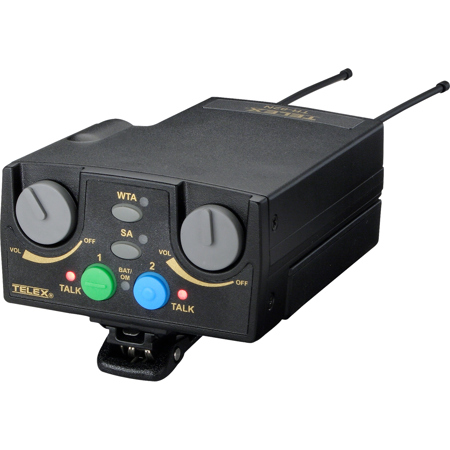

RTS Intercom Systems TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver with A5F Headset Jack, FD Band: 572-590MHz Transmit/482-500MHz Receive

SKU: RTS01U359406 MFR: F.01U.412.131
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this RTS wireless binaural beltpack transceiver.
  • Enjoy reliable connectivity; this wireless system operates on the FD band (572-590MHz).
  • This durable transceiver is built to withstand temperatures from -4°F to 130°F.
  • Achieve seamless team communication with low latency, essential for live events.
  • Customize your audio setup with adjustable squelch thresholds for optimal clarity.
  • Long-lasting power: Up to 595g with batteries, ensuring extended use during critical ops.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A5F,FD Band Specifications

Overall

Overall

Jump to...
  • RF Frequency Range

    FD Band: 572-590MHz Transmit/482-500MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH Optional)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • RX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • FCC ID

    B5DM531
    B5DM539

  • Frequency Response

    200 Hz-4 kHz

  • Microphone input sensitivity

    7 mV

  • Local Headset Output

    40 mW output into 600 O (1% Distortion)

  • Dimensions (W x H x D)

    3.75 x 5.35 x 2.02" (9.5 x 13.5 x 5.1cm)

  • Weight

    21 oz (595 g) with alkaline batteries

Transmitted

Jump to...
  • Type

    Synthesized

  • Transmit Power

    Selectable: auto, 5, 50, and 100 mW
    US 3 Band:, Selectable: auto, 5, 20 mW

  • Modulation Type

    FM

  • Deviation

    4kHz

  • RF Frequency Stability

    2.5 PPM

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics &Spurious

    Exceeds FCC specifications

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

Receiver

Jump to...
  • Type

    Two, Triple Conversion Superheterodyne Receivers, Synthesized, FM

  • RF Sensitivity

    <0.6 micro V for 12 dB SINAD

  • Squelch Threshold

    adjustable - 12/20/24 dB SINAD

  • IF Selectivity

    6 dB at 30 kHz bandwidth

  • Image Rejection

    70 dB or better

  • Squelch Quieting

    90 dB

  • RF Frequency Stability

    2.5 PPM

  • UPC Code

    800549933711

About RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A5F,FD Band

Take your production communication to the next level with the TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver. Designed for seamless integration with the BTR-80N, this frequency-agile wireless beltpack offers unparalleled audio clarity in the 572-590MHz transmit and 482-500MHz receive bands.

The TR-82N is a dual-listen beltpack, engineered to facilitate simultaneous monitoring of "Tech" and "Production" channels in each ear. With individual volume controls, you can effortlessly adjust the audio levels to suit your preferences.

Constructed with an all-metal cast magnesium case, the TR-82N is built to withstand the rigors of on-set use. Its LCD-based graphical user interface provides intuitive navigation, while the receiver RF meter ensures optimal signal strength.

The TR-82N is equipped with a stage announce activation feature, wireless talk around (ISO) activation, and enhanced ClearScan technology for interference-free communication. Its detachable antennas offer flexibility in various production environments, and the auto-sensing headset connector seamlessly switches between electret and dynamic headset mics for versatile usage.

The beltpack's power and volume controls are conveniently located on the front panel, allowing for easy on/off operation and volume adjustment for intercom channels "1" and "2". The Wireless Talk-Around (WTA) feature disconnects the user's audio from the wired intercom, auxiliary input/output, and the base station's local headset, while still allowing other beltpack users on the same audio channel to hear the user.

The Stage Announce (SA) feature routes the user's audio to the stage announce connector on the back of the base station, and the Talk Button enables the audio path to intercom channels 1, 2, or 1+2, from the local headset microphone.

The TR-82N also includes a Low Battery/Peak (BAT/PK) light indicator and a Talk Light that turns red when enabled by the associated TALK or WTA button.

In summary, the TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver is a robust, user-friendly solution for professional-grade on-set communication.

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A5F,FD Band Features

  • Low Battery/Over modulation (BAT/OM) Light
  • On/Off & Volume Control
  • Receiver RF Meter
  • Stage Announce (SA)
  • Talk Button
  • Talk Light
  • Wireless Talk Around (WTA)

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this RTS wireless binaural beltpack transceiver.
  • Enjoy reliable connectivity; this wireless system operates on the FD band (572-590MHz).
  • This durable transceiver is built to withstand temperatures from -4°F to 130°F.
  • Achieve seamless team communication with low latency, essential for live events.
  • Customize your audio setup with adjustable squelch thresholds for optimal clarity.
  • Long-lasting power: Up to 595g with batteries, ensuring extended use during critical ops.

What's in the box:

  • RTS TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver
  • 2x 1/4-Wave Antennas
  • 6x AA Alkaline Battery
  • Belt Clip
  • LCD Cover
  • User Manual
  • RTS 3 Year Limited Warranty
