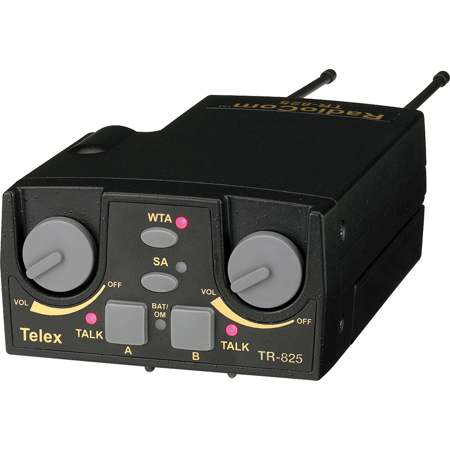

RTS Intercom Systems TR-825 2-Channel UHF Wireless Binaural Beltpack Transceiver with A4M Headset Jack, FE Band: 590-608MHz Transmit/482-500MHz Receive

SKU: RTS01U359410 MFR: F.01U.412.121
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this UHF wireless beltpack transceiver, perfect for demanding environments.
  • Enjoy reliable connection with the TR-825's synthesized, dual conversion receiver, ensuring minimal disruptions.
  • Achieve optimal sound quality with a frequency response of 300Hz-8kHz, ideal for clear voice communication.
  • Benefit from extended battery life using 6x AA batteries, keeping you connected throughout long events.
  • Ensure low latency communication with this FM modulated system, vital for live event coordination.
  • Operate confidently with a robust wireless microphone system, featuring replaceable 1/4 wave antennas.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-825 2-Ch UHF Wireless Binaural Beltpack Transceiver w/A4M Jack, FE Band Specifications

  • RF Frequency Range

    FE Band: 590-608MHz Transmit/482-500MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH optional)

  • TR-825 Current Draw

    190mA (Push-to-Talk A and B Talk On)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4Wave (supplied) Screw type, Replaceable

  • RX Antenna

    1/4 Wave (supplied) Screw type, Replaceable

  • Frequency Response

    300Hz-8kHz

  • Microphone Input Sensitivity

    7mV

  • Local Headset Output

    40mW output into 600W (1% distortion)

  • Transmitter Type

    Synthesized

  • Transmit Power

    50mW Max. (Auto-power reduction), 20 mW Max in US 3 Band, 653-663MHz (auto-power reduction)

  • Modulation Type

    FM

  • Deviation

    40kHz

  • RF Frequency Stability

    0.005%

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics & Spurious

    Complies with FCC specifications

  • Receiver Type

    Dual Conversion Super heterodyne, Synthesized, FM

  • RF Sensitivity

    <0.7micro V for 12dB SINAD

  • Squelch Threshold

    20dB SINAD (About 1.0micro V)

  • IF Selectivity

    3dB at 230kHz

  • Image Rejection

    70dB or better

  • Squelch Quieting

    90dB

  • Distortion

    <1% at full deviation

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

  • Dimensions (W x H x D)

    3.75 x 5.35 x 2.02" (9.5 x 13.5 x 5.1cm)

  • Weight

    With Alkaline Batteries: 21 oz (595g)

  • UPC Code

    800549933759

About RTS TR-825 2-Ch UHF Wireless Binaural Beltpack Transceiver w/A4M Jack, FE Band

Just imagine the convenience and efficiency of a two-channel UHF frequency-agile wireless beltpack, and you have the RTS TR-825. Designed for seamless integration with the BTR-800, the TR-825 is a dual listen and dual talk beltpack, offering the unique ability to simultaneously listen to "Tech" in one ear and "Production" in the other.

This advanced beltpack transceiver features individual volume controls for effortless level adjustment, ensuring optimal audio experience. Encased in a robust all-metal cast magnesium case, the TR-825 is built to withstand the rigors of professional use.

The device boasts an LCD-based graphical user interface for intuitive operation, along with stage announce activation and wireless talk around (ISO) activation. Its enhanced ClearScan technology, detachable antennas, and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics, further elevate its performance and versatility.

The On/Off & Volume Control not only powers the beltpack but also controls the headset volume for added convenience. The Wireless Talk Around (WTA) feature, when activated, disconnects the user's audio from the wired intercom, auxiliary input/output, and the base station's local headset, while still allowing other beltpack users on that audio channel to hear the user as normal.

The Stage Announce (SA) feature routes the user's audio to the stage announce connector on the back of the base station when activated. The Audio Channel Select Button allows the user to choose between audio channel A or B, providing flexibility in audio management.

The Bat/Overmod Light (BAT/OM) provides a visual indication of battery status and microphone gain setting, while the Talk Light LED indicates when the talk button, SA or WTA is active. The Talk Button enables the audio path from the local headset microphone, with a quick press and release latching the talk function for continuous communication.

In essence, the RTS TR-825 2-Channel UHF Wireless Binaural Beltpack Transceiver with A4M Headset Jack, FE Band: 590-608MHz Transmit/482-500MHz Receive, is a comprehensive solution for professional audio communication, offering unparalleled functionality and ease of use.

RTS TR-825 2-Ch UHF Wireless Binaural Beltpack Transceiver w/A4M Jack, FE Band Features

  • On/Off & Volume Control
  • Wireless Talk Around (WTA)
  • Stage Announce (SA)
  • Audio Channel Select Button
  • Bat/Overmod Light (BAT/OM)
  • Talk Light
  • Talk Button

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this UHF wireless beltpack transceiver, perfect for demanding environments.
  • Enjoy reliable connection with the TR-825's synthesized, dual conversion receiver, ensuring minimal disruptions.
  • Achieve optimal sound quality with a frequency response of 300Hz-8kHz, ideal for clear voice communication.
  • Benefit from extended battery life using 6x AA batteries, keeping you connected throughout long events.
  • Ensure low latency communication with this FM modulated system, vital for live event coordination.
  • Operate confidently with a robust wireless microphone system, featuring replaceable 1/4 wave antennas.

What's in the box:

  • RTS TR-825 2-Channel UHF Wireless Binaural Beltpack Transceiver
  • 2x 1/4 Wave Detachable Antennas
  • 6x AA Alkaline Battery
  • RTS 3 Year Limited Warranty
