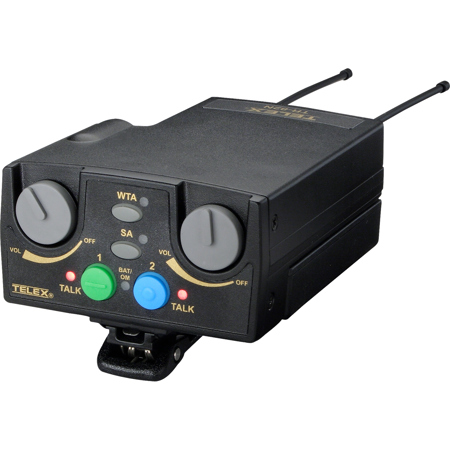

RTS Intercom Systems TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver with A4M Headset Jack, FE Band: 590-608MHz Transmit/482-500MHz Receive

SKU: RTS01U359416 MFR: F.01U.412.114
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this RTS Intercom wireless beltpack transceiver system.
  • Enjoy reliable connectivity for seamless communication using this wireless microphone system.
  • This durable wireless transmitter receiver operates flawlessly from -4 to 130 degrees F.
  • Get superior sound quality with a frequency response of 200 Hz-4 kHz in this system.
  • Customize your transmit power with selectable options for optimal battery life and range.
  • The TR-82N's lightweight design ensures comfort during extended use at only 21 oz with batteries.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4M,FE Band Specifications

Overall

Overall

Jump to...
  • RF Frequency Range

    FE Band: 590-608MHz Transmit/482-500MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH Optional)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • RX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • FCC ID

    B5DM531
    B5DM539

  • Frequency Response

    200 Hz-4 kHz

  • Microphone input sensitivity

    7 mV

  • Local Headset Output

    40 mW output into 600 O (1% Distortion)

  • Dimensions (W x H x D)

    3.75 x 5.35 x 2.02" (9.5 x 13.5 x 5.1cm)

  • Weight

    21 oz (595 g) with alkaline batteries

Transmitted

Jump to...
  • Type

    Synthesized

  • Transmit Power

    Selectable: auto, 5, 50, and 100 mW
    US 3 Band:, Selectable: auto, 5, 20 mW

  • Modulation Type

    FM

  • Deviation

    4kHz

  • RF Frequency Stability

    2.5 PPM

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics &Spurious

    Exceeds FCC specifications

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

Receiver

Jump to...
  • Type

    Two, Triple Conversion Superheterodyne Receivers, Synthesized, FM

  • RF Sensitivity

    <0.6 micro V for 12 dB SINAD

  • Squelch Threshold

    adjustable - 12/20/24 dB SINAD

  • IF Selectivity

    6 dB at 30 kHz bandwidth

  • Image Rejection

    70 dB or better

  • Squelch Quieting

    90 dB

  • RF Frequency Stability

    2.5 PPM

  • UPC Code

    800549933810

About RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4M,FE Band

What you have here is the TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver, a high-quality, durable, and innovative piece of audio equipment designed for seamless wireless communication. This advanced transceiver operates within the UHF frequency range, specifically in the FE band with a transmission frequency range of 590-608 MHz and a reception frequency range of 482-500 MHz.

This reliable transceiver is perfect for use in live events, theater productions, and any other situation where clear, wireless communication is essential. The TR-82N is a dual-listen beltpack, designed to allow you to simultaneously listen to two channels, such as "Tech" and "Production", with individual volume controls for easy level adjustment.

Constructed with an all-metal cast magnesium case, this transceiver is not only robust but also features an LCD-based graphical user interface and a receiver RF meter. It comes with stage announce activation, wireless talk around (ISO) activation, and enhanced ClearScan, ensuring optimal performance in various settings.

The TR-82N is equipped with detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics, providing flexibility and convenience. The on/off and volume control knobs are designed for ease of use, allowing you to control the power and headset volume for intercom channels "1" and "2".

The Wireless Talk-Around (WTA) and Stage Announce (SA) features provide additional control over your audio communication, while the low battery/peak light and talk light offer visual cues for the device's status and functionality.

In summary, the TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver is an advanced, reliable, and high-quality solution for your wireless communication needs.

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4M,FE Band Features

  • Low Battery/Over modulation (BAT/OM) Light
  • On/Off & Volume Control
  • Receiver RF Meter
  • Stage Announce (SA)
  • Talk Button
  • Talk Light
  • Wireless Talk Around (WTA)

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this RTS Intercom wireless beltpack transceiver system.
  • Enjoy reliable connectivity for seamless communication using this wireless microphone system.
  • This durable wireless transmitter receiver operates flawlessly from -4 to 130 degrees F.
  • Get superior sound quality with a frequency response of 200 Hz-4 kHz in this system.
  • Customize your transmit power with selectable options for optimal battery life and range.
  • The TR-82N's lightweight design ensures comfort during extended use at only 21 oz with batteries.

What's in the box:

  • RTS TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver
  • 2x 1/4-Wave Antennas
  • 6x AA Alkaline Battery
  • Belt Clip
  • LCD Cover
  • User Manual
  • RTS 3 Year Limited Warranty
