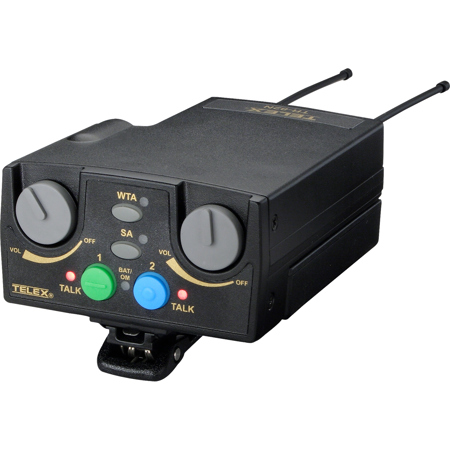

RTS Intercom Systems TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver with A4F Headset Jack, FE Band: 590-608MHz Transmit/482-500MHz Receive

SKU: RTS01U359417 MFR: F.01U.412.115
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this RTS wireless intercom beltpack transceiver.
  • Enjoy reliable connectivity using the 2-channel narrow band UHF wireless system.
  • This wireless microphone system is perfect for on-location film and broadcast use.
  • Customize your audio with selectable transmit power for optimal performance.
  • Long-lasting power: Operates on 6 AA batteries for extended use in the field.
  • Durable and reliable: Built to withstand demanding professional audio environments.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4F,FE Band Specifications

Overall

Overall

Jump to...
  • RF Frequency Range

    FE Band: 590-608MHz Transmit/482-500MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH Optional)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • RX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • FCC ID

    B5DM531
    B5DM539

  • Frequency Response

    200 Hz-4 kHz

  • Microphone input sensitivity

    7 mV

  • Local Headset Output

    40 mW output into 600 O (1% Distortion)

  • Dimensions (W x H x D)

    3.75 x 5.35 x 2.02" (9.5 x 13.5 x 5.1cm)

  • Weight

    21 oz (595 g) with alkaline batteries

Transmitted

Jump to...
  • Type

    Synthesized

  • Transmit Power

    Selectable: auto, 5, 50, and 100 mW
    US 3 Band:, Selectable: auto, 5, 20 mW

  • Modulation Type

    FM

  • Deviation

    4kHz

  • RF Frequency Stability

    2.5 PPM

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics &Spurious

    Exceeds FCC specifications

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

Receiver

Jump to...
  • Type

    Two, Triple Conversion Superheterodyne Receivers, Synthesized, FM

  • RF Sensitivity

    <0.6 micro V for 12 dB SINAD

  • Squelch Threshold

    adjustable - 12/20/24 dB SINAD

  • IF Selectivity

    6 dB at 30 kHz bandwidth

  • Image Rejection

    70 dB or better

  • Squelch Quieting

    90 dB

  • RF Frequency Stability

    2.5 PPM

  • UPC Code

    800549933827

About RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4F,FE Band

Where professional-grade wireless communication is paramount, the TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver emerges as the industry standard. Engineered for seamless integration with the BTR-80N, this advanced transceiver is designed to facilitate clear and reliable two-channel communication, with the capability to focus on distinct audio channels, such as "Tech" and "Production," independently in each ear. This feature is particularly beneficial for professionals in live production environments who require precise and simultaneous coordination between different departments.

Crafted with durability in mind, the TR-82N boasts an all-metal cast magnesium case, ensuring it can withstand the rigors of on-site use. The intuitive LCD-based graphical user interface provides users with essential information at a glance, including a receiver RF meter that helps monitor signal strength for optimal performance.

The transceiver's individual volume controls offer users the ability to fine-tune audio levels for each channel, ensuring clarity and comfort during extended use. Additionally, the TR-82N is equipped with enhanced ClearScan technology, which simplifies the process of finding the clearest frequency channel, thereby reducing setup time and improving overall efficiency.

For added versatility, the TR-82N features detachable antennas and an auto-sensing headset connector that seamlessly accommodates both electret and dynamic headset microphones. This thoughtful design element underscores the transceiver's commitment to user convenience and compatibility with a range of headset options.

The unit's Wireless Talk-Around (WTA) function is a standout feature, allowing users to disconnect from the wired intercom and communicate exclusively with other wireless beltpack users on the same channel. This is complemented by the Stage Announce (SA) feature, which directs the user's audio to the stage announce system, providing a direct line for important announcements without broadcasting to the entire network.

Operational control is straightforward and efficient, with On/Off and Volume Control knobs that double as power switches for the beltpack. The Talk Button facilitates easy activation of the audio path to the selected intercom channels, with a quick press for latching or a hold for momentary communication.

To ensure uninterrupted operation, the TR-82N includes a Low Battery/Peak (BAT/PK) indicator light that provides immediate feedback on battery status and microphone gain levels. This allows users to proactively manage their equipment and avoid any unexpected disruptions during critical moments.

In summary, the TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver is an exemplary choice for professionals seeking a high-quality, reliable, and advanced communication solution. Its wide frequency range, compatibility with various headsets, and robust feature set make it a superior option for those in the market for a professional-grade wireless transceiver.

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A4F,FE Band Features

  • Low Battery/Over modulation (BAT/OM) Light
  • On/Off & Volume Control
  • Receiver RF Meter
  • Stage Announce (SA)
  • Talk Button
  • Talk Light
  • Wireless Talk Around (WTA)

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this RTS wireless intercom beltpack transceiver.
  • Enjoy reliable connectivity using the 2-channel narrow band UHF wireless system.
  • This wireless microphone system is perfect for on-location film and broadcast use.
  • Customize your audio with selectable transmit power for optimal performance.
  • Long-lasting power: Operates on 6 AA batteries for extended use in the field.
  • Durable and reliable: Built to withstand demanding professional audio environments.

What's in the box:

  • RTS TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver
  • 2x 1/4-Wave Antennas
  • 6x AA Alkaline Battery
  • Belt Clip
  • LCD Cover
  • User Manual
  • RTS 3 Year Limited Warranty
