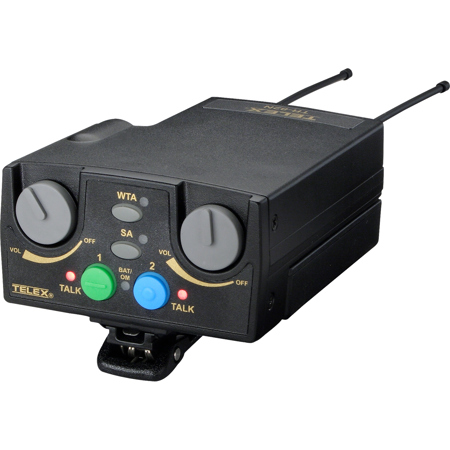

RTS Intercom Systems TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver with A5F Headset Jack, FE Band: 590-608MHz Transmit/482-500MHz Receive

SKU: RTS01U359418 MFR: F.01U.412.116
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this RTS wireless binaural beltpack transceiver.
  • Operate in the FE band (590-608MHz Tx/482-500MHz Rx) for reliable wireless communication.
  • Enjoy versatile power options with 6x AA batteries or optional NiMH for extended use.
  • Ensure clear communication with a frequency response of 200 Hz-4 kHz on your wireless system.
  • Achieve optimal sound with 40 mW local headset output into 600 Ohms for minimal distortion.
  • Rely on durable wireless performance from -4°F to 130°F, suitable for any environment.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A5F,FE Band Specifications

Overall

Overall

Jump to...
  • RF Frequency Range

    FE Band: 590-608MHz Transmit/482-500MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH Optional)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • RX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • FCC ID

    B5DM531
    B5DM539

  • Frequency Response

    200 Hz-4 kHz

  • Microphone input sensitivity

    7 mV

  • Local Headset Output

    40 mW output into 600 O (1% Distortion)

  • Dimensions (W x H x D)

    3.75 x 5.35 x 2.02" (9.5 x 13.5 x 5.1cm)

  • Weight

    21 oz (595 g) with alkaline batteries

Transmitted

Jump to...
  • Type

    Synthesized

  • Transmit Power

    Selectable: auto, 5, 50, and 100 mW
    US 3 Band:, Selectable: auto, 5, 20 mW

  • Modulation Type

    FM

  • Deviation

    4kHz

  • RF Frequency Stability

    2.5 PPM

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics &Spurious

    Exceeds FCC specifications

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

Receiver

Jump to...
  • Type

    Two, Triple Conversion Superheterodyne Receivers, Synthesized, FM

  • RF Sensitivity

    <0.6 micro V for 12 dB SINAD

  • Squelch Threshold

    adjustable - 12/20/24 dB SINAD

  • IF Selectivity

    6 dB at 30 kHz bandwidth

  • Image Rejection

    70 dB or better

  • Squelch Quieting

    90 dB

  • RF Frequency Stability

    2.5 PPM

  • UPC Code

    800549933834

About RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A5F,FE Band

When it comes to reliable and high-quality wireless communication, the TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver stands out. This advanced device, designed for use with the BTR-80N, is a frequency-agile wireless beltpack that operates in the UHF band.

The TR-82N is an innovative dual listen beltpack, enabling users to monitor two channels simultaneously - "Tech" and "Production" - in separate ears. This feature is complemented by individual volume controls for effortless level adjustment, enhancing the user experience.

Constructed with a durable all-metal cast magnesium case, the TR-82N is built to last. Its user-friendly LCD-based graphical interface, complete with a receiver RF meter, ensures easy operation. The device also boasts stage announce activation and wireless talk around (ISO) activation, providing additional functionality.

The TR-82N is equipped with enhanced ClearScan technology and detachable antennas for optimal performance. Its auto-sensing headset connector seamlessly switches between electret and dynamic headset mics, offering flexibility and convenience.

The device's on/off and volume control knobs not only power the beltpack but also control the headset volume for intercom channels "1" and "2". The Wireless Talk-Around (WTA) feature, when activated, disconnects the user's audio from the wired intercom, auxiliary input/output, and the base station's local headset, while still allowing other beltpack users on that audio channel to hear the user.

The TR-82N also includes a Stage Announce (SA) feature, which routes the user's audio to the stage announce connector on the back of the base station when activated. The Talk Button enables the audio path to intercom channels 1, 2, or 1+2, from the local headset microphone.

The device's Low Battery/Peak (BAT/PK) Light provides a visual indicator of battery status and microphone gain setting. The Talk Light, which turns red when enabled by the associated TALK or WTA button, provides a clear visual cue for communication status.

In summary, the TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver is a versatile, reliable, and high-quality solution for wireless communication needs.

RTS TR-82N 2-Ch Narrow Band Wireless Binaural Beltpack Transceiver w/A5F,FE Band Features

  • Low Battery/Over modulation (BAT/OM) Light
  • On/Off & Volume Control
  • Receiver RF Meter
  • Stage Announce (SA)
  • Talk Button
  • Talk Light
  • Wireless Talk Around (WTA)

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this RTS wireless binaural beltpack transceiver.
  • Operate in the FE band (590-608MHz Tx/482-500MHz Rx) for reliable wireless communication.
  • Enjoy versatile power options with 6x AA batteries or optional NiMH for extended use.
  • Ensure clear communication with a frequency response of 200 Hz-4 kHz on your wireless system.
  • Achieve optimal sound with 40 mW local headset output into 600 Ohms for minimal distortion.
  • Rely on durable wireless performance from -4°F to 130°F, suitable for any environment.

What's in the box:

  • RTS TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver
  • 2x 1/4-Wave Antennas
  • 6x AA Alkaline Battery
  • Belt Clip
  • LCD Cover
  • User Manual
  • RTS 3 Year Limited Warranty
