RTS Intercom Systems TR-800 2-Channel UHF Synthesized Wireless Beltpack Transceiver with A4M Headset Jack, HE Band: 590-608MHz Transmit/500-518MHz Receive

SKU: RTS01U359419 MFR: F.01U.412.117
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless beltpack transceiver, perfect for live events.
  • Enjoy reliable connectivity with the TR-800's UHF synthesized wireless microphone system.
  • The A4M headset jack ensures seamless integration with your favorite professional headsets.
  • Achieve superior sound quality with a wide 300Hz-8kHz frequency response for clear audio.
  • Benefit from long-lasting battery life with 6 AA batteries powering your wireless intercom.
  • Operate confidently with a robust wireless range, ideal for theater, broadcast, and more.
See More Product Details
Special Order?Estimated to Ship: 09/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-800 2-Ch UHF Wireless Beltpack Transceiver with A4M Headset Jack, HE Band Specifications

  • RF Frequency Range

    HE Band: 590-608MHz Transmit/500-518MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH optional)

  • TR-800 Current Draw

    140mA (Push-to-Talk, Talk On)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4 Wave (supplied) Screw type, Replaceable

  • RX Antenna

    1/4 Wave (supplied) Screw type, Replaceable

  • Frequency Response

    300Hz-8kHz

  • Microphone Input Sensitivity

    7mV

  • Local Headset Output

    40mW output into 600W (1% distortion)

  • Transmitter Type

    Synthesized

  • Transmit Power

    50mW Max. (Auto-power reduction), 20 mW Max in US 3 Band, 653-663MHz (auto-power reduction)

  • Modulation Type

    FM

  • Deviation

    40kHz

  • RF Frequency Stability

    0.005%

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics & Spurious

    Complies with FCC specifications

  • Receiver Type

    Dual Conversion Super heterodyne, Synthesized, FM

  • RF Sensitivity

    <0.7micro V for 12dB SINAD

  • Squelch Threshold

    20dB SINAD (About 1.0micro V)

  • IF Selectivity

    3dB at 230kHz

  • Image Rejection

    70dB or better

  • Squelch Quieting

    90dB

  • Distortion

    <1% at full deviation

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

  • Dimensions (W x H x D)

    3.75 x 5.05 x 1.65" (9.5 x 12.8 x 4.2cm)

  • Weight

    With Alkaline Batteries: 16 oz (454g)

  • UPC Code

    800549933841

About RTS TR-800 2-Ch UHF Wireless Beltpack Transceiver with A4M Headset Jack, HE Band

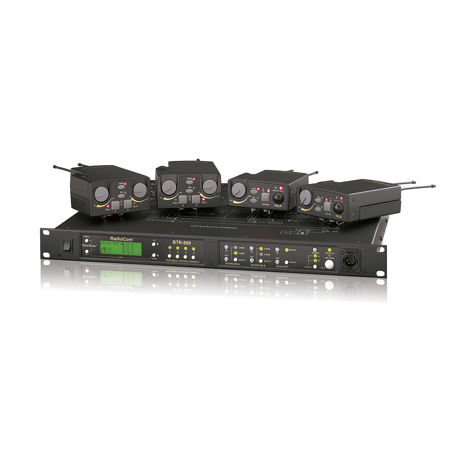

Why settle for less when you can have the RTS TR-800, a two-channel UHF frequency-agile wireless beltpack designed for seamless integration with the BTR-800 This advanced piece of technology is not just reliable, but it's also built to last with its durable all-metal cast magnesium case.

The TR-800 is equipped with an innovative LCD-based graphical user interface for easy navigation and control. It features individual volume controls for effortless level adjustment, ensuring optimal audio quality for your communication needs.

This high-quality transceiver stands out with its stage announce activation and wireless talk around (ISO) activation. The stage announce function allows the user's audio to be routed to the stage announce connector on the base station, while the wireless talk around disconnects the user's audio from the wired intercom, auxiliary input/output, and the base station's local headset.

The TR-800 also boasts an enhanced ClearScan feature and detachable antennas for superior signal reception and transmission. Its auto-sensing headset connector automatically switches between electret and dynamic headset mics, providing greater flexibility and convenience.

The beltpack is equipped with an audio channel select button, allowing users to easily switch between audio channels A or B. It also features a battery/overmodulation light that provides visual cues on battery status and microphone gain levels.

The talk light LED indicates when the talk button, stage announce, or wireless talk around is active. The talk button itself is designed for easy operation, enabling the audio path from the local headset microphone with a quick press and release.

In a world where clear, reliable communication is paramount, the RTS TR-800 2-Channel UHF Synthesized Wireless Beltpack Transceiver is your go-to solution for live events, theater productions, and more.

RTS TR-800 2-Ch UHF Wireless Beltpack Transceiver with A4M Headset Jack, HE Band Features

  • On/Off & Volume Control
  • Wireless Talk Around (WTA)
  • Stage Announce (SA)
  • Audio Channel Select Button
  • Bat/Overmod Light (BAT/OM)
  • Talk Light
  • Talk Button

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless beltpack transceiver, perfect for live events.
  • Enjoy reliable connectivity with the TR-800's UHF synthesized wireless microphone system.
  • The A4M headset jack ensures seamless integration with your favorite professional headsets.
  • Achieve superior sound quality with a wide 300Hz-8kHz frequency response for clear audio.
  • Benefit from long-lasting battery life with 6 AA batteries powering your wireless intercom.
  • Operate confidently with a robust wireless range, ideal for theater, broadcast, and more.

What's in the box:

  • RTS TR-800 2-Channel UHF Synthesized Wireless Beltpack Transceiver
  • 2x 1/4 Wave Detachable Antennas
  • 6x AA Alkaline Battery
  • RTS 3 Year Limited Warranty
