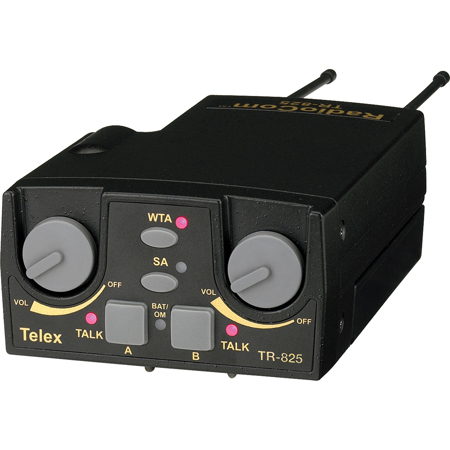

RTS Intercom Systems TR-825 2-Channel UHF Wireless Binaural Beltpack Transceiver with A4F Headset Jack, HE Band: 590-608MHz Transmit/500-518MHz Receive

SKU: RTS01U359423 MFR: F.01U.412.109
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this 2-channel UHF wireless beltpack transceiver.
  • Enjoy reliable connection for seamless communication during live events & broadcasts.
  • Ensure low latency with synthesized, FM modulation for real-time performance monitoring.
  • This wireless microphone system offers a wide 590-608MHz transmit frequency range.
  • Operate in comfort with a lightweight design & headset jack for hands-free use.
  • Maximize battery life with 6x AA batteries, perfect for extended use on location.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-825 2-Ch UHF Wireless Binaural Beltpack Transceiver w/A4F Jack, HE Band Specifications

  • RF Frequency Range

    HE Band: 590-608MHz Transmit/500-518MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH optional)

  • TR-825 Current Draw

    190mA (Push-to-Talk A and B Talk On)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4Wave (supplied) Screw type, Replaceable

  • RX Antenna

    1/4 Wave (supplied) Screw type, Replaceable

  • Frequency Response

    300Hz-8kHz

  • Microphone Input Sensitivity

    7mV

  • Local Headset Output

    40mW output into 600W (1% distortion)

  • Transmitter Type

    Synthesized

  • Transmit Power

    50mW Max. (Auto-power reduction), 20 mW Max in US 3 Band, 653-663MHz (auto-power reduction)

  • Modulation Type

    FM

  • Deviation

    40kHz

  • RF Frequency Stability

    0.005%

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics & Spurious

    Complies with FCC specifications

  • Receiver Type

    Dual Conversion Super heterodyne, Synthesized, FM

  • RF Sensitivity

    <0.7micro V for 12dB SINAD

  • Squelch Threshold

    20dB SINAD (About 1.0micro V)

  • IF Selectivity

    3dB at 230kHz

  • Image Rejection

    70dB or better

  • Squelch Quieting

    90dB

  • Distortion

    <1% at full deviation

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

  • Dimensions (W x H x D)

    3.75 x 5.35 x 2.02" (9.5 x 13.5 x 5.1cm)

  • Weight

    With Alkaline Batteries: 21 oz (595g)

  • UPC Code

    800549933889

About RTS TR-825 2-Ch UHF Wireless Binaural Beltpack Transceiver w/A4F Jack, HE Band

From professional broadcasting to live stage productions, the RTS TR-825 2-Channel UHF Wireless Binaural Beltpack Transceiver is a versatile and robust communication tool. Designed for seamless integration with the BTR-800, this frequency-agile beltpack operates within the HE Band, transmitting between 590-608MHz and receiving between 500-518MHz.

The TR-825 stands out with its dual listen and dual talk capabilities, enabling users to simultaneously monitor "Tech" and "Production" channels. Each channel comes with individual volume controls for precise audio level adjustments, enhancing the user experience.

Constructed with a sturdy all-metal cast magnesium case, the TR-825 is built to withstand rigorous use. It features an intuitive LCD-based graphical user interface for easy operation. The beltpack also boasts stage announce activation and wireless talk around (ISO) activation, providing users with flexible communication options.

The TR-825 is equipped with enhanced ClearScan technology and detachable antennas for optimal signal reception. Its auto-sensing headset connector seamlessly switches between electret and dynamic headset mics, adding to its versatility.

The beltpack's power and headset volume can be easily controlled with the On/Off & Volume Control. The Wireless Talk Around (WTA) and Stage Announce (SA) features provide users with additional control over their audio routing.

The Audio Channel Select Button allows users to effortlessly switch between audio channels A or B. The Bat/Overmod Light (BAT/OM) serves as a useful indicator of battery status and microphone gain setting.

The Talk Light LED indicates when the talk button, SA or WTA is active. The Talk Button itself is designed for ease of use, enabling the audio path from the local headset microphone with a simple press.

In summary, the RTS TR-825 2-Channel UHF Wireless Binaural Beltpack Transceiver combines advanced features, robust construction, and user-friendly design, making it an ideal choice for professionals seeking reliable wireless communication solutions.

RTS TR-825 2-Ch UHF Wireless Binaural Beltpack Transceiver w/A4F Jack, HE Band Features

  • On/Off & Volume Control
  • Wireless Talk Around (WTA)
  • Stage Announce (SA)
  • Audio Channel Select Button
  • Bat/Overmod Light (BAT/OM)
  • Talk Light
  • Talk Button

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this 2-channel UHF wireless beltpack transceiver.
  • Enjoy reliable connection for seamless communication during live events & broadcasts.
  • Ensure low latency with synthesized, FM modulation for real-time performance monitoring.
  • This wireless microphone system offers a wide 590-608MHz transmit frequency range.
  • Operate in comfort with a lightweight design & headset jack for hands-free use.
  • Maximize battery life with 6x AA batteries, perfect for extended use on location.

What's in the box:

  • RTS TR-825 2-Channel UHF Wireless Binaural Beltpack Transceiver
  • 2x 1/4 Wave Detachable Antennas
  • 6x AA Alkaline Battery
  • RTS 3 Year Limited Warranty
