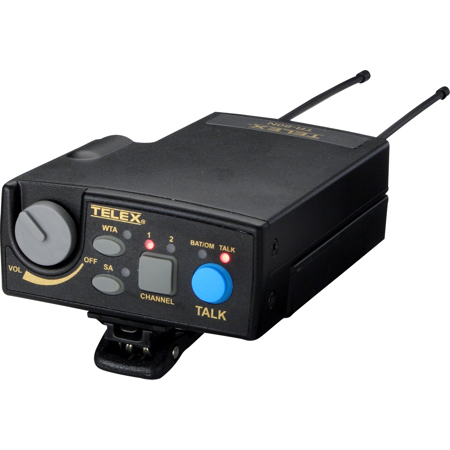

RTS Intercom Systems TR-80N 2-Channel Narrow Band UHF Synthesized Wireless Beltpack Transceiver with A4M Headset Jack, HE Band: 590-608MHz Transmit/500-518MHz Receive

SKU: RTS01U359425 MFR: F.01U.412.053
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless beltpack transceiver, perfect for live events.
  • Enjoy reliable, long-range wireless microphone connectivity with selectable transmit power options.
  • Ensure seamless communication using this synthesized FM wireless system with exceptional stability.
  • The rugged design of this wireless transmitter receiver guarantees durability in demanding environments.
  • Customize your audio setup with the A4M headset jack on this versatile wireless microphone system.
  • Benefit from low latency and high-quality sound with this 2-channel narrow band UHF transceiver.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-80N 2-Ch Narrow Band Wireless Beltpack Transceiver with A4M Jack, HE Band Specifications

Overall

Overall

Jump to...
  • RF Frequency Range

    HE Band: 590-608MHz Transmit/500-518MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH Optional)

  • Current Draw

    200mA (Push-To-Talk, Talk On)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • RX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • FCC ID

    B5DM530
    B5DM538

  • Frequency Response

    200Hz-4kHz

  • Microphone input sensitivity

    7mV

  • Local Headset Output

    40mW output into 600 Ohm (1% Distortion)

  • Dimensions (W x H x D)

    3.75 x 5.05 x 1.65" (9.5 x 12.8 x 4.2cm)

  • Weight

    With Alkaline Batteries: 16 oz (454g)

Transmitter

Jump to...
  • Type

    Synthesized

  • Transmit Power

    Selectable: auto, 5, 50, and 100mW
    US 3 Band:, Selectable: auto, 5, 20 mW

  • Modulation Type

    FM

  • Deviation

    4kHz

  • RF Frequency Stability

    2.5PPM

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics &Spurious

    Exceeds FCC specifications

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

Receiver

Jump to...
  • Type

    Triple Conversion Superheterodyne, Synthesized FM

  • RF Sensitivity

    <0.6micro V for 12dB SINAD

  • Squelch Threshold

    Adjustable - 12/20/24dB SINAD (about 1.0 micro V)

  • IF Selectivity

    6dB at 30kHz bandwidth

  • Image Rejection

    70dB or better

  • Squelch Quieting

    90dB

  • RF Frequency Stability

    2.5 PPM

  • UPC Code

    800549933902

About RTS TR-80N 2-Ch Narrow Band Wireless Beltpack Transceiver with A4M Jack, HE Band

Why settle for less when you can have the best in wireless communication The TR-80N 2-Channel Narrow Band UHF Synthesized Wireless Beltpack Transceiver is a high-quality, reliable, and user-friendly device designed for seamless wireless communication. It's perfect for use in live events, theater productions, and other environments where clear, uninterrupted communication is essential.

This innovative transceiver operates within the 590-608 MHz frequency range for transmission and 500-518 MHz for reception, making it a versatile choice for various applications. It's designed with an A4M headset jack, allowing for direct headset connection without the need for additional accessories, streamlining your communication setup.

The TR-80N is more than just a transceiver; it's a testament to durable and advanced technology. Encased in an all-metal cast magnesium case, it's built to withstand the rigors of professional use. Its LCD-based graphical user interface and receiver RF meter provide an intuitive user experience, while the stage announce activation and wireless talk around (ISO) activation offer added convenience.

With the TR-80N, you have complete control over your audio settings. The On/Off Volume Control powers the beltpack, while the Wireless Talk-Around (WTA) and Stage Announce (SA) features allow for flexible audio routing. The Audio Channel Select Button lets you choose between audio channel 1 or 2, and the Bat/Peak Light provides a visual indicator of your battery status and microphone gain setting.

The Talk Light LED indicates when the talk button, SA, or WTA is active, and the Talk Button itself enables the audio path from your local headset microphone. Whether you need to latch the talk function or hold it for a specific duration, the TR-80N gives you the flexibility you need for effective communication.

In a world where clear, reliable communication is key, the TR-80N 2-Channel Narrow Band UHF Synthesized Wireless Beltpack Transceiver stands out as a top choice for professionals.

RTS TR-80N 2-Ch Narrow Band Wireless Beltpack Transceiver with A4M Jack, HE Band Features

  • Audio Channel Select Button
  • Low Battery/Over modulation (BAT/OM) Light
  • On/Off & Volume Control
  • Receiver RF Meter
  • Stage Announce (SA)
  • Talk Button
  • Talk Light
  • Wireless Talk Around (WTA)

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless beltpack transceiver, perfect for live events.
  • Enjoy reliable, long-range wireless microphone connectivity with selectable transmit power options.
  • Ensure seamless communication using this synthesized FM wireless system with exceptional stability.
  • The rugged design of this wireless transmitter receiver guarantees durability in demanding environments.
  • Customize your audio setup with the A4M headset jack on this versatile wireless microphone system.
  • Benefit from low latency and high-quality sound with this 2-channel narrow band UHF transceiver.

What's in the box:

  • RTS TR-80N 2-Channel Narrow Band UHF Synthesized Wireless Beltpack Transceiver
  • 2x 1/4-Wave Antennas
  • 6x AA Alkaline Battery
  • Belt Clip
  • LCD Cover
  • User Manual
  • RTS 3 Year Limited Warranty
