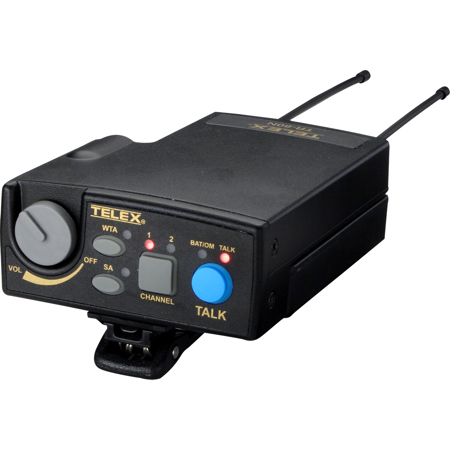

RTS Intercom Systems TR-80N 2-Channel Narrow Band UHF Synthesized Wireless Beltpack Transceiver with A4F Headset Jack, HE Band: 590-608MHz Transmit/500-518MHz Receive

SKU: RTS01U359426 MFR: F.01U.412.040
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless beltpack transceiver, perfect for live events.
  • Enjoy reliable wireless range with selectable transmit power, up to 100mW for optimal signal.
  • This durable wireless microphone system operates in a wide temperature range, from -4 to 130°F.
  • Achieve seamless communication with low latency using this synthesized FM wireless transmitter.
  • Benefit from the ease of use with the A4F headset jack, offering versatile audio connectivity.
  • The TR-80N wireless system ensures long-lasting performance with up to 200mA current draw.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS TR-80N 2-Ch Narrow Band Wireless Beltpack Transceiver with A4F Jack, HE Band Specifications

Overall

Overall

Jump to...
  • RF Frequency Range

    HE Band: 590-608MHz Transmit/500-518MHz Receive

  • Power Requirements

    6x AA Cells Alkaline (NiMH Optional)

  • Current Draw

    200mA (Push-To-Talk, Talk On)

  • Temperature Range

    -4 Degree F to 130 Degree F (-20 Degree C to 55 Degree C)

  • TX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • RX Antenna

    1/4 Wave (supplied), Screw Type, Replaceable

  • FCC ID

    B5DM530
    B5DM538

  • Frequency Response

    200Hz-4kHz

  • Microphone input sensitivity

    7mV

  • Local Headset Output

    40mW output into 600 Ohm (1% Distortion)

  • Dimensions (W x H x D)

    3.75 x 5.05 x 1.65" (9.5 x 12.8 x 4.2cm)

  • Weight

    With Alkaline Batteries: 16 oz (454g)

Transmitter

Jump to...
  • Type

    Synthesized

  • Transmit Power

    Selectable: auto, 5, 50, and 100mW
    US 3 Band:, Selectable: auto, 5, 20 mW

  • Modulation Type

    FM

  • Deviation

    4kHz

  • RF Frequency Stability

    2.5PPM

  • Modulation Limiter

    Peak-Responding Compressor

  • Radiated Harmonics &Spurious

    Exceeds FCC specifications

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

Receiver

Jump to...
  • Type

    Triple Conversion Superheterodyne, Synthesized FM

  • RF Sensitivity

    <0.6micro V for 12dB SINAD

  • Squelch Threshold

    Adjustable - 12/20/24dB SINAD (about 1.0 micro V)

  • IF Selectivity

    6dB at 30kHz bandwidth

  • Image Rejection

    70dB or better

  • Squelch Quieting

    90dB

  • RF Frequency Stability

    2.5 PPM

  • UPC Code

    800549933919

About RTS TR-80N 2-Ch Narrow Band Wireless Beltpack Transceiver with A4F Jack, HE Band

Discover the TR-80N 2-Channel Narrow Band UHF Synthesized Wireless Beltpack Transceiver, a high-quality, durable, and user-friendly device designed for seamless wireless communication. This innovative transceiver operates within the UHF frequency range of 590-608MHz for transmission and 500-518MHz for reception, ensuring minimal interference and optimal performance.

Encased in a robust all-metal cast magnesium shell, the TR-80N is compact and designed to withstand rigorous use. It features a clear, easy-to-navigate LCD graphical user interface and a receiver RF meter for precise control and monitoring.

The TR-80N is equipped with a stage announce activation feature and wireless talk around (ISO) activation, enhancing its functionality in live events and theater productions. The enhanced ClearScan technology ensures clear, uninterrupted communication, while the detachable antennas add to its adaptability.

The auto-sensing headset connector is a standout feature, automatically switching between electret and dynamic headset mics, offering compatibility with a wide range of headsets. This transceiver also features an on/off volume control for easy operation.

The Wireless Talk-Around (WTA) and Stage Announce (SA) features allow for flexible audio routing, while the Audio Channel Select Button lets users switch between audio channels 1 and 2 effortlessly. The Bat/Peak Light (BAT/PK) provides a clear indication of battery status, ensuring you're never caught off guard during crucial moments.

The Talk Button enables the audio path from the local headset microphone, with a quick press and release latching the talk function for continuous communication. The TR-80N is not just a transceiver; it's a reliable partner for all your wireless communication needs.

RTS TR-80N 2-Ch Narrow Band Wireless Beltpack Transceiver with A4F Jack, HE Band Features

  • Audio Channel Select Button
  • Low Battery/Over modulation (BAT/OM) Light
  • On/Off & Volume Control
  • Receiver RF Meter
  • Stage Announce (SA)
  • Talk Button
  • Talk Light
  • Wireless Talk Around (WTA)

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless beltpack transceiver, perfect for live events.
  • Enjoy reliable wireless range with selectable transmit power, up to 100mW for optimal signal.
  • This durable wireless microphone system operates in a wide temperature range, from -4 to 130°F.
  • Achieve seamless communication with low latency using this synthesized FM wireless transmitter.
  • Benefit from the ease of use with the A4F headset jack, offering versatile audio connectivity.
  • The TR-80N wireless system ensures long-lasting performance with up to 200mA current draw.

What's in the box:

  • RTS TR-80N 2-Channel Narrow Band UHF Synthesized Wireless Beltpack Transceiver
  • 2x 1/4-Wave Antennas
  • 6x AA Alkaline Battery
  • Belt Clip
  • LCD Cover
  • User Manual
  • RTS 3 Year Limited Warranty
