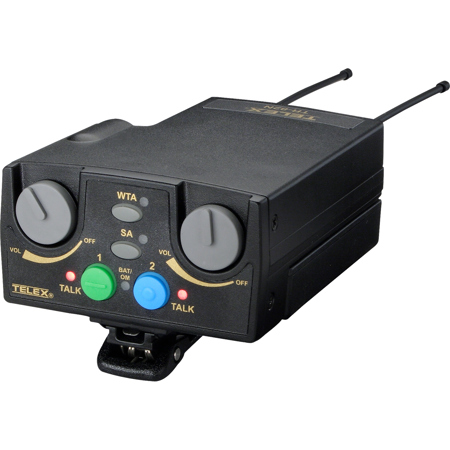

RTS Intercom Systems TR-82N 2-Channel Narrow Band UHF Wireless Binaural Beltpack Transceiver with A4M Headset Jack, HE Band: 590-608MHz Transmit/500-518MHz Receive

The TR-82N is a two-channel Narrow Band UHF frequency-agile wireless beltpack for use with the BTR-80N. The TR-82N is a dual listen beltpack, allowing you to listen to "Tech" in one ear and "Production" in the other. Individual volume controls also allow for easy level adjustment. The TR-82N also features an all-metal cast magnesium case, and LCD based graphical user interface, receiver RF meter, stage announce activation, wireless talk around (ISO) activation, enhanced ClearScan, detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics.

On/Off and Volume Control
Turns beltpack power on and controls headset volume for intercom channels "1" and "2". Either knob, "1" or "2", turns the beltpack on. Both knobs must be off to turn the beltpack off. If only one knob is on, the intercom channel "1" or "2" is on for both transmit and receive.

Wireless Talk-Around (WTA)
When pressed, the user's audio disconnects from the wired intercom, auxiliary input/output, and the base station's local headset. Other beltpack users on that audio channel can hear the user as normal. The software can select which intercom channel(s)-1, 2, 1+2, or the currently selected channel-is activated with the WTA button. The WTA button activates the nearby red LED as well as the software-selected intercom channels TALK LED if not already active.

Stage Announce (SA)
When pressed, the user's audio routes to the stage announce connector on the back of the base station. The user also loses their sidetone, indicating stage announce is active. The other wireless beltpacks and wired users do not hear the user's audio. The button is nonlatching and activates the nearby red LED and TALK button.

Talk Button
Press to enable the audio path to intercom channels 1, 2, or 1+2, from the local headset microphone. The associated TALK LED #6 turns red when enabled. A quick press and release latches the talk function, unless latching has been disabled., Holding the button for over 1/2 second causes the audio path to be enabled only for as long as the button is held. If the talk function is latched on, pressing the talk button again and it turns off.

Low Battery/Peak (BAT/PK) Light
Light flashes once when unit is turned on if the battery is good. If the light stays on, the battery is low. If the light does not flash, the battery is dead. A normal microphone gain setting causes the LED to flash for some words at normal speech levels. If the gain is too high, the LED displays red during all words at normal speech levels.

Talk Light
Turns red when enabled by associated TALK or WTA button.
