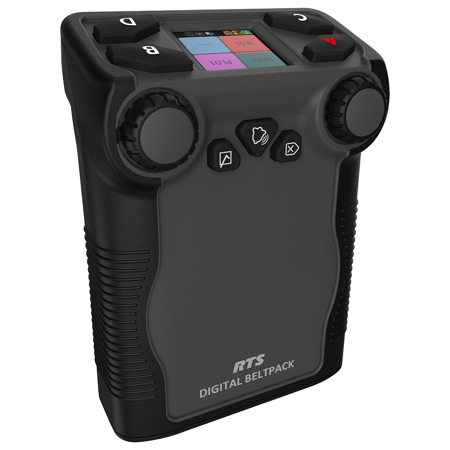

RTS Intercom Systems DBP 4-Channel IP Digital Wired Beltpack Transceiver with 4F Headset

SKU: RTS01U363443 MFR: F.01U.363.443
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this 4-channel digital beltpack transceiver.
  • Enjoy seamless communication with wired intercom systems, perfect for live events.
  • The wired beltpack offers reliable, low latency for critical production environments.
  • This transceiver features a rugged design, ensuring durability in demanding conditions.
  • Easily manage your audio with intuitive controls and a clear, bright display.
  • The digital beltpack supports various headset types for personalized comfort.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS Intercom Systems DBP Specifications

Power Supply

Power Supply

Jump to...
  • DC PoE

    802.3af / 802.3at

  • Maximum Power Consumption

    4.0W (PoE DC Input)

Environmental

Jump to...
  • Operating Temperature

    -4 Degree F - 113 Degree F (-20 Degree C - 45 Degree C) 5% to 90% relative humidity

  • Storage Temperature

    -4 Degree F - 158 Degree F (-20 Degree C - 70 Degree C) 15% to 90% relative humidity

Microphone Pre-Amplifier

Jump to...
  • XLR Input

    Electret Mic Input: -42.5 dBu Nominal
    Dynamic Mic Input: -50 dBu Nominal
    Frequency Response (LEC disabled): 120 Hz to 20 kHz
    Frequency Response (LEC enabled): 120 Hz to 7.4 kHz

  • 3.5mm Input

    Electret Mic Input: -42.5 dBu Nominal
    Frequency Response (LEC disabled): 120 Hz to 20 kHz
    Frequency Response (LEC enabled): 120 Hz to 7.4 kHz

  • Bluetooth Input

    Frequency Response: 70 Hz to 3.4 kHz

Headphone Amplifier

Jump to...
  • XLR Headphone Response (150 Ohm load)

    30 Hz to 19 kHz

  • 3.5mm Headphone Response (32 Ohm load)

    50 Hz to 19 kHz

  • Bluetooth Headphone Response

    30 Hz to 3.4 kHz

  • Nominal Input

    -4.3 dBu

  • Frequency Response (600 Ohm load)

    50 Hz to 20 kHz

Aux Out

Jump to...
  • Nominal Input

    2.2 dBu

  • Frequency Response (600 Ohm load)

    25 Hz to 20 kHz

OMNEO Ports (PoE In and PoE Out)

Jump to...
  • Maximum Capacity

    2 Full-duplex ports

  • Copper Connector Type

    RJ-45

  • Format

    IEEE 802.3 compliant

  • Copper Ethernet Speed

    100/1000 Mbps

Bluetooth

Jump to...
  • Bluetooth Version

    4.0

  • Approved dongles

    IO Gear GBU522
    LM Technologies LM506

  • Range

    15' (5m)

  • Audio Codec

    SBC

TFT Display

Jump to...
  • Active Area (W x H)

    27.72 x 27.72mm

  • Dot Resolution

    240 x 240 pixels

  • Color Resolution

    16-bit (64K) RGB color

  • View Angle

    80 Degree (typical, all directions)

  • Protective Lens

    Anti-Glare / Anti-Reflective

Approvals

Jump to...
  • Approvals

    CE Compliant
    UL Certified

Physical

Jump to...
  • Dimensions (L x W x D)

    5.51 x 3.94 x 2.64" (140 x 100 x 67mm)

  • Weight

    11.99 oz (340g)

  • UPC Code

    800549944069

About RTS Intercom Systems DBP

DBP is a four-channel/four-button wired beltpack that runs on PoE+ (Power over Ethernet 802.3af and 802.3at) and connects using OMNEO IP technology. Its unique hybrid design supports both digital partyline and matrix keypanel modes: for use as a digital partyline device, DBP connects to an OMS; for use as a portable keypanel, including functionality like point-to-point communication, DBP can be connected to any RTS digital/IP matrix product using OMNEO - including OMI cards in ADAM/ADAM-M frames or OMNEO ports on ODIN frames. DBP automatically selects the correct mode of operation (digital partyline/OMS or keypanel/matrix) when connected and switched on.

DBP's PoE-driven design gives it an unmatched level of scalability and makes it easy to add new users. In and Out PoE ports (two etherCON locking RJ45 connectors) allow up to six DBP devices to be daisy-chained together from the same PoE switch port when used in partyline mode. Up to 40 DBPs can be connected to an OMS, allowing for the creation of an extensive digital partyline system - all in addition to the other wired and wireless devices OMS supports. Depending on the matrix model/configuration, up to 64 DBPs can be connected to an OMI card for ADAM matrices, and up to 128 DBPs can be connected to one ODIN.

Hybrid functionality
Operate DBP in partyline mode with OMS (OMNEO Main Station) or in portable keypanel mode with an RTS matrix (ODIN/ADAM) - one device covers it all.

Daisy chaining
Connect DBP to a PoE switch via OMS/ODIN/ADAM and up to six DBPs can be daisy chained together.

User friendly
Lightweight and ergonomic design with full-color icon-based menu navigation for quick setup and intuitive operation

RTS Intercom Systems DBP Features

  • Incorporates both XLR and 3.5mm TRRS connectors for headsets which are available with 4-pin female
  • PoE powered via an 802.3af or 802.3at managed switch or PoE injector. Contains a PoE In and PoE Out port which allows up to 6 DBPs to be daisy-chain connected to the same PoE(+) switch port
  • Supports Bluetooth audio connectivity using either an IO Gear GBU522 dongle or an LM Technologies LM506 dongle
  • DBP can be connected to the OMNEO main station (Digital Partyline) or an OMNEO capable matrix (OMI card or ODIN). DBP can support up to four active Party Lines. 40 DBPs can be connected to OMS (based on the model), 64 DBPs can be connected to one OMI card (based on the model), 128 DBPs can be connected to one ODIN (based on the model)
  • Incoming CALL notifications via audible alerts or haptic vibration

Key Features

  • Experience crystal-clear audio with this 4-channel digital beltpack transceiver.
  • Enjoy seamless communication with wired intercom systems, perfect for live events.
  • The wired beltpack offers reliable, low latency for critical production environments.
  • This transceiver features a rugged design, ensuring durability in demanding conditions.
  • Easily manage your audio with intuitive controls and a clear, bright display.
  • The digital beltpack supports various headset types for personalized comfort.

What's in the box:

  • RTS DBP 4-Channel IP Digital Wired Beltpack Transceiver
  • Belt Clip
  • RTS 3 Year Limited Warranty
