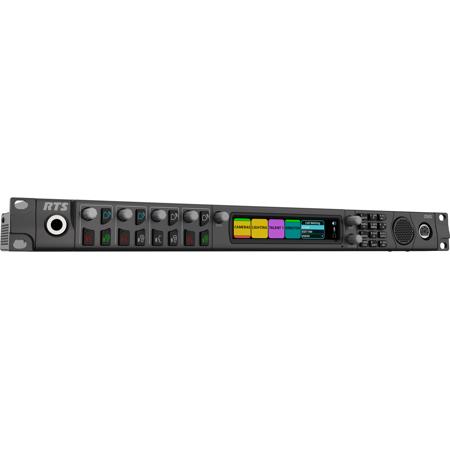

RTS Intercom Systems OMS OMNEO Main Station Advanced 4-Channel Digital Partyline Intercom System with 4M XLR Headset Connector

OMS (OMNEO Main Station) is the beginning of a new era of intercom systems called RTS Digital Partyline. This powerful single system bridges legacy analog partyline users who wish to migrate to digital functionality while using their existing equipment. Furthermore, OMS connects both wired and wireless intercom products. OMS represents an incredibly versatile and easy-to-use solution for a wide range of applications - a communications multi-tool for theaters, houses of worship, industrial, broadcast and event venues.

Using OMNEO, OMS interconnects with our digital matrix products including keypanels, ROAMEO wireless and digital beltpacks. OMNEO is an architectural approach to connecting devices that need to exchange information such as audio content or device control (Dante & control). In addition, it can serve as a stand-alone base station for ROAMEO, RTS's digital wireless communication solution based upon DECT.

The OMS is available in five licensed models; Analog Only, Analog Plus, Basic, Intermediate and Advanced. The OMS allows for increased capacity and functionality as business needs grow.

The OMS has the easy-to-use RTS digital icon-based front panel display, along with a simplified menu structure to allow system configuration and control from the front panel and display.

Capacity
OMS supports 4 ports of analog AIO 4-wire and 4 ports of analog 2-wire (RTS / Audiocom / Clear-Com formats supported). Auto nulling capability (echo cancellation) available on 2-wire interfaces. Supports up to 40 OMNEO or ROAMEO beltpacks and up to 16 partylines. Ethernet connectivity is available through copper or fiber connections. OMS supports up to 8 keypanels (any mix of analog/OMNEO/RVON) depending upon product licensing (maximum 4 analog keypanels).

Scalability
A single OMS is available in five licensed configurations to suit the user's budget and application requirements: Analog and Analog Plus configurations (main station options for analog-only partyline systems). Basic, Intermediate and Advanced digital configurations (each with OMNEO); software upgrades allow for increased capacity and functionality as needs evolve. Analog and Analog Plus users requiring both analog and digital should upgrade to OMS Intermediate or OMS Advanced as the Basic digital provides only OMNEO formats.

Form Factor
A compact main station is presented in a compact 1RU enclosure, which means it can be mounted in a standard.

Ambient Operating Temperature
The main station shall have built-in cooling based on forced air circulation to allow it to operate at an ambient temperature up to 0 Degree C - 45 Degree C (32 Degree F - 113 Degree F).

Mechanical Structure
The main station front-panel user interface features a color display capable of displaying information about the unit, two rotary encoders with push-function, a full numeric keypad with backlight, channel controls, mic, and speaker.

Front Panel Features

Front Panel Display Properties
The active area of the display is 120 mm x 19 mm. The resolution must is 4.7 pixels per mm (approximately 120 dpi), with the ability to reproduce a minimum of 65536 colors. The luminance of the display is user-adjustable up to the maximum rating, which is no less than 12,500 Candela per square meter of display, when all pixels are set to show white. The display technology is TFT. Display viewing angle is 80 degrees, vertically and horizontally.

Front Panel Display GUI
The features of the main station are directly available through an icon-driven Graphical User Interface (GUI) where individual user-configurable functions are selectable from hierarchically organized menus. Up to seven icons may be displayed on any single menu. It is possible for the user to navigate through the menus and select individual items using the rotary knobs and/or the keypad.

Front Panel Keypad
The keypad has all the digits from 0 to 9 plus two extra keys for clear and select functions. Shift function allows dual functionality for each key adding additional quick keys and navigation. The keypad has selectable blue and white backlight.

Channel Controls
The keys for Listen, Call, and Talk have backlight and are similar (in material and "touch-and-feel", including amount of tactile feedback) to the keys on the keypad. The color scheme for functions are: Talk (Red), Listen (Green), Call (Blue); idle state is white. The rotary encoder for volume/program is similar to the rotary encoders located next to the keypad.

Front Panel Mic
OMS has an electrical connector for a front panel microphone, using the same proven circuitry as the latest generation of KP-Series keypanels. It is designed for electret only. Mechanically and electrically it is compatible with the RTS MCP-90 series of panel microphones.

Front Panel Speaker
OMS has a built-in front speaker for listening to audio communication. Frequency range is 200 Hz to 7300 Hz, flatness plus or minus 3 dB across that range.

Front Panel Headset Connector
OMS has a front-panel headset XLR connector with the following optional genders: 4M, 4F, 5F. The 5F actually has 6; an extra center pin is provided for PTT. For the microphone portion it can self-sense dynamic or electret microphones. Each OMS version equipped with the required headset connector can be ordered by individual part number.

Rear Features

Power Connectors
The OMS has one independent universal power supply input for 100-240 VAC on the rear. The connector supports locking power cables, to prevent them from falling out.

Two-Wire Connectors
Unit has four locking female 3-pin XLR for analog two-wire partyline. Single and dual-channel two-wire are supported. RTS, Clear-Com, and Audiocom wiring formats are supported.

Program Inputs
OMS has two locking female 3-pin XLR connectors for program inputs. Differential RX/TX audio signal format is supported.

Stage Announcement Output
OMS has one male locking 3-pin XLR connector for stage announce output. Differential RX/TX audio signal format is supported.

Four-Wire Audio Ports
OMS has four RJ-45 connectors for analog input and output. The wiring is for external audio and data sources. RJ45 is the most ubiquitous cable in the industry, most easily obtainable. Support for TIF devices is available.

General Purpose Input/Output
A 24-terminal GPIO is available on the rear of the OMS. It has four internal relays and four opto-coupled inputs (with pull-up resistors, just as in ODIN). OMS ships with one (1) matching connector. The connector has a locking device to prevent it from falling out.

Control-Port RJ-45
An RJ-45 Ethernet connector is available for connection of a laptop running AZ-Edit or IP-Edit.

Rvon Port
An RJ-45 Ethernet connector is available for RVON devices. The unit has capacity for up to four (4) simultaneous VoIP channels with G.711, G.729ab, and G.722 codecs supported.

Omneo Copper RJ-45
Two RJ-45 Ethernet connectors are available for connection of OMNEO devices. Use cases include loop-through, RSTP hookups, plus various test cases.

Omneo Fiber SFP
Two OMNEO SFPs are available on the rear of the OMS. SFP modules have to be ordered separately.
