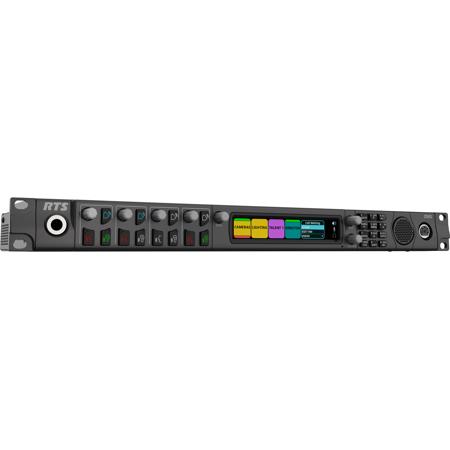

RTS Intercom Systems OMS OMNEO Main Station Analog Plus 4-Channel Digital Partyline Intercom System with 5F XLR Headset Connector

SKU: RTSOMSPLUS5F MFR: F.01U.385.328
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this RTS intercom system, perfect for live events.
  • Connect seamlessly using OMNEO ports, ensuring reliable digital partyline communication.
  • This 4-channel digital intercom base supports various headset connectors for flexibility.
  • Enjoy durable performance with a 3-year warranty, ideal for demanding audio environments.
  • Simplify setup with the user-friendly interface of this RTS main station intercom system.
  • Achieve superior sound quality with balanced operation, minimizing noise in your audio setup.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RTS Intercom Systems OMNEO Specifications

Main Station

Main Station

Jump to...
  • Analog Two-Wire

    4

  • 2w Loop Thru

    Yes

  • Program Inputs

    2

  • Stage Announce

    1

  • Gpi / Relay

    4 GPI / 4 relays

  • 2W Auto-Nulling

    Yes

  • Number of Conferences

    16

  • 2W Mixing / Routing

    Yes

  • Four-Wire AIO Ports No

    4 Ports

  • Audio Expansion (TIE LINES)

    8 Ports

  • Built-In Line Powering

    No

  • Max OMNEO Device Connections

    0

  • Digital Beltpacks Supported

    0

  • Roameo Beltpacks Supported

    0

  • Rvon Ports

    0

  • Kp Capacity

    4 (Analog Only)

  • Fiber Support

    No

  • AC Input

    100 VAC - 240 VAC, 60/50 Hz, 0.46 A / 0.24 A

  • Maximum Power Consumption

    30 W (based on 120 VAC)

  • Operating Temperature

    32 Degree F to -113 Degree F (0 Degree C to -45 Degree C)

  • Storage Temperature

    -4 Degree F to -158 Degree F (-20 Degree C to -70 Degree C)

  • Compliance

    CE compliant, UL certified, PSE

  • Dimension (W x H x D)

    19"(482.6mm) (17.56" (446.1mm) w/o rack ears) x 1.7 x 7.72" (43.7 x 196.1mm) (including connectors)

  • Weight

    5.29 lbs (2.4kg)

AIO 4-Wire Analog

Jump to...
  • Type

    Locking IEC 320 C14 style connector

  • Connectors

    4 RJ-45 connectors

  • Signal Format

    Differential RX/TX audio with differential RS-485 control data

  • Wiring Scheme

    Both 568B & USOC supported

  • A/D and D/A Resolution

    24 bits

  • Max Input Level (Balanced)

    +20 dBu w/o clipping

  • Input Frequency Response

    +1 dB/-3 dB from 100 Hz - +20 kHz

  • THD+N (8dBu input, unity gain)

    0.025% non-weighted@1 kHz
    <0.075% non-weighted, 100 Hz - +20 kHz

  • Nominal Input Impedance

    >22 k Ohm

  • Nominal Output Level

    8 dBu

  • Digital Output Gain

    Programmable (-20 dB - +20 dB)

  • Maximum Output Level (Balanced)

    20 dBu w/o clipping

  • Output Frequency Response

    +1 dB / -3 dB from 100 Hz - +20 kHz

  • Output Noise Floor

    <-65 dBu

  • Crosstalk Isolation

    >80 dB

  • PGM1 & PGM2

    3-Pin XLR-F

  • A/D Resolution

    24 bits

  • SA (Stage Announce)

    3-Pin XLR-M

  • D/A Resolution

    24 bits

  • Digital Input Gain

    Programmable (-20 dB - +20 dB)

2-Wire Party Line Analog

Jump to...
  • Connector

    Four 3-pin female XLR connectors

  • Modes/Port supported

    RTS CH1, RTS CH2
    Audiocom (4 channel)
    Clear-Com (4 channel)

  • 4W/2W Echo Return Loss

    >45 dB

Unbalanced Operation (RTS/Clear-Com)

Jump to...
  • Expected Termination Impedance

    200 Ohm

  • Noise Contribution

    <-70 dBu

  • THD+N (w/ Nominal Input)

    <0.5%, 200 Hz - 7.3 kHz

  • Bridging Impedance

    >10 k Ohm

  • CALL Signaling

    20 kHz (RTS mode)
    12 VDC (Clear-Com mode)

  • MIC KILL Signaling

    24 kHz (RTS mode)

Balanced Operation (Audiocom)

Jump to...
  • Expected Termination Impedance

    300 Ohm

  • Noise Contribution

    <-70 dBu

  • THD+N (with Nominal Input)

    <0.5%, 200 Hz - 7.3 kHz

  • Bridging Impedance

    >10 k Ohm

  • CALL Signaling

    20 kHz (Audiocom mode)

  • MIC KILL Signaling

    24 kHz (Audiocom mode)

Relays (4 Relays)

Jump to...
  • Type

    SPDT

  • Contacts

    Common (C)
    Normally Closed (NC)
    Normally Open (NO)

  • Contact Rating

    1A @ 48 VDC

Inputs (4 Inputs)

Jump to...
  • Type

    Optically Coupled

  • Input Voltage

    5 VDC - 12 VDC on A+

Control Port

Jump to...
  • Connector

    RJ-45

  • Format

    IEEE 802.3 compliant

  • Speed

    10/100/1000 Mbps

  • LEDs

    Speed and Link/Activity

OMNEO Port (Primary and Secondary)

Jump to...
  • Maximum Capacity

    48 Full-duplex ports

  • Copper Connector Type

    RJ-45

  • Format

    IEEE 802.3 compliant

  • Copper Ethernet Speed

    100/1000 Mbps

  • LEDs

    Speed and Link/Activity

  • LEDs

    Speed and Link/Activity

  • Fiber Connector Type

    Small Form
    Factor Pluggable (SFP)

  • Multimode

    Finisar FTLF8519P3BNL
    500m / 2.125Gbps

  • Single Mode

    Finisar FTLF1421P1BTL
    15km / 2.67Gbps

  • Fiber Speed

    100/1000Mbps

  • LED Indicator

    Optical Signal Present

  • UPC Code

    800549972819

About RTS Intercom Systems OMNEO

When it comes to advanced intercom systems, the OMS OMNEO Main Station Analog Plus 4-Channel Digital Partyline Intercom System with 5F XLR Headset Connector stands out as a revolutionary product in the RTS Digital Partyline series. This robust system is designed to bridge the gap between legacy analog partyline users and digital functionality, enabling seamless migration without the need to replace existing equipment.

The OMS OMNEO Main Station is not just an intercom system; it's a versatile communication multi-tool, ideal for a wide array of settings including theaters, houses of worship, industrial sites, broadcast studios, and event venues. It's designed to interconnect with a range of digital matrix products, including keypanels, ROAMEO wireless, and digital beltpacks, using the innovative OMNEO architecture. This approach allows for the exchange of information such as audio content or device control, making it a comprehensive solution for all your communication needs.

The OMS system is available in five licensed models, each offering increased capacity and functionality to meet growing business needs. It features an intuitive RTS digital icon-based front panel display and a simplified menu structure for easy system configuration and control.

The OMS system supports 4 ports of analog AIO 4-wire and 4 ports of analog 2-wire, with auto nulling capability available on 2-wire interfaces. It can support up to 40 OMNEO or ROAMEO beltpacks and up to 16 partylines, with Ethernet connectivity available through copper or fiber connections.

The compact 1RU enclosure of the OMS system allows for easy mounting in a standard rack. It's designed to operate at an ambient temperature of up to 45 degrees Celsius, thanks to its built-in forced air circulation cooling system.

The front panel of the OMS system features a color display capable of displaying detailed information about the unit, two rotary encoders with push-function, a full numeric keypad with backlight, channel controls, mic, and speaker. The active area of the display is 120 mm x 19 mm, with a resolution of 4.7 pixels per mm and the ability to reproduce a minimum of 65536 colors.

The OMS system also features a front-panel headset XLR connector with optional genders, a built-in front speaker for listening to audio communication, and a range of rear features including power connectors, two-wire connectors, program inputs, stage announcement output, four-wire audio ports, and a general-purpose input/output.

In conclusion, the OMS OMNEO Main Station Analog Plus 4-Channel Digital Partyline Intercom System with 5F XLR Headset Connector is a comprehensive, versatile, and easy-to-use solution for all your communication needs.

RTS Intercom Systems OMNEO Features

  • Supports up to 40 OMNEO or ROAMEO belt packs and up to 16 party lines. Ethernet connectivity through copper or fiber connections available
  • Supports 4 ports of analog AIO 4-wire and 4 ports of analog 2-Wire (RTS / Audiocom / Clear-Com formats supported). Auto nulling capability (echo cancellation) available on 2-Wire interfaces
  • Supports up to 8 keypanels (any mix of analog/OMNEO/RVON) depending upon product licensing (Maximum 4 analog)
  • Up to 4 RVON channels available with the Advanced license for remote networking with other RVON capable equipment. G.711, G.729ab and G.722 codecs supported
  • Includes stage announce output and additional OMNEO expansion audio ports reserved for connecting and networking with other OMS units. These expansion ports allow additional system capacity and partyline capability as part of a distributed system

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this RTS intercom system, perfect for live events.
  • Connect seamlessly using OMNEO ports, ensuring reliable digital partyline communication.
  • This 4-channel digital intercom base supports various headset connectors for flexibility.
  • Enjoy durable performance with a 3-year warranty, ideal for demanding audio environments.
  • Simplify setup with the user-friendly interface of this RTS main station intercom system.
  • Achieve superior sound quality with balanced operation, minimizing noise in your audio setup.

What's in the box:

  • RTS OMS OMNEO Main Station Analog Plus 4-Channel Digital Partyline Intercom Base
  • RTS 3 Year Limited Warranty
